SMAJ75-T3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMAJ75-T3

SMAJ75-T3: DescriptionTrans Voltage Suppressor Diode, 400W, 75V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size293KB，5 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

SMAJ75-T3 Overview

Trans Voltage Suppressor Diode, 400W, 75V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AC, PLASTIC, SMA, 2 PIN

SMAJ75-T3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	101.81 V
Minimum breakdown voltage	83.3 V
Breakdown voltage nominal value	92.555 V
Maximum clamping voltage	134 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	75 V
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

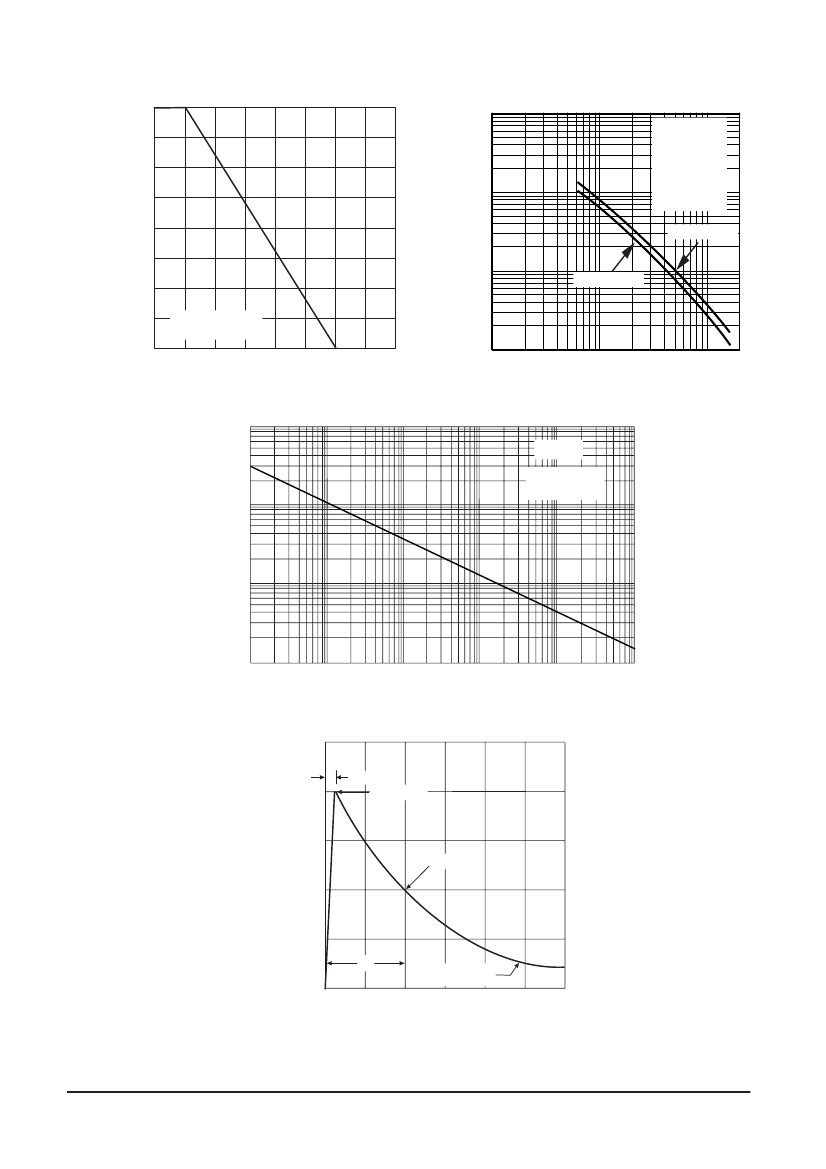

Preview

Download Datasheet

View All

!! "

#$$

'( )" & *

+ , -)

. /#0+))& *

! , "1$2

$ %&'224235

SMA/DO-214AC

Dim Min Max

2.50 2.90

4.00 4.60

1.40 1.60

0.152 0.305

4.80 5.28

2.00 2.44

0.051 0.203

0.76 1.52

In mm

Min

Max

0.098 0.114

0.157 0.181

0.055 0.063

0.006 0.012

0.189 0.208

0.079 0.096

0.002 0.008

0.030 0.060

In inch

45'

2$6% 0! .

- )4 7 &

.80$

$7. /669

*4 / / : /

."4

"/ 49");(<

./(0& %

1"21&1 " "*

./(03+ 4/4(56!

1"26 "%!6!(3+ 85

1"21& , ,,,97"' 3+ 56!/

"%;"1 " 3+

<"!"% "!*""!

400

*":&

$(( = (,

!"#$% "& '

!"()* &" '

+ !" ,)* &" '

+ $'&46!8"%%"%": '*

./(06!/

/ % (, "% " "&

8>8!& "&$"'%;;&.

?"%""@(0.*

(1"2& "' , ,,,9
