IDT74FCT191D datasheet, PDF - EEWORLD Datasheet

IDT74FCT191D: DescriptionBinary Counter, FCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16, 0.300 INCH, CERDIP-16; Categorylogic logic; File Size191KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

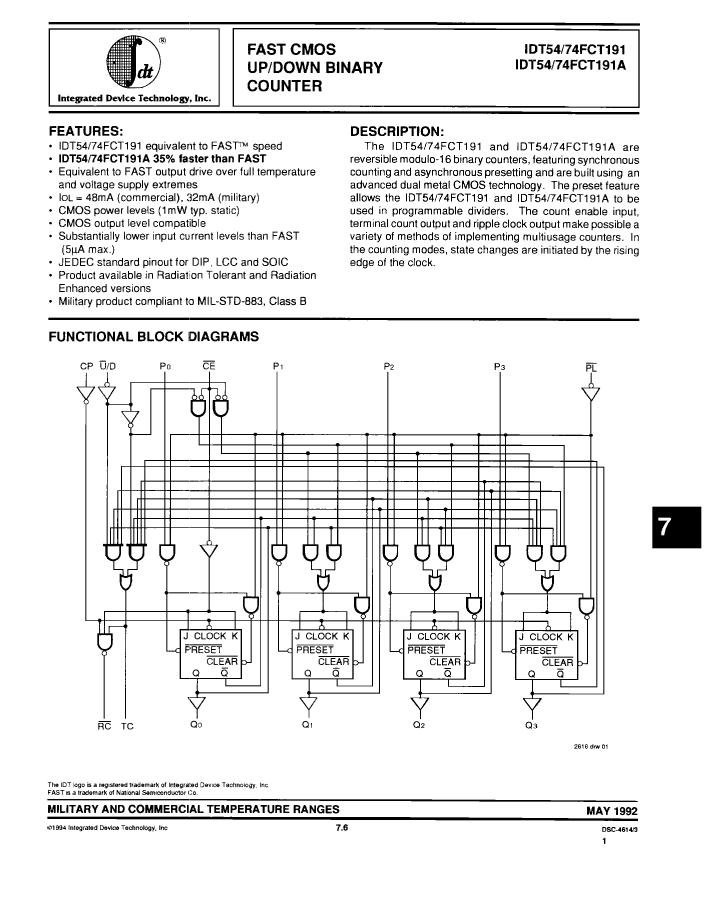

IDT74FCT191D Overview

Binary Counter, FCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16, 0.300 INCH, CERDIP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
Other features	TCO OUTPUT
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	20.066 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	100000000 Hz
MaximumI(ol)	0.048 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1

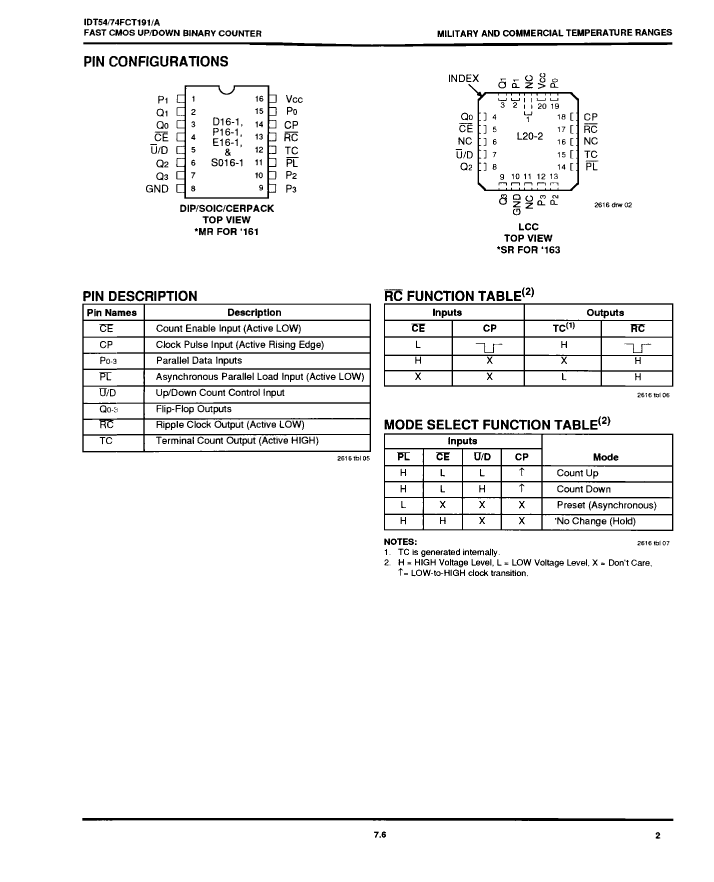

Number of terminals	16

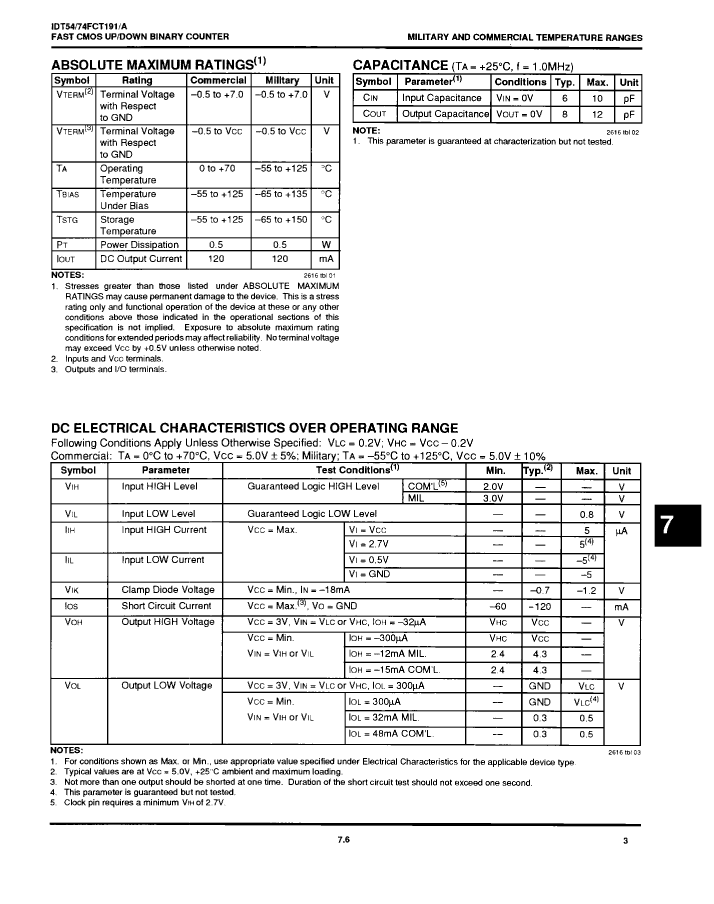

Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225

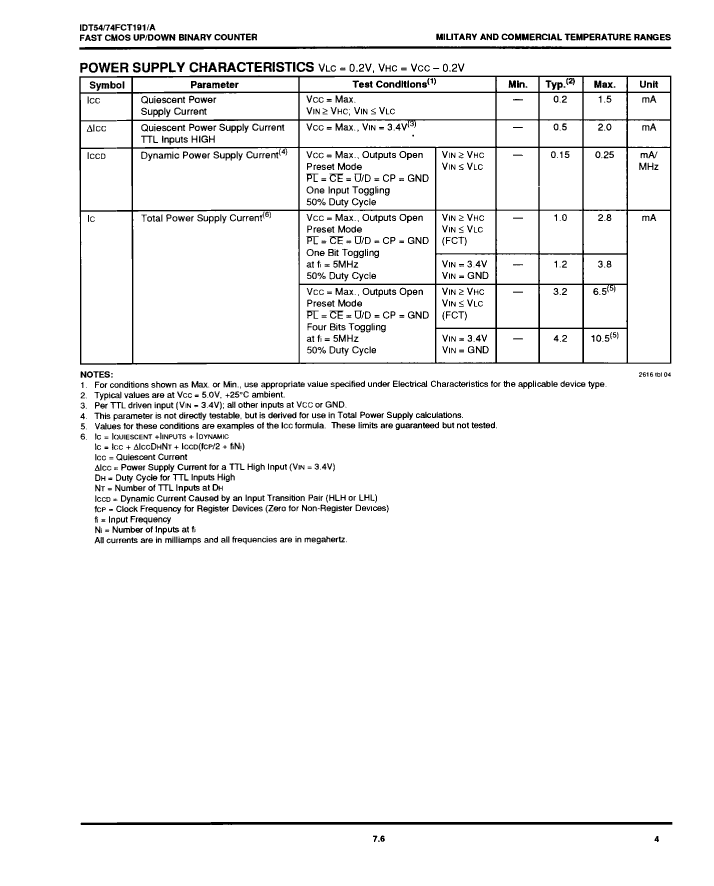

power supply	5 V

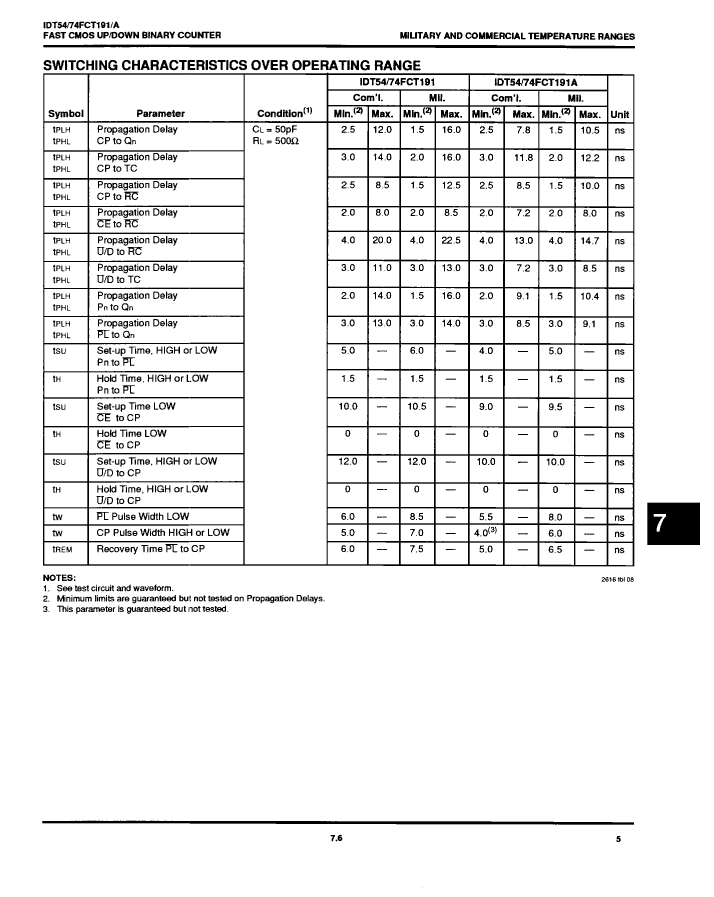

Prop。Delay @ Nom-Sup	12 ns
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
Trigger type	POSITIVE EDGE
width	7.62 mm
