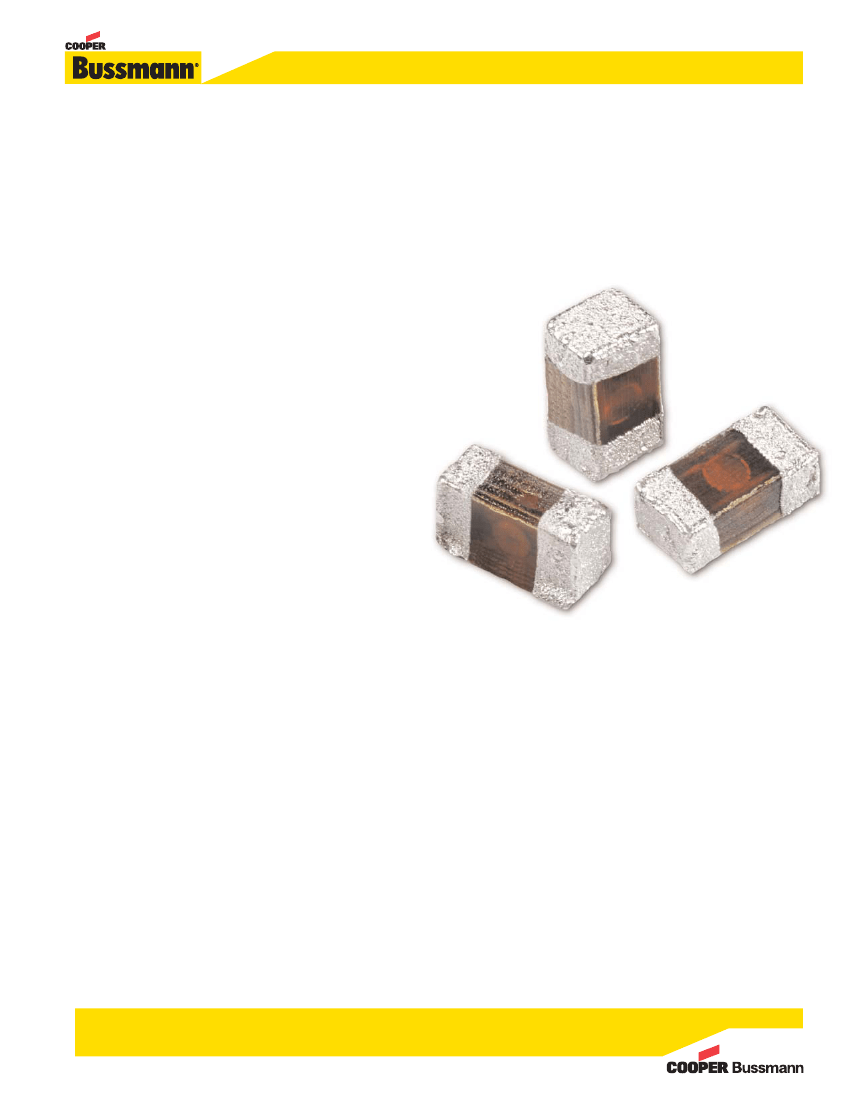

Protect High Speed Data
Circuits from ESD Damage
without Distorting Data
Introducing the PS04LTVA1
Low Trigger Voltage ESD Suppressor
in a Discrete 0402 SMD Device
• Maintains Signal Integrity
The ultra-low capacitance (0.05pF typical) leaves high speed
data circuits untouched so ICs can function as designed.
• Protects ICs from ESD Damage
Low trigger and clamping voltage delivers enhanced ESD
protection of very sensitive ICs.
The polymer based Voltage Variable Material reacts in less than
1ns to suppress damaging ESD strikes away from the IC
allowing for continued operation.
• Provides Long Lasting Protection
The robust design withstands over 1000 ESD strikes under
normal operating conditions, allowing continued protection
over the lifetime of the product.
• Space Savings
The discrete 0402 SMD design saves precious PCB space while
giving designers flexibility in device placement for superior
ESD protection schemes.
• High, Reliable Performance
Tested to meet automotive specifications
(AEC-Q200 Rev C standard for MLV).
• Environmentally Friendly
Cooper Bussmann offers ESD suppressors that are RoHS
compliant, and halogen free, making them a great choice for
any global application.
PS04LTVA1 Specifications
Catalog Symbols: PS04LTVA1
Packaging:
10,000 per Reel
Technology:
Polymer Voltage Variable Material
ESD Suppressor
Electrical Characteristics:
• Working Voltage:
• Clamp Voltage:
• Trigger Voltage
5Vdc Typical
25V Typical
150V Typical
0.15pF Maximum
• Attenuation Change:
-0.2dB Typical (0-6GHz)
HF
FREE
HALOGEN
Pb
• Capacitance @ 1MHz: 0.05pF Typical
Ideal for protecting high speed data ports.
• USB 2.0/3.0
• IEEE 1394b
• HDMI 1.3
• DVI
• High speed ethernet
• Test probe I/O ports
• Controller I/O ports
• ESD Pulse Withstand: >1000 Pulses Typical
ESD Capability:
• IEC61000-4-2 Direct Discharge: 8kV
• IEC61000-4-2 Air Discharge: 15kV

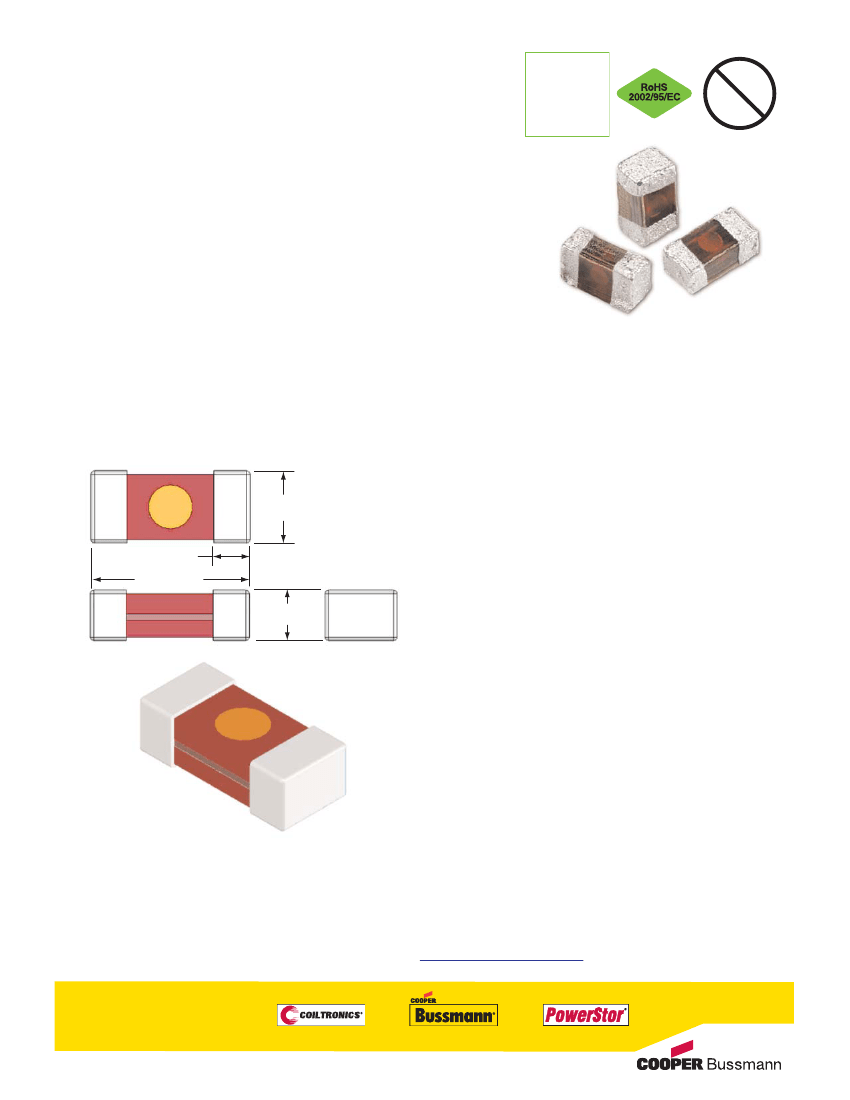

Product Dimensions - in (mm)
Typical Applications:
0.021 ± 0.003
(0.530 ± 0.076)
0.010 ± 0.004
(0.250 ± 0.100)
0.043 ± 0.004
(1.100 ± 0.100)
0.014 ± 0.003
(0.360 ± 0.076)
• Computers and peripherals
• HDTV Equipment
• DVD Players
• A/V Equipment
• Satellite radio
• Cell phones
• PDAs
• Digital still cameras
• Digital camcorders
• MP3/Multimedia players
• Set top boxes
• External storage
• DSL Modems
• LCD TV / Monitor
• Game consoles
• Medical equipment
Design Considerations:
The location in the circuit has to be carefully determined. For
better performance, the device should be placed as close to
the signal input as possible and ahead of any other
component. Due to the high current associated with an ESD
event, it is recommended to use a “0-stub” pad design (pad
directly on the signal/data line and second pad directly on
common ground).
Order samples online -
www.cooperbussmann.com
©2010 Cooper Bussmann
www.cooperbussmann.com
Reorder # 3161
0510
PDF only
