PLP1-350BE

Description
Optical Pipe,
CategoryLED optoelectronic/LED    photoelectric
File Size114KB,2 Pages
ManufacturerBivar
Download Datasheet Parametric View All

PLP1-350BE Overview

Optical Pipe,

PLP1-350BE Parametric

Parameter NameAttribute value
MakerBivar
Reach Compliance Codeunknown
Optoelectronic device typesOPTICAL PIPE
Part No.
PLP1-100
PLP1-125
PLP1-175
PLP1-188
PLP1-200
PLP1-250
PLP1-313
PLP1-350
PLP1-375
PLP1-460
PLP1-500
PLP1-625
PLP1-750
PLP1-3MM
PLP1-4MM
PLP1-5MM
PLP1-6MM
PLP1-7MM
PLP1-8MM
PLP1-9MM
PLP1-10MM
X = Body Length
0.100 ( 2.5mm )
0.125 ( 3.2mm )
0.175 ( 4.4mm )
0.188 ( 4.8mm )
0.200 ( 5.1mm )
0.250 ( 6.4mm )
0.313 ( 7.9mm )
0.350 ( 8.9mm )
0.375 ( 9.5mm )
0.460 ( 11.7mm )
0.500 ( 12.7mm )
0.625 ( 15.9mm )
0.750 ( 19.0mm )
3mm ( 0.118" )
4mm ( 0.157" )
5mm ( 0.197" )
6mm ( 0.236" )
7mm ( 0.276" )
8mm ( 0.315" )
9mm ( 0.354" )
10mm ( 0.394" )
REV.
DESCRIPTION
DATE
APPROVED
M
P
Q
R
T
Added .175" and .200" Lengths To Offering List.
Added Panel Thicknes.
Added .100", .188", .313" Lengths to Offering List.
Added Metric Lengths to Offering List.
Added Color Options, Sheet #2.
02/27/14
05/01/15
05/27/15
07/15/15
02/02/16
J. C.
J. C.
J. C.
J. C.
J. C.

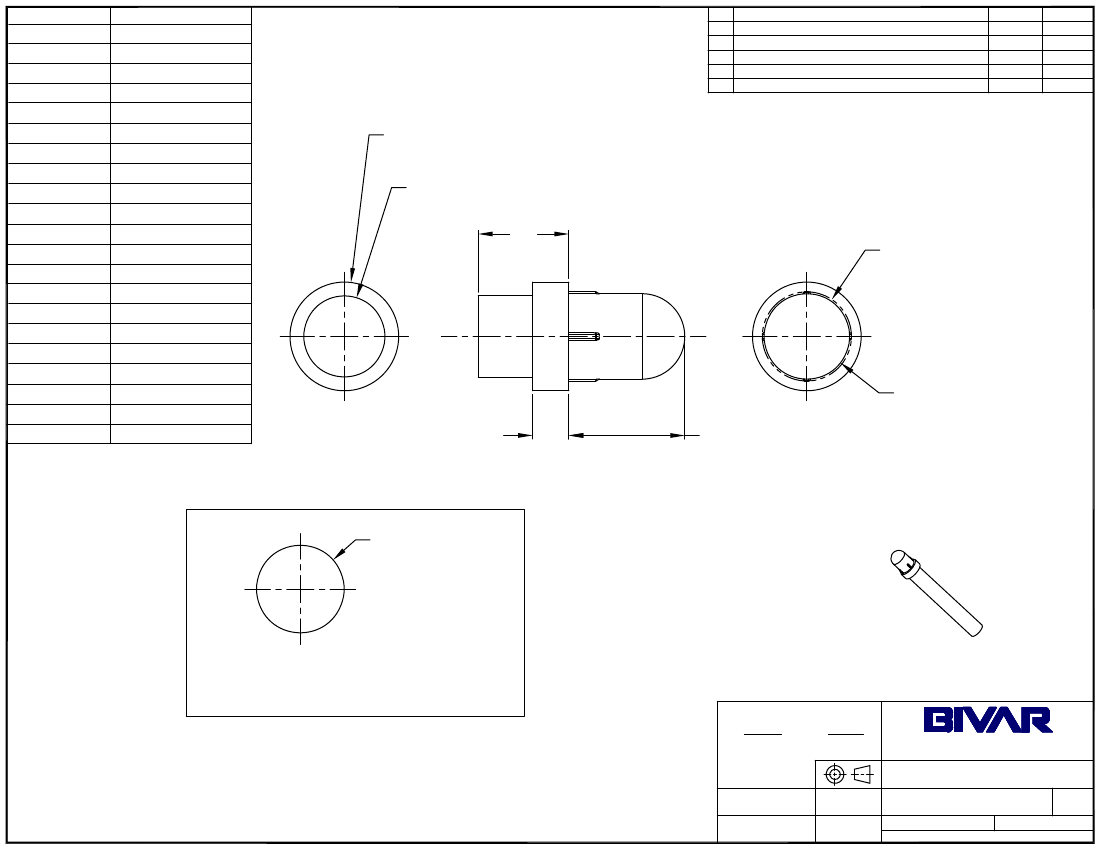

Ø0.150 [Ø3.8mm]
FLANGE
Ø0.112 [Ø2.8mm]
X
Ø0.123 [Ø3.1mm]
REF.
Ø0.118 [Ø3.0mm]
LIGHT PIPE
0.050 [1.3mm]
0.160 [4.1mm]
Ø0.121+.003
-.002
Recommended Mounting Hole
Panel Thickness: 0.047"-0.093"
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
2. MATERIAL: POLYCARBONATE, 94V-0, CLEAR.
1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101
and BSMC-1001.
.X
.XX
.XXX
DESIGNED:
± .1
± .01
± .005
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
DATE:
PRESS-FIT, PANEL MOUNT,
LIGHT PIPE, ROUND TOP
REVISION:
PART NO:
Michael Chen
CHECKED:
01/16/02
DATE:
PLP1-XXX
T
E. M. Muldoon
04/26/02
CAGE CODE : 32559
SHEET #
1
OF
2
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
