MN5245 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MN5245

MN5245: DescriptionADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40; CategoryAnalog mixed-signal IC converter; File Size848KB，9 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MN5245 Overview

ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40

MN5245 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog input voltage	6 V
Minimum analog input voltage	-1 V
Maximum conversion time	0.85 µs
Converter type	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
length	53.215 mm
Maximum linear error (EL)	0.024%
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY, OFFSET BINARY
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Sampling rate	1.1 MHz
Maximum seat height	5.512 mm
Maximum slew rate	165 mA
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

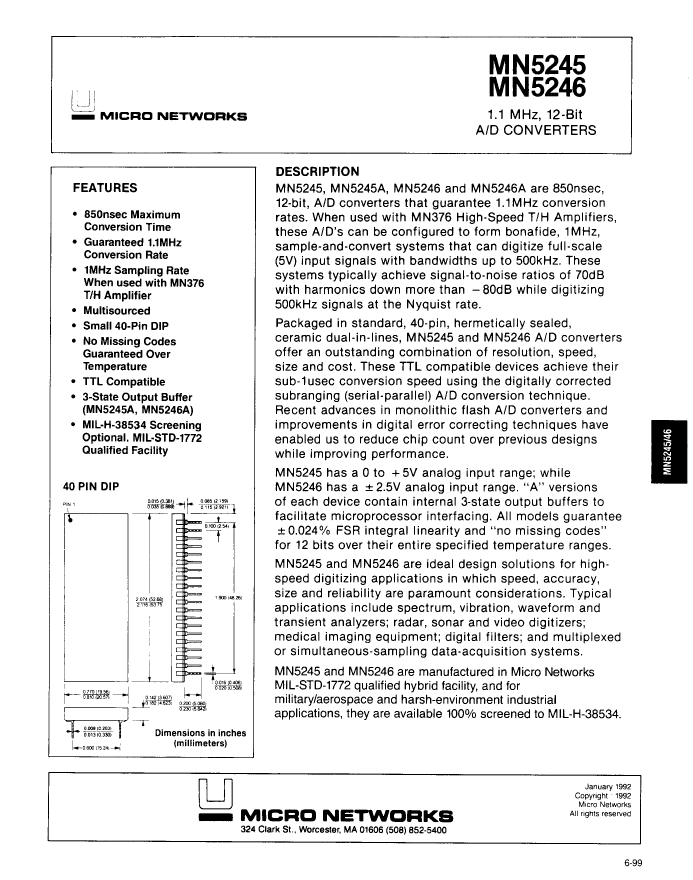

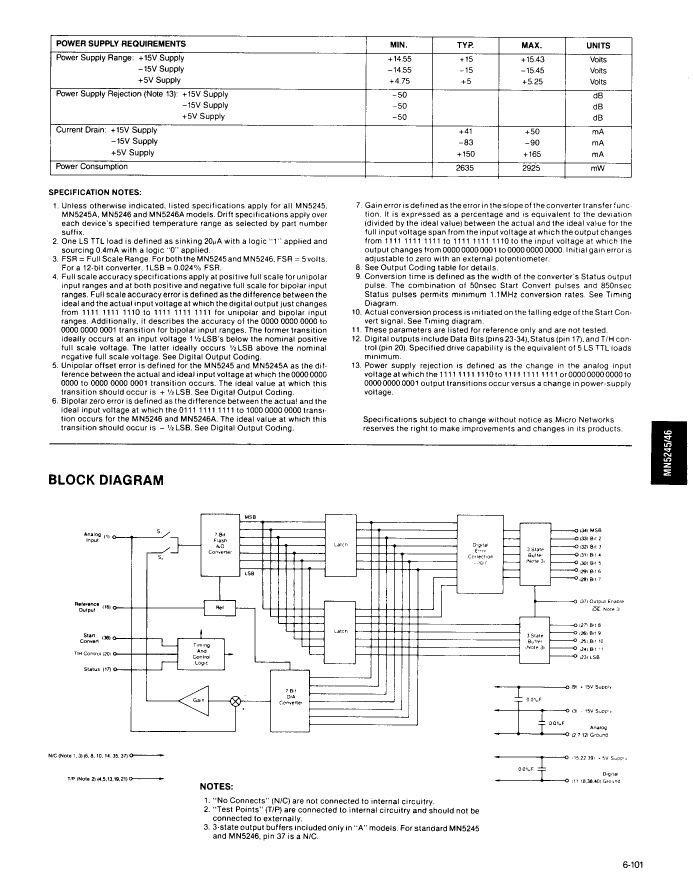

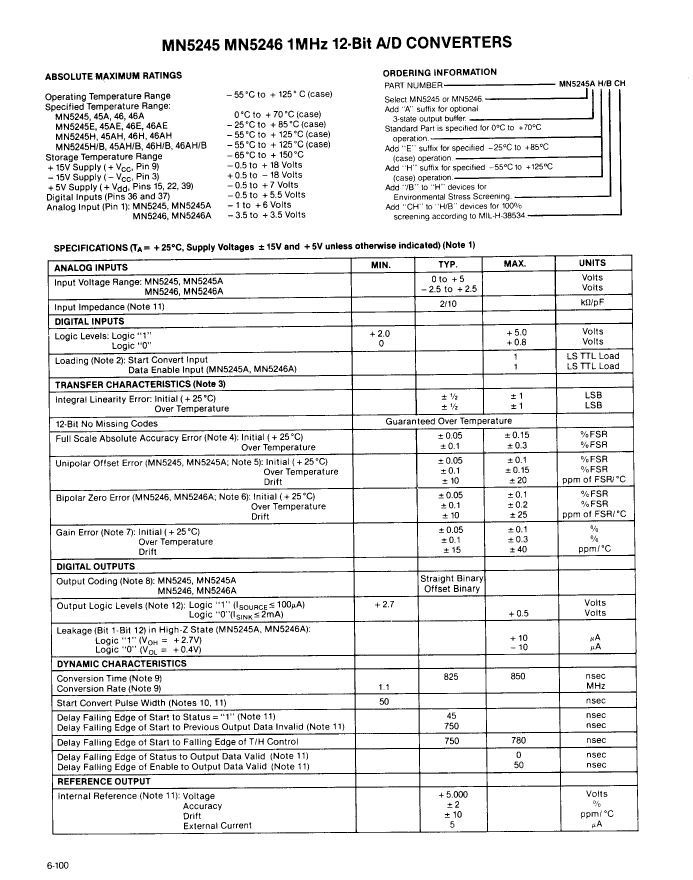

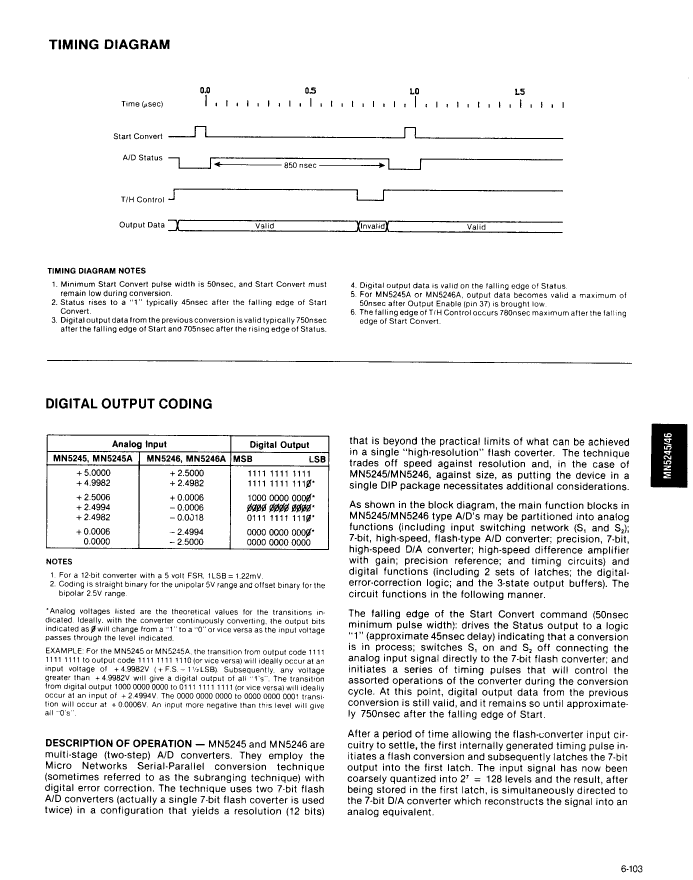

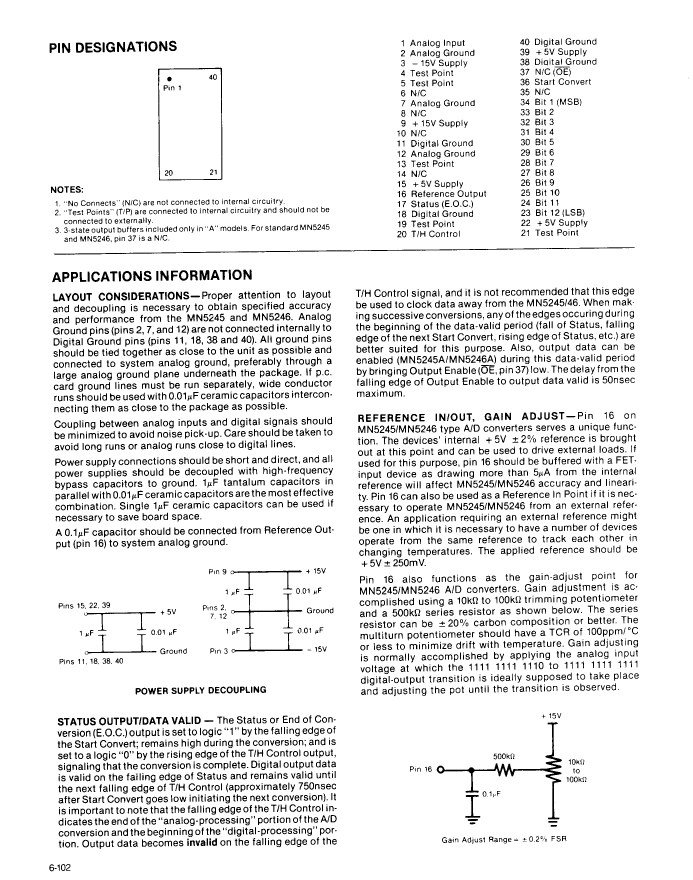

Preview

Download Datasheet

View All

MN5245 Related Products

	MN5245	MN5246H/B	MN5246H/BCH	MN5246E	MN5246H	MN5245H/BCH	MN5245H/B	MN5246	MN5245E	MN5245H
Description	ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40	ADC, Flash Method, 12-Bit, 1 Func, Parallel, 8 Bits Access, Hybrid, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Contacts	40	40	40	40	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	3A001.A.2.C	3A001.A.2.C	EAR99	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	EAR99	EAR99	3A001.A.2.C
Maximum analog input voltage	6 V	3.5 V	3.5 V	3.5 V	3.5 V	6 V	6 V	3.5 V	6 V	6 V
Minimum analog input voltage	-1 V	-3.5 V	-3.5 V	-3.5 V	-3.5 V	-1 V	-1 V	-3.5 V	-1 V	-1 V
Maximum conversion time	0.85 µs	0.85 µs	0.85 µs	0.85 µs	0.85 µs	0.85 µs	0.85 µs	0.85 µs	0.85 µs	0.85 µs
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	53.215 mm	53.215 mm	53.215 mm	53.215 mm	53.215 mm	53.215 mm	53.215 mm	53.215 mm	53.215 mm	53.215 mm
Maximum linear error (EL)	0.024%	0.024%	0.024%	0.024%	0.024%	0.024%	0.024%	0.024%	0.024%	0.024%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40	40	40	40	40
Maximum operating temperature	70 °C	125 °C	125 °C	85 °C	125 °C	125 °C	125 °C	70 °C	85 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-25 °C	-55 °C	-55 °C	-55 °C	-	-25 °C	-55 °C
Output bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	1.1 MHz	1.1 MHz	1.1 MHz	1.1 MHz	1.1 MHz	1.1 MHz	1.1 MHz	1.1 MHz	1.1 MHz	1.1 MHz
Maximum seat height	5.512 mm	5.512 mm	5.512 mm	5.512 mm	5.512 mm	5.512 mm	5.512 mm	5.512 mm	5.512 mm	5.512 mm
Maximum slew rate	165 mA	165 mA	165 mA	165 mA	165 mA	165 mA	165 mA	165 mA	165 mA	165 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	MILITARY	MILITARY	OTHER	MILITARY	MILITARY	MILITARY	COMMERCIAL	OTHER	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
