SR-2MIN-A-L-TL-26 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> SR-2MIN-A-L-TL-26

SR-2MIN-A-L-TL-26: DescriptionRF Coaxial Relay, SPDT, Latched, 4945mW (Coil), 26500MHz, AC Input, AC Output, Panel Mount, MINIATURE PACKAGE; CategoryMechanical and electronic products relay; File Size95KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

SR-2MIN-A-L-TL-26 Overview

RF Coaxial Relay, SPDT, Latched, 4945mW (Coil), 26500MHz, AC Input, AC Output, Panel Mount, MINIATURE PACKAGE

SR-2MIN-A-L-TL-26 Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
package instruction	MINIATURE PACKAGE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA, BUILT-IN TTL DRIVER
body width	12.7 mm
Body length or diameter	34.04 mm
Characteristic impedance	50 Ω
Coil current (AC) maximum value	0.043 A
Coil power	4945 mW
Maximum coil voltage (AC)	115 V
Coil/Input Power Type	AC
Contact/Output Power Type	AC
Electrical life	1000000 Cycle(s)
Maximum insertion loss	0.5 dB
Maximum isolation	60 dB
Manufacturer's serial number	SR
Installation features	PANEL MOUNT
Maximum operating frequency	26500 MHz
Minimum operating frequency
Relay action	LATCHED
Relay function	SPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	15 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

Miniature Coaxial Switches

This RLC Electronics' Miniature Coaxial Switch is a single

pole, two position type. The switch provides extremely high

reliability, long life and excellent electrical performance

characteristics over the frequency range of DC-65 GHz.

The miniature package utilizes high density packaging tech-

niques, hence the overall volume of the switch is less than 3/4

cubic inch.

Specifications

-2

Switch Type

Frequency Range

Frequency (GHz)

Insertion Loss (Max dB)

VSWR (Max)

Isolation (Min)

DC-4.0

0.1

1.2:1

DC-18.0 GHz

4.0-12.4

0.2

1.3:1

12.4-18.0

0.3

1.5:1

MIN

2-3-4-5-6-7-8

SINGLE POLE TWO POSITION

26.5 GHz Opt

18-26.5

0.5

1.5:1

DC-6

0.2

1.3:1

40.0GHz Option

6-12

0.4

1.4:1

12-18

0.5

1.5:1

18-26.5

0.7

1.7:1

26.5-40

0.9

1.9:1

50.0GHz Opt.

40-50

1.1

1.9

65.0GHz Opt.

50-65

1.1

1.9

Power Rating, RF Cold Switching:

See page 5.

Impedance:

50 Ohms

Operating Power 25°C:

(Failsafe):

12Vdc at 250 ma nom.

28Vdc at 140 ma nom. 115 Vac at 50 ma nom.

(Latching):

12 Vdc at 120 ma nom. 28 Vdc at

60 ma nom. 115 Vac at 43 ma nom. Current applied

10 ms min. cutthroat circuitry(standard),

recovery time 100 ms nom.

Connectors, RF:

SMA Female (40 GHz - 2.92 mm)

(50 GHz - 2.4 mm) (65 GHz - 1.85 mm)

Connectors, Power:

Feed through solder lugs.

Life:

1,000,000 operations.

Switching Time:

15 mS Max.

Weight:

2 oz.

Environmental Conditions:

MIL-S-3928

Operating Mode:

Manual, failsafe or latching.

Switching Sequence:

Break before make.

To designate the switch desired use:

(1) “M” for Manual, “R” for Remote.

(2) “Min” for outboard mountings or “Minin”

for inboard mountings.40 GHz is inboard only.

(3) “A” for 115 Vac, “D” for 28 Vdc or “H” for 12 Vdc.

(4) “I” for indicators if desired.

(5) “L” for latching cutthroat if desired.

(6) “TL” for TTL Driver if desired

(7) “26” for 26.5 GHz option., “40” for 40 GHz option,

“50” for 50 GHz option, “65” for 65 GHz option

(8) “Arc” for Arc Suppression diodes (N/A with TTL

and Latching)

Example: SR-2 MIN-D is a remote, outboard mounting, 28 Vdc; Failsafe switch, for DC to 18 GHz use.

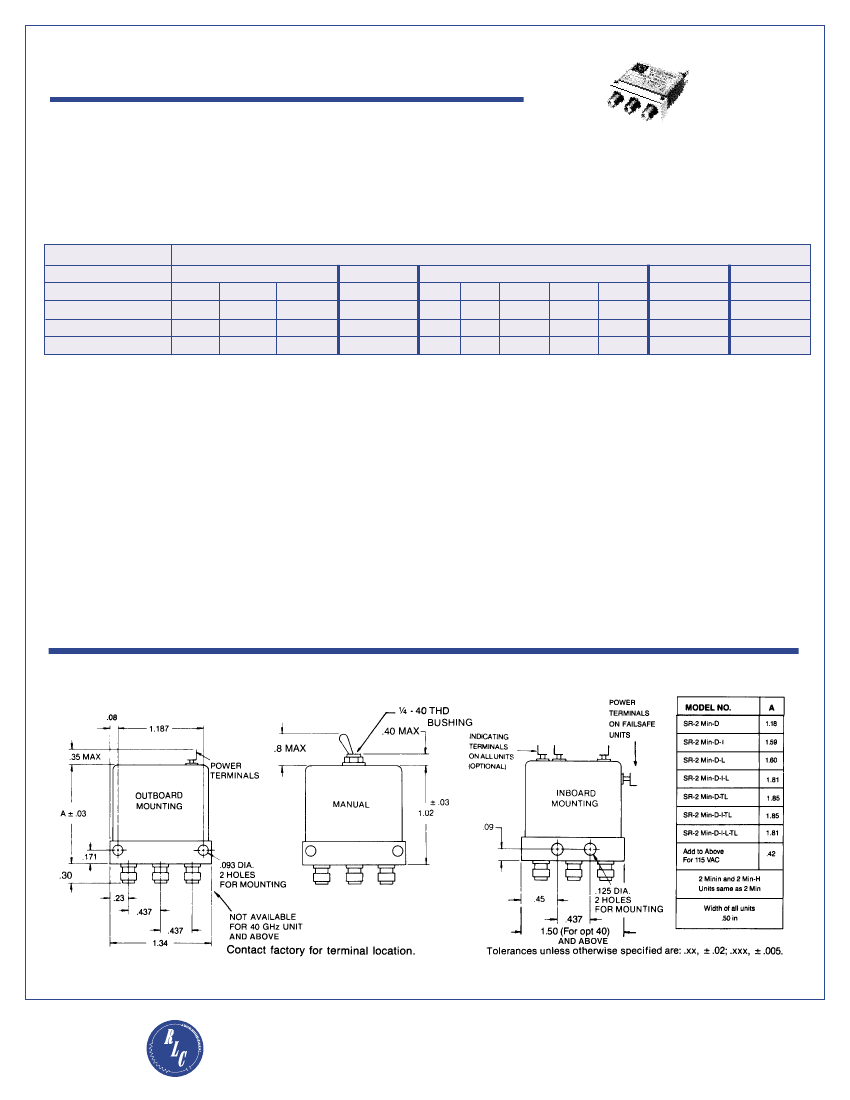

Outline Drawing

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com
