BMMV58K1N24B12/18C0F datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BMMV58K1N24B12/18C0F

BMMV58K1N24B12/18C0F: DescriptionRotary Position Encoder; CategoryLED optoelectronic/LED photoelectric; File Size146KB，4 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric Compare View All

BMMV58K1N24B12/18C0F Overview

Rotary Position Encoder

BMMV58K1N24B12/18C0F Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	ROTARY POSITION ENCODER
Base Number Matches	1

Preview

Download Datasheet

View All

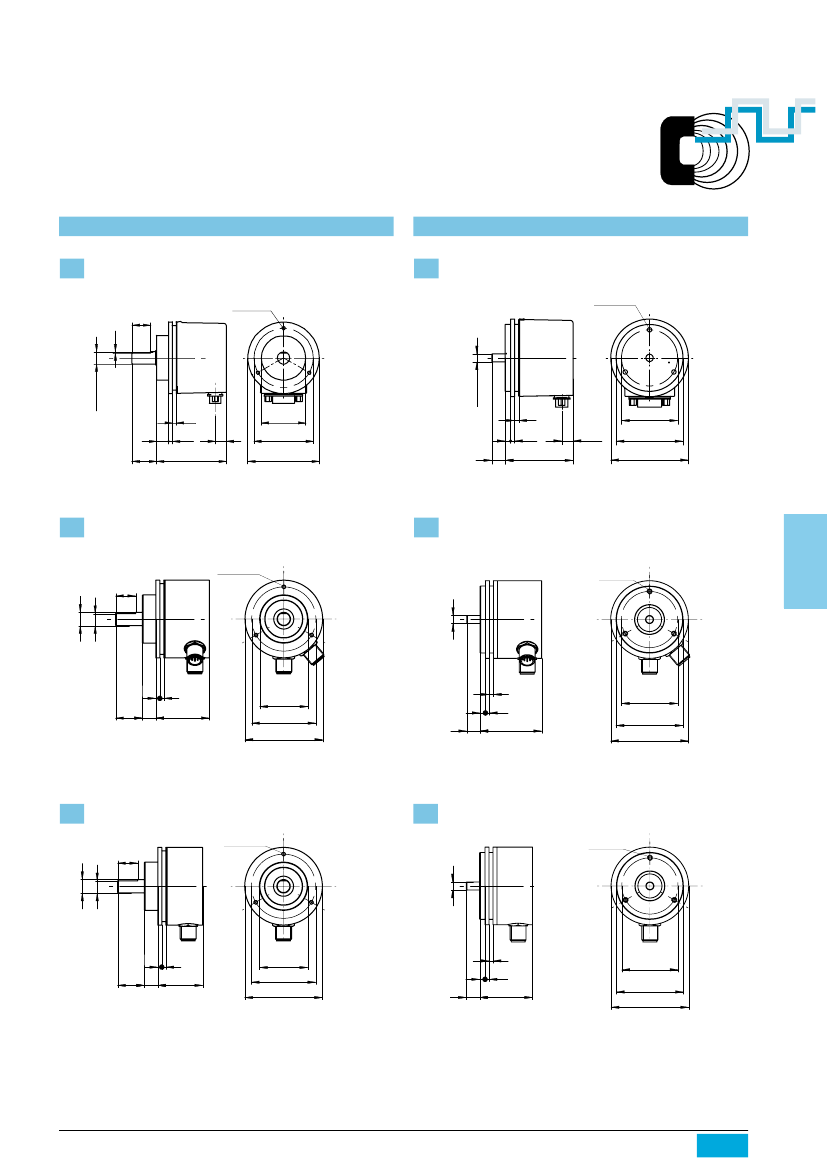

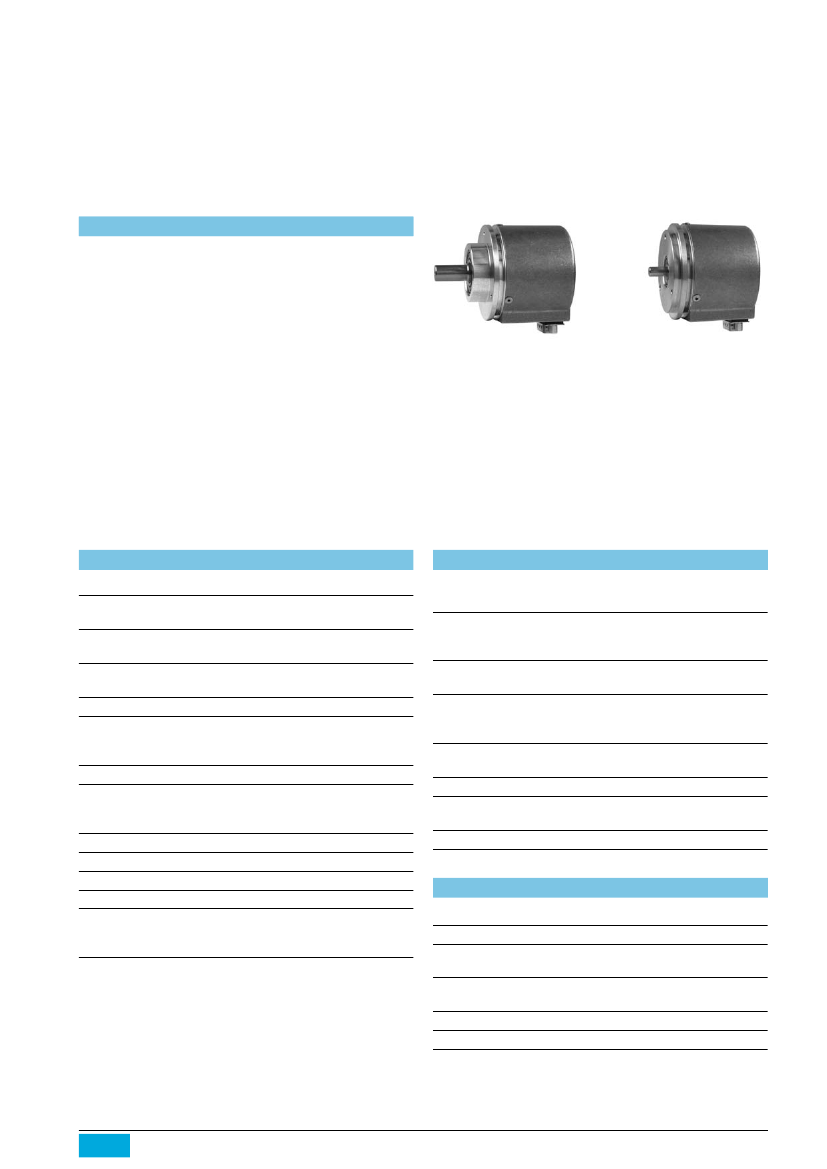

Magnetic absolute multi-turn shaft encoder

BMMV –

MAGRES

CANopen

features

•

multi-turn encoder / CANopen

magnetic sensing principle

resolution: single-turn 12 bit and multi-turn 18 bit

high resistance against shock and vibration

integrated fieldbus

resolution and zero point programmable

clamping flange or servo flange

58K

58S

general data

voltage supply

max. supply current

no load

output circuit

protocol/profile

specification

operating modes

10 - 30 VDC

typ. 100 mA (at 24 VDC)

CAN-Bus, standard

ISO/DIS 11898

CANopen/CIA, DS-301 V4.01,

DSP-305 V1.0, DS-406 V3.0

CAN 2.0B

Event-triggered / Time-triggered

Remotely-requested

Sync (cyclic) / Sync (acyclic)

natural binary-code

12 bit (1 step = 5'16'')

18 bit (262'144 revolutions)

±1°

0.3°

1 Mbit/s

with Lithium cell typ. 19 years

looking at the flange, position

counts up as the shaft rotates

clockwise (CW), programmable

mechanical data

max. revolutions

moment of inertia

torque

max. shaft load

product life

max. protection class

material

weight

12'000 rpm (mech.)

6'000 rpm (electr.)

typ. 11,8 x 10

-7

kgm

typ. 17,8 x 10

-7

kgm

typ. 2,3 cNm

(3'000 rpm / 20 °C)

axial: 10 N

axial: 40 N

radial: 20 N

radial: 60 N

signal code

max. resolution

single-turn

multi-turn

max error limit

repeatability

max. baud rate

counter buffering

direction of rotation

depending on ambient conditions

(typ. 10

revolutions.)

IP 65

housing: steel

flange: aluminum

approx. 300 g

ambient conditions

temperature range

relative humidity

vibration

shock

noise immunity

emitted interference

-20...+85 °C

max. relative humidity 95%

IEC 60068-2-6

(

≤

300 m/s

/ 10 - 2'000 Hz)

IEC 60068-2-27

(

≤

1'000 m/s

/ 6 ms)

EN 61000-6-2

EN 61000-6-3

3.34

www.baumerelectric.com
