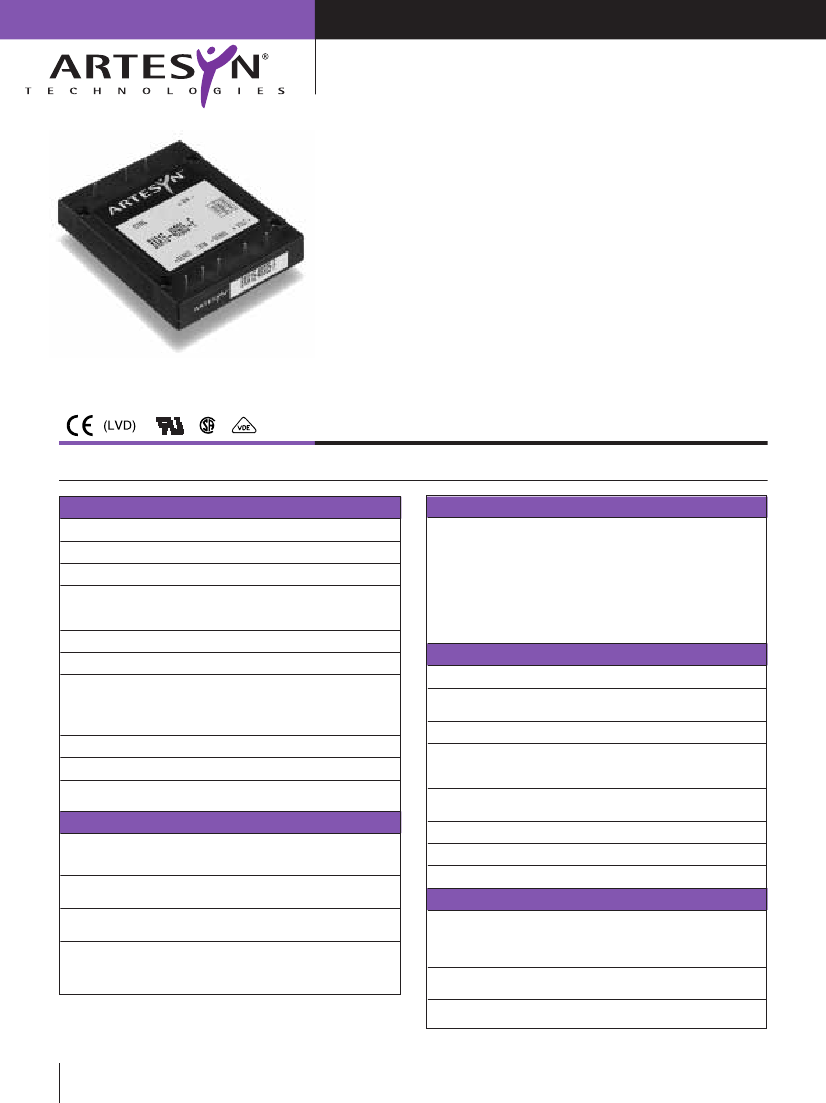

BXA15 SERIES
Single and dual output
• Pin-compatible with BXA30 series
• Designed to meet telecom power supply interface
standard ETS300-132-2
• UL, VDE and CSA safety approvals
• VDE0878 and EN55022 conducted emissions level A
• EN61000-4-2, -3, -4, -5, -6 compliant
• Fixed frequency operation at 350kHz
• MTBF in excess of 7,005,000 hours (demonstrated)
• Basic insulation system
The BXA15 Series, comprising 15 different models, has been conceived as an
applications specific range of DC/DC converters, specifically addressing
telecommunications, industrial electronics, test equipment, mobile
telecommunications and distributed power applications. The series offers three wide
input voltage ranges, 9-18VDC, 18-36VDC and 36-75VDC, and is available in single
and dual output versions. Designed to meet ETSI telecoms interface standards
ETS300-132-2 and BTR2511, together with internal filtering to EN55022 level A, safety
approval to EN60950 and UL1950, and isolation of 1500VDC, the 48VDC models are
ideal for telecommunications applications. The 12V and 24V models are particularly
suited to industrial, mobile telecom and test equipment applications, offering
EN61000-4-2, -3, -4, -5 and -6 immunity compliance. Other features include low
output ripple, overvoltage protection, continuous short circuit protection, remote
enable and remote sense.
[ 2 YEAR WARRANTY ]
SPECIFICATION
OUTPUT SPECIFICATIONS
Voltage adjustability
Line regulation
Load regulation
Ripple and noise
20MHz bandwidth
Temperature coefficient
Overvoltage protection
Short circuit protection
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
EMC CHARACTERISTICS
±10%
Conducted emissions
Radiated emissions
ESD air
ESD contact
Surge
Fast transients
Radiated immunity
Conducted immunity
EN55022, FCC part 15 (Note 4) Level A
EN55022, FCC part 15 (Note 5) Level B
VDE0878 (Note 4) (48V)
Level A
EN55022, FCC part 15
Level A
EN61000-4-2, level 3
Perf. criteria 2
EN61000-4-2, level 4
Perf. criteria 2
EN61000-4-5, level 3
Perf. criteria 2
EN61000-4-4, level 3
Perf. criteria 2
EN61000-4-3, level 3
Perf. criteria 2
EN61000-4-6, level 3
Perf. criteria 2
LL to HL (single/dual)
FL to NL (single/dual)
5.0V
All others
All models
±0.2%/±0.4%
±0.2%/±0.4%
60mV pk-pk
100mV pk-pk
20mV rms
±0.02%/°C
Transient
Singles
Duals (single short)
Duals (dual short)
135% Vout
Continuous
(See Design
Note 100)
Continuous
4.0%
±1.5%
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Basic insulation
Switching frequency
Approvals and
standards
(See Note 9)
Case material
Material flammability
Input/output
Input/case, 48V models
Fixed
See table
1500VDC
1500VDC
350kHz
VDE0805, EN60950
IEC950, UL1950, UL1459
CSA C22.2 No. 950
Aluminum substrate
with plastic case
UL94V-0
120g (4.24oz)
Demonstrated @ 25°C 7,005,000 hours
Transient response
Voltage accuracy
Load cross regulation
25% to 100% load
Dual output
30% to 100% output variation
3.0%
INPUT SPECIFICATIONS
Input voltage range
12Vin nominal
24Vin nominal
48Vin nominal
(See Note 6)
48V
ETS300-132
9 to 18VDC
18 to 36VDC
36 to 75VDC
Yes
5V/ms
Weight
MTBF (See Note 8)
Reverse voltage
protection
Max. input rise
and fall time
Remote ON/OFF
Logic compatibility
ON
OFF
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Baseplate operating
temperature
(See Notes 7)
Non-operating
Free air convection
(See Note 7)
-25°C to +100°C
-55°C to +100°C
6.5°C/W
5.2°C/W
CMOS/TTL
Open circuit
<1VDC
Thermal impedance
baseplate to air
Thermal impedance
with heatsink
PAGE 112
DC/DC CONVERTERS
|
15W DC/DC
15 Watt
Wide input DC/DC converters
INPUT
VOLTAGE
9-18VDC
9-18VDC
9-18VDC
9-18VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
18-36VDC
36-75VDC
36-75VDC
36-75VDC
36-75VDC
36-75VDC
36-75VDC
Notes
Nominal, at no load.
Low line to high line.
Full load to no-load. For duals, the value stated is for balanced loads.
An optional internal filter is available, which will meet VDE0871 level A,
VDE0878 level A and EN55022 level A. Add the suffix ‘-F’ to the model
number, e.g.
BXA15-48S12-F.
5 For conducted noise operation of the BXA30 to VDE0871, VDE0878 and
EN55022 level B, see BXA15 and BXA30 Design Note 100.
6 Reverse voltage protection can be implemented by putting a slow blow
fuse on the negative input rail. Rate the fuse for 48VDC at 1.5A; 24VDC at
3A; 12VDC at 6A.
7 The maximum operating ambient temperature, without derating depends
on internal power dissipation and hence efficiency and cooling method.
BXA15 and BXA30 Design Note 100 provides detailed thermal calculations
and design-in details.
8 Test results to-date are 1,590,000 hours @ 46˚C. The MTBF figure shown
includes a calculated acceleration factor of 4.1 based on an activation
energy of -0.55 eV.
9 This product is only for inclusion by professional installers within other
equipment and must not be operated as a stand alone product.
10 Visit the Artesyn website to download a copy of Design Note 100.
1
2
3
4
OUTPUT
VOLTAGE
5.0V
12.0V
15.0V
±12.0V
5.0V
12.0V
15.0V
±12.0V
±15.0V
5.0V
12.0V
15.0V
±5.0V
±12.0V
±15.0V
OUTPUT
CURRENT (MAX.)
3.0A
1.25A
1.0A
±0.625A
3.0A
1.25A
1.0A
±0.625A
±0.5A
3.0A
1.25A
1.0A
±1.5A
±0.625A
±0.5A
INPUT
CURRENT
(1)
100mA
100mA
100mA
100mA
60mA
60mA
60mA
60mA
60mA
35mA
35mA
35mA
35mA
35mA
35mA
TYPICAL
EFFICIENCY
80%
83%
85%
83%
80%
83%
85%
83%
85%
80%
84%
86%
80%
83%
85%
REGULATION
LINE
(2)
LOAD
0.2%
0.2%
0.2%
0.4%
0.2%
0.2%
0.2%
0.4%
0.4%
0.2%
0.2%
0.2%
0.4%
0.4%
0.4%
(3)
MODEL
NUMBER
BXA15-12S05
BXA15-12S12
BXA15-12S15
BXA15-12D12
BXA15-24S05
BXA15-24S12
BXA15-24S15
BXA15-24D12
BXA15-24D15
BXA15-48S05
BXA15-48S12
BXA15-48S15
BXA15-48D05
BXA15-48D12
BXA15-48D15
0.2%
0.2%
0.2%
0.4%
0.2%
0.2%
0.2%
0.4%
0.4%
0.2%
0.2%
0.2%
0.4%
0.4%
0.4%
PIN CONNECTIONS
PIN
NUMBER
1
2
3
4
5
6
7
8
SINGLE
OUTPUT
+ Vin
– Vin
+ Sense
Trim
– Sense
+ Vout
– Vout
Remote ON/OFF
DUAL
OUTPUT
+ Vin
– Vin
+ Vout
Common
– Vout
No Pin
No Pin
Remote ON/OFF
5
EXTERNAL OUTPUT TRIMMING
Single output models can be externally trimmed
by ±10% using either method shown below.
5
5
2.50
(63.5)
3.02
(76.30
±
0.30)
0.20
(5.08)
0.302
(7.67±0.30)
0.76
(19.20±0.30)
0.20 (5.08)
3
4
5
1
8
0.95
(24.13)
0.80 (20.32)
0.50 (12.70)
0.6 (15.24)
TRIM
UP
4
TRIM
DOWN
3
4
10KΩ
TRIMPOT
0.70 (17.78)
0.30 (7.62)
6
BOTTOM
VIEW
0.4 (10.16)
2
1.30
(33.02)
1.15
(29.21)
2.41
(61.10±0.30)
7
3
Ø 1.00
8 Places
Case/Metal Inserts M3.0
(Typ. 4 Places)
2.00
(50.80)
ALL DIMENSIONS IN INCHES (mm)
0.52
(13.30±0.30)
SIDE VIEW
International Safety Standard Approvals
VDE0805/EN60950/IEC950 File No. 14501-3336-7006, Licence No. 6231
UL1950 File No. E174104
CSA C22.2-234 No. 950 File No. LR41062C
Data Sheet © Artesyn Technologies® 2000
The information and specifications contained in this data sheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s) or information contained herein.
Please consult our website for the following items:
http://www.artesyn.com
Design Note
