VSPML634D-693.483MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> VSPML634D-693.483MHZ

VSPML634D-693.483MHZ: DescriptionSAW Oscillator, 693.483MHz Nom; CategoryPassive components oscillator; File Size199KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

VSPML634D-693.483MHZ Overview

SAW Oscillator, 693.483MHz Nom

VSPML634D-693.483MHZ Parametric

Parameter Name	Attribute value
Maker	Connor-Winfield
Reach Compliance Code	unknown
Other features	DIFFERENTIAL LVPECL OUTPUT WITH ENABLE/DISABLE FUNCTION
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	0.4 ns
Frequency offset/pull rate	100 ppm
frequency stability	150%
linearity	20%
Installation features	SURFACE MOUNT
Nominal operating frequency	693.483 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	SAW OSCILLATOR
Output compatibility	LVPECL
physical size	13.97mm x 8.89mm x 4.06mm
longest rise time	0.4 ns
Maximum slew rate	80 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

THE CONNOR-WINFIELD CORP.

2111 COMPREHENSIVE DRIVE.

AURORA, IL 60505.

FAX (630) 851-5040.

PHONE (630) 851-4722.

HTTP://WWW.CONWIN.COM

PRODUCT

D ATA

SHEET

CRYSTAL CONTROLLED OSCILLATORS

3.3V SURFACE MOUNT VCSO OSCILLATOR

ABSOLUTE MAXIMUM RATINGS

PARAMETER

Storage Temperature

Supply Voltage

Control Voltage

(Vcc)

(Vc)

UNITS

MINIMUM

-55

-0.5

NOMINAL

MAXIMUM

125

7.0

UNITS

°C

Vdc

TABLE 2.0

MINIMUM

NOMINAL

622.0800

644.5313

666.5143

690.5692

693.4830

3.3

-70

-105

-145

-155

MAXIMUM

UNITS

NOTE

TABLE 1.0

NOTE

CW 0434

VSPML634D

622.08M

VSPML634D

DESCRIPTION

OPERATING SPECIFICATIONS

PARAMETER

Center Frequency

Frequency Stability

Operating Temperature Range

Supply Voltage

Supply Current

Jitter (BW=10Hz to 20MHz)

Jitter (BW=12kHz to 80MHz)

SSB Phase Noise at 100Hz offset

SSB Phase Noise at 1KHz offset

SSB Phase Noise at 10KHz offset

SSB Phase Noise at 100KHz offset

(Fo)

-150

-40

150

3.465

3.0

0.5

MHz

ppm

°C

Vdc

ps rms

dBc/Hz

(Vcc)

(Icc)

3.135

The Connor-Winfield

VSPML634D is a 3.3V Voltage

Controlled SAW Oscillator

(VCSO) with Differential LVPECL

outputs and a CMOS

Enable/Disable input. The

VSPML634D is designed for use

with PLL systems in SONET/SDH

systems requiring low jitter and

tight stability. No uses of

multiplication schemes are used

in this oscillator design.

INPUT CHARACTERISTICS

PARAMETER

Control Voltage Range

Pull Slope

Absolute Pull Range (APR)

Monotonic Linearity

Input Impedance

Modulation Bandwidth (3dB)

CMOS - Enable Input Voltage

CMOS - Disable Input Voltage

(High)

(Low)

(Vih)

(Vil)

(Vc)

MINIMUM

0.3

+/-100

-20

2.0

NOMINAL

1.65

250

50K

MAXIMUM

3.0

0.4

UNITS

Vdc

ppm / V

ppm

Ohm

KHz

Vdc

TABLE 3.0

NOTE

FEATURES

J LEADED SURFACE MOUNT PACKAGE

3.3V OPERATION

LOW JITTER <0.5pS RMS

TABLE 4.0

FREQUENCY STABILITY: ±150ppm

TEMPERATURE RANGE: -40 to 85°C

LOW VOLTAGE PECL OUTPUT CHARACTERISTICS

PARAMETER

LOAD

Voltage (High)

Voltage (Low)

Duty Cycle at 50% Level

Rise / Fall Time 20% to 80%

(Voh)

(Vol)

MINIMUM

2.275

NOMINAL

250

MAXIMUM

1.68

400

UNITS

Ohms

Vdc

NOTE

DIFFERENTIAL LVPECL OUTPUTS

ENABLE / DISABLE FUNCTION

TAPE AND REEL PACKAGING

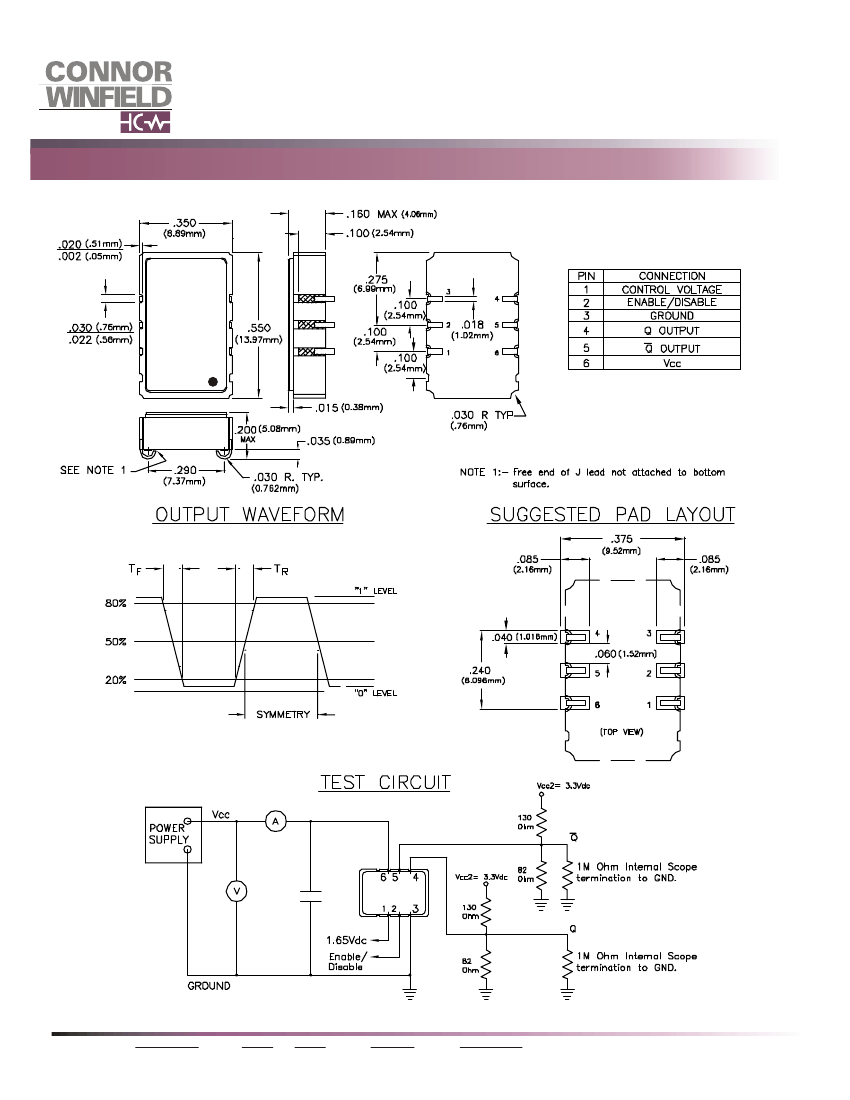

PACKAGE CHARACTERISTICS

Package

Notes

1.0

2.0

3.0

4.0

5.0

TABLE 5.0

Hermetically sealed, J leaded ceramic surf ace mount package.

ORDERING INFORMATION

Frequency stability vs. temperature. Control voltage (Vc) = 1.65 Vdc.

Referenced to Fo @ 25°C. Positive Slope.

Absolute pull range (APR) is the minimum guaranteed pul l range of the VCXO under all conditions for ten year lifetime

operation. The APR is referenced to Fo.

With no connect on the enable / disable pin (pin 2) output is enabled. W hen oscillator is disabled the true output is in a

low state (Vol) and the complementary output is in the high stat e (VoH)

50 ohm termination into Vcc -2V or Thevein equivalent.

VSPML634D - 622.08MHz

VCSO

SERIES

CENTER

FREQUENCY

Specifications subject to change without notice.

DATA SHEET #:

Vs012

PAGE

REV:

DATE:

12/14/04
