Precision SMA Male to SMA Female Radius Right Angle Adapter
TECHNICAL DATA SHEET
Precision SMA Male to SMA Female Radius Right Angle Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
SMA Male
50 Ohms
MIL-STD-348
SMA Female
50 Ohms
MIL-STD-348
Precision
Radius Right Angle
PE9641
Electrical Specifications
Frequency Range, GHz
Frequency 1
Frequency, GHz
VSWR
DC to 26
DC to 18
1.25:1

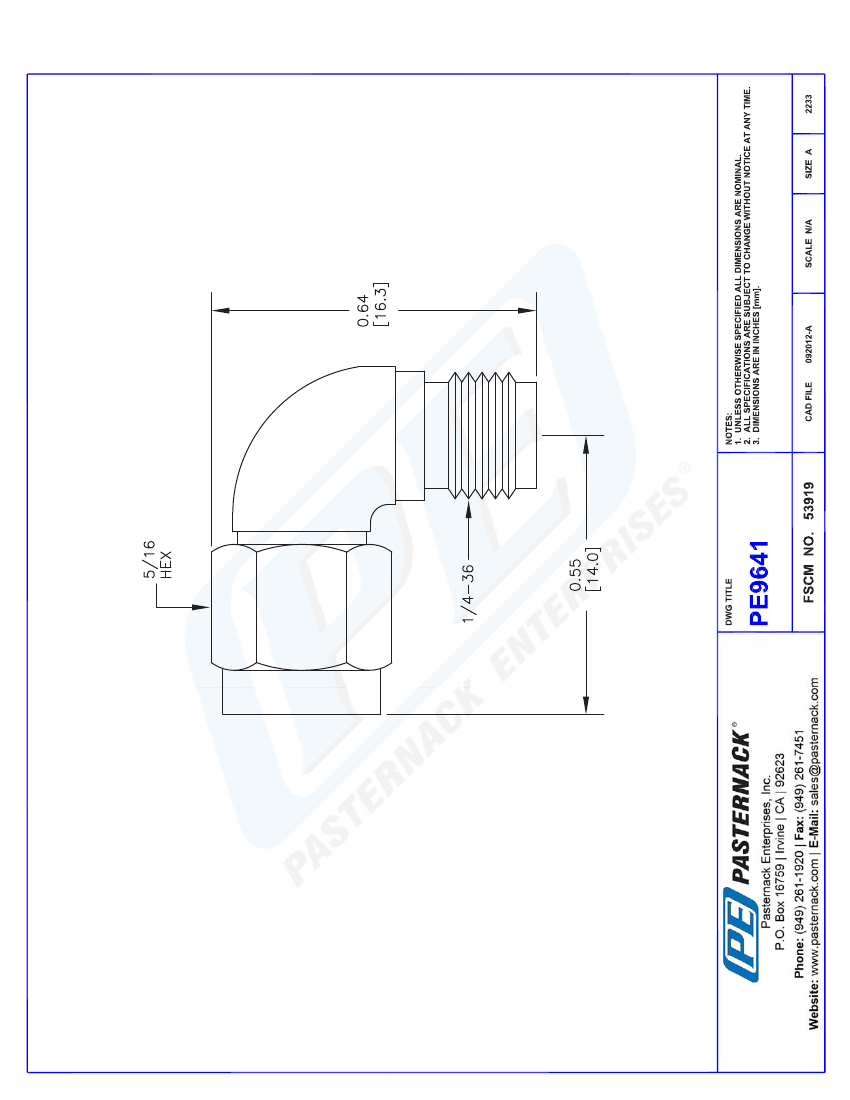

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.675 [17.15]
0.312 [7.92]
0.64 [16.26]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SMA Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 2
Brass, Nickel
5/16
5 [0.57]
Passivated Stainless Steel
QQ-P-35
Teflon
SMA Female
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 2
Passivated Stainless Steel
QQ-P-35
Teflon
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision SMA Male to SMA Female Radius Right Angle Adapter PE9641
PE9641 REV
1
Precision SMA Male to SMA Female Radius Right Angle Adapter
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
PE9641
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Precision SMA Male to SMA Female Radius Right Angle Adapter from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision SMA Male to SMA Female Radius Right Angle Adapter PE9641
URL:
http://www.pasternack.com/sma-male-sma-female-right-angle-adapter-pe9641-p.aspx
PE9641 REV
2
