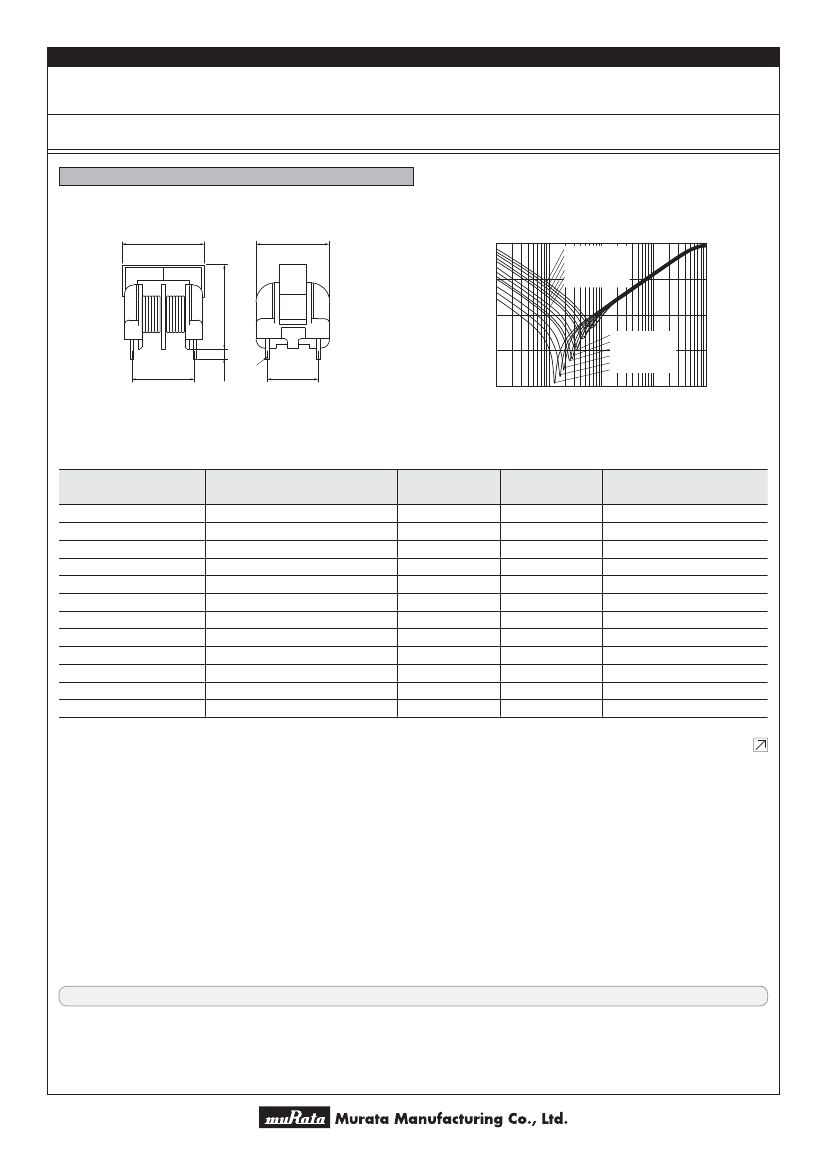

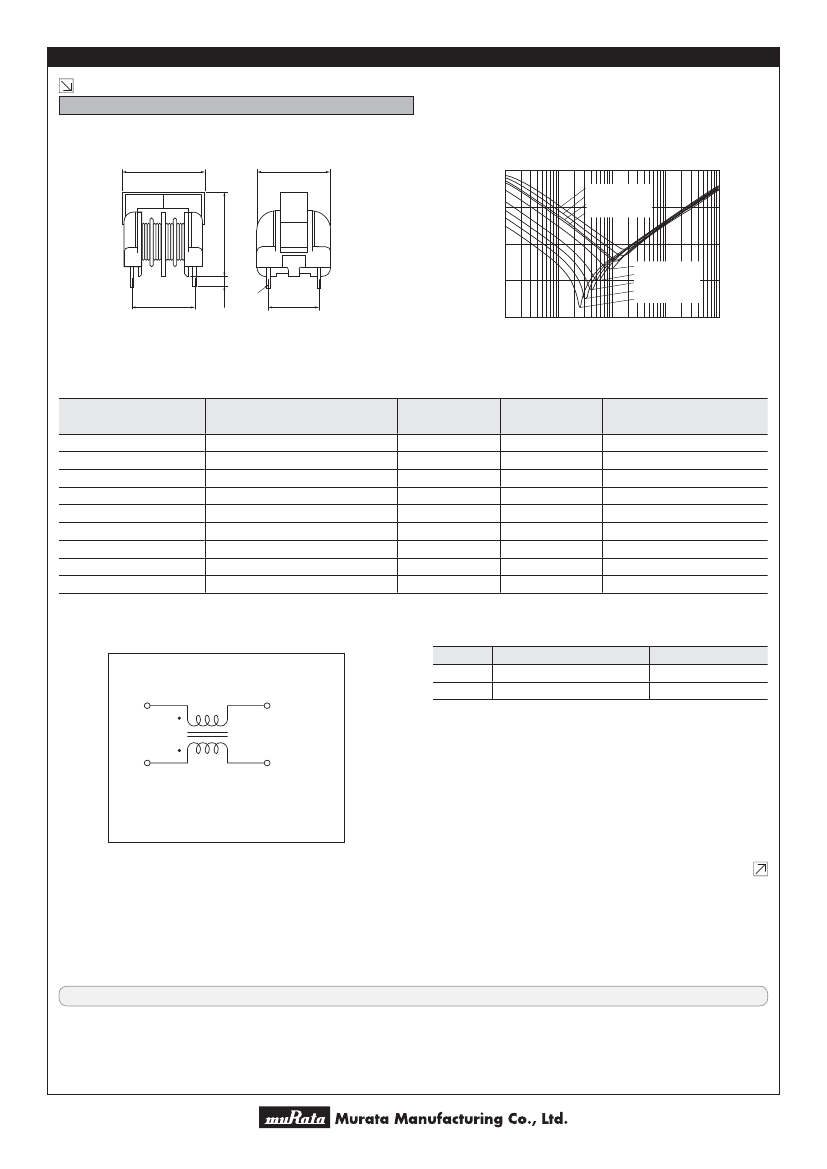

Noise Suppression Products/EMI Suppression Filters > AC Line Filters > Common Mode Choke Coil
Data Sheet
1
AC Line Filters
PLA10 Series Standard Winding Type
c
Dimension
18 max.
16 max.
Common Mode Choke Coil
PLA10 Series
c
Insertion Loss Characteristics (Main)
0
PLA10AN1522R0R2
PLA10AN1821R7R2
PLA10AN2221R5R2
PLA10AN3021R3R2
PLA10AN3521R2R2
PLA10AN5521R0R2
20
Insertion Loss (dB)
17.5 max.
40
PLA10AN7420R8R2
PLA10AN1030R7R2
PLA10AN1230R6R2
PLA10AN2030R5R2
PLA10AN3030R4R2
PLA10AN4330R3R2
0.1
1
Frequency (MHz)
10
100
60
3.5±1
ø0.9 max.
(4)
[(1)]
13±0.5
(1)
[(2)]
(4)
[(3)]
10±0.5
(3)
[(2)]
(in mm)
80
0.01
c
Rated Value (p: packaging code)
Part Number
PLA10AN1522R0R2p
PLA10AN1821R7R2p
PLA10AN2221R5R2p
PLA10AN3021R3R2p
PLA10AN3521R2R2p
PLA10AN5521R0R2p
PLA10AN7420R8R2p
PLA10AN1030R7R2p
PLA10AN1230R6R2p
PLA10AN2030R5R2p
PLA10AN3030R4R2p
PLA10AN4330R3R2p
Operating Temperature Range: -25°C to 60°C
Common Mode Inductance (min.)
1.5mH
1.8mH
2.2mH
3.0mH
3.5mH
5.5mH
7.4mH
10.0mH
12.0mH
20.0mH
30.0mH
43.0mH
Rated Current
2.0A
1.7A
1.5A
1.3A
1.2A
1.0A
0.8A
0.7A
0.6A
0.5A
0.4A
0.3A
Rated Voltage
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
300V
Insulation Resistance (min.)
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
Winding Temperature Rise (at Rated Current): 60°C (max.)
Continued on the following page.
oThis
data sheet is applied for AC Line Filters Common Mode Choke Coil used for General Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2012.7.5
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > AC Line Filters > Common Mode Choke Coil
Data Sheet
Continued from the preceding page.
2
PLA10 Series Sectional Winding Type
c
Dimension
18 max.
16 max.
c
Insertion Loss Characteristics (Main)
0
PLA10AN9012R0D2
PLA10AN1321R7D2
PLA10AN1821R5D2
PLA10AN2021R3D2
20
Insertion Loss (dB)
17.5 max.
40
PLA10AN3621R0D2
PLA10AN7720R7D2
PLA10AN1330R5D2
PLA10AN2230R4D2
PLA10AN3630R3D2
0.1
1
Frequency (MHz)
10
100
60
3.5±1
ø0.9 max.
10±0.5
(4)
[(1)]
(3)
[(2)]
(in mm)
80
0.01
13±0.5
(1)
[(2)]
(4)
[(3)]
c
Rated Value (p: packaging code)
Part Number
PLA10AN9012R0D2p
PLA10AN1321R7D2p
PLA10AN1821R5D2p
PLA10AN2021R3D2p
PLA10AN3621R0D2p
PLA10AN7720R7D2p
PLA10AN1330R5D2p
PLA10AN2230R4D2p
PLA10AN3630R3D2p
Operating Temperature Range: -25°C to 60°C
Common Mode Inductance (min.)
0.9mH
1.3mH
1.8mH
2.0mH
3.6mH
7.7mH
13.0mH
22.0mH
36.0mH
Rated Current
2.0A
1.7A
1.5A
1.3A
1.0A
0.7A
0.5A
0.4A
0.3A
Rated Voltage
300V
300V
300V
300V
300V
300V
300V
300V
300V
Insulation Resistance (min.)
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
100M ohm
Winding Temperature Rise (at Rated Current): 60°C (max.)
c
Equivalent Circuit
c
Packaging
Code
M
B
Packaging
Magazine
Box
Minimum Quantity
1800
1260
(1)
N1
(2)
N1 : N2 = 1 : 1
(4)
N2
(3)
No polarity.
Continued on the following page.
oThis
data sheet is applied for AC Line Filters Common Mode Choke Coil used for General Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2012.7.5
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > AC Line Filters > Common Mode Choke Coil
Data Sheet
Continued from the preceding page.
3
c !Caution
(Rating)
1. Rated Current
Operating current should not exceed the rated
value. Even if operating current is under the
rated value, adequate ventilation is required to
avoid excessive heat generated within the product
(choke coil) and from surrounding heat sources.
If exceeding these conditions, excessive heat may
cause fumes or permanent damage to the product.
Please ensure that product (choke coil) is
evaluated and confirmed against the specification
when it is mounted in your final assembled product.
-> Winding temperature should be less than
120 degree C.
*As for FKOB series winding temperature should be
less than 95 degree C.
Maximum allowable temperature at the surface of
coil (ambient temperature + winding temperature
rise) is in accordance with each safety standard
applicable to final assembled product.
When the temperature at winding exceeds maximum
allowable temperature of safety standard, the
rated current should be derated.
2. Inrush Current
Inrush current should not exceed 10 times rated
current within 1/4 cycle of 50/60Hz commercial
power line. Inrush current should be limited to a
minimum of 10 seconds after last inrush.
If these conditions are exceeded, excessive heat may
cause fumes or permanent damage to the component,
or at worst cause ignition.
c
Notice (Soldering and Mounting)
Magnetic Flux Leakage
Choke coils generate small amounts of magnetic flux
leakage that may adversely affect equipment operation
according to component arrangement.
Testing should be completed on final assembly to
ensure equipment performance is not affected.
c
Notice (Other)
Coil Humming Noise
Magnetic flux generated between coil and core or
between the choke coil windings creates repulsive
power between the coil windings. This repulsive
power causes the coil winding to vibrate and create
a humming noise. The amount of hum produced by the
coil is proportionate to the amount of harmonic
distortion generated by the operating current. This
does not influence the electrical performance of
the coils, but it should be considered and tested
in actual circuit application.
oThis
data sheet is applied for AC Line Filters Common Mode Choke Coil used for General Electronics equipment for your design.
!Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it
may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2012.7.5
http://www.murata.com/
