TF666-08A datasheet, PDF - EEWORLD Datasheet

TF666-08A: DescriptionSilicon Controlled Rectifier, 700000mA I(T), 800V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size598KB，12 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

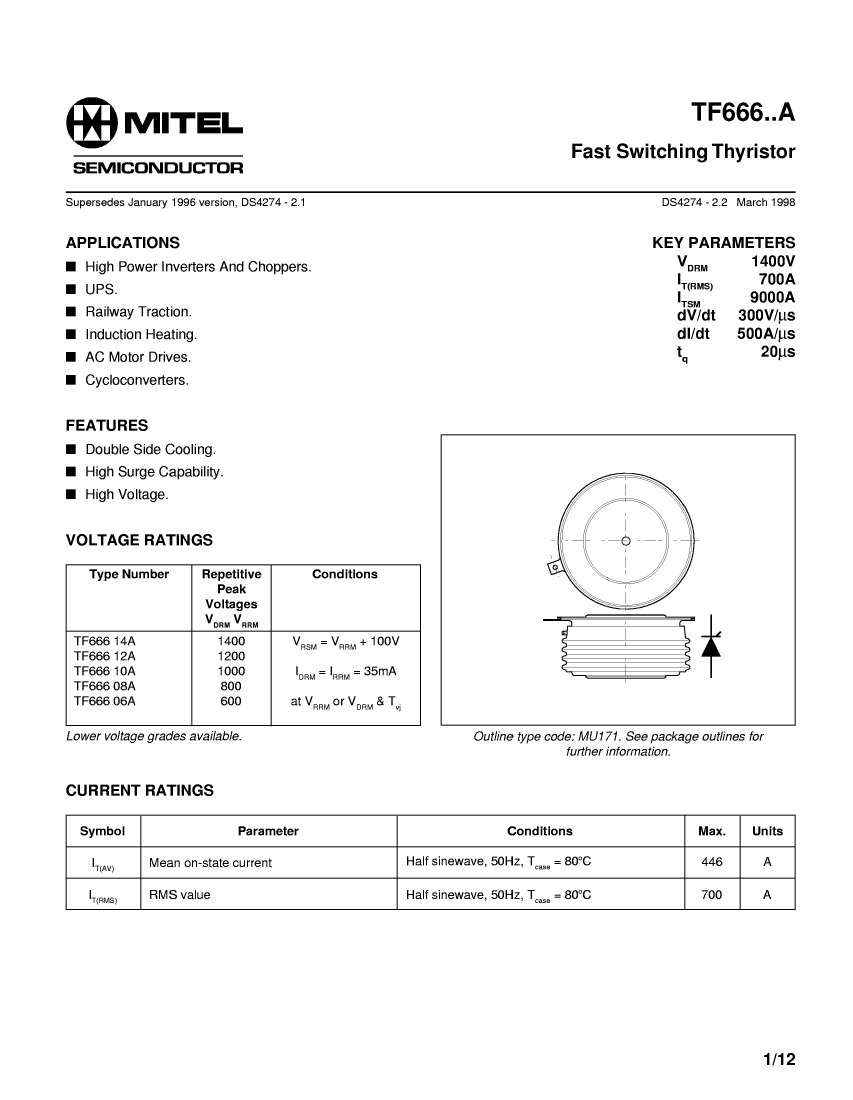

TF666-08A Overview

Silicon Controlled Rectifier, 700000mA I(T), 800V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
ECCN code	EAR99

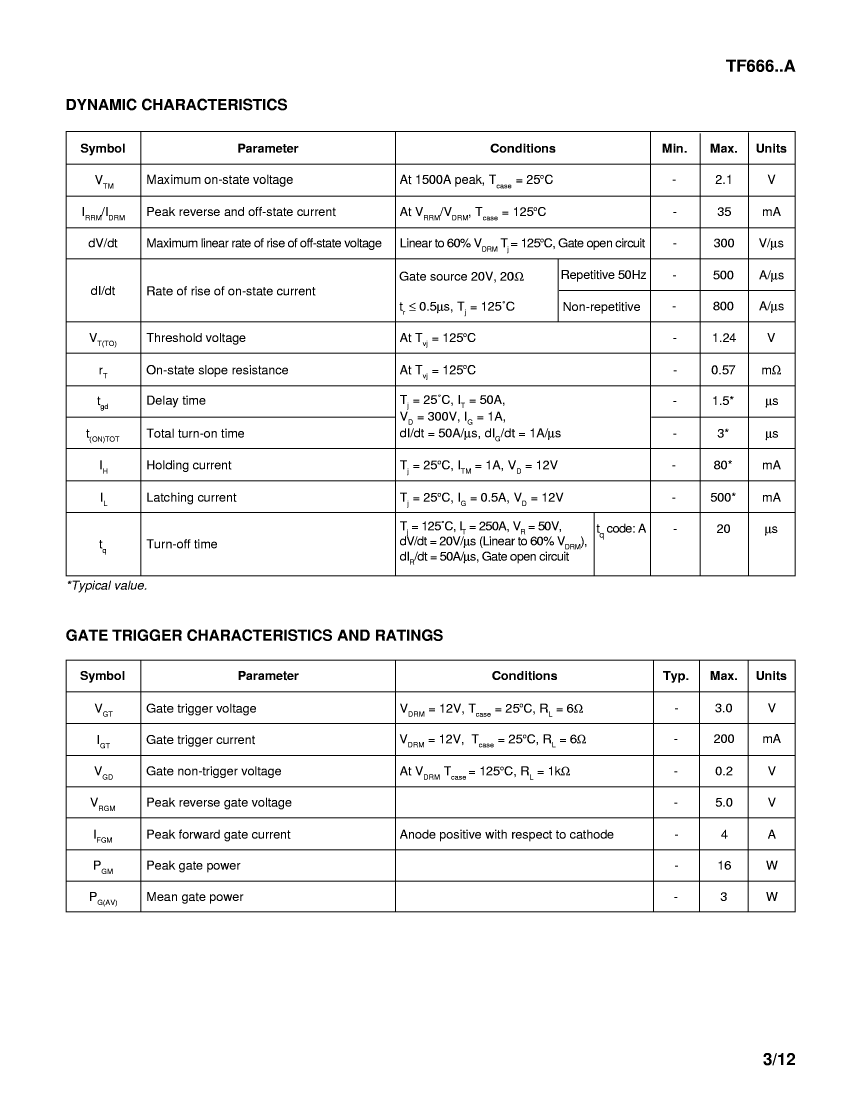

Nominal circuit commutation break time	20 µs
Critical rise rate of minimum off-state voltage	300 V/us

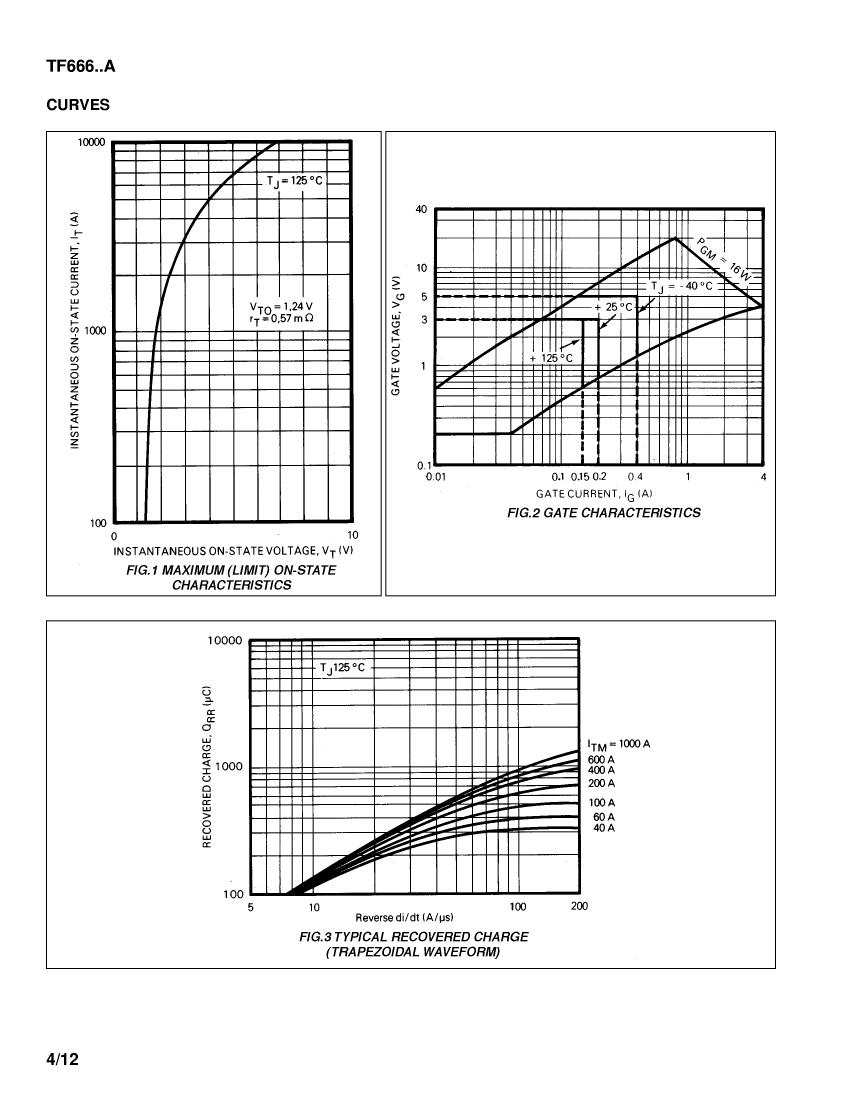

Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Maximum leakage current	35 mA

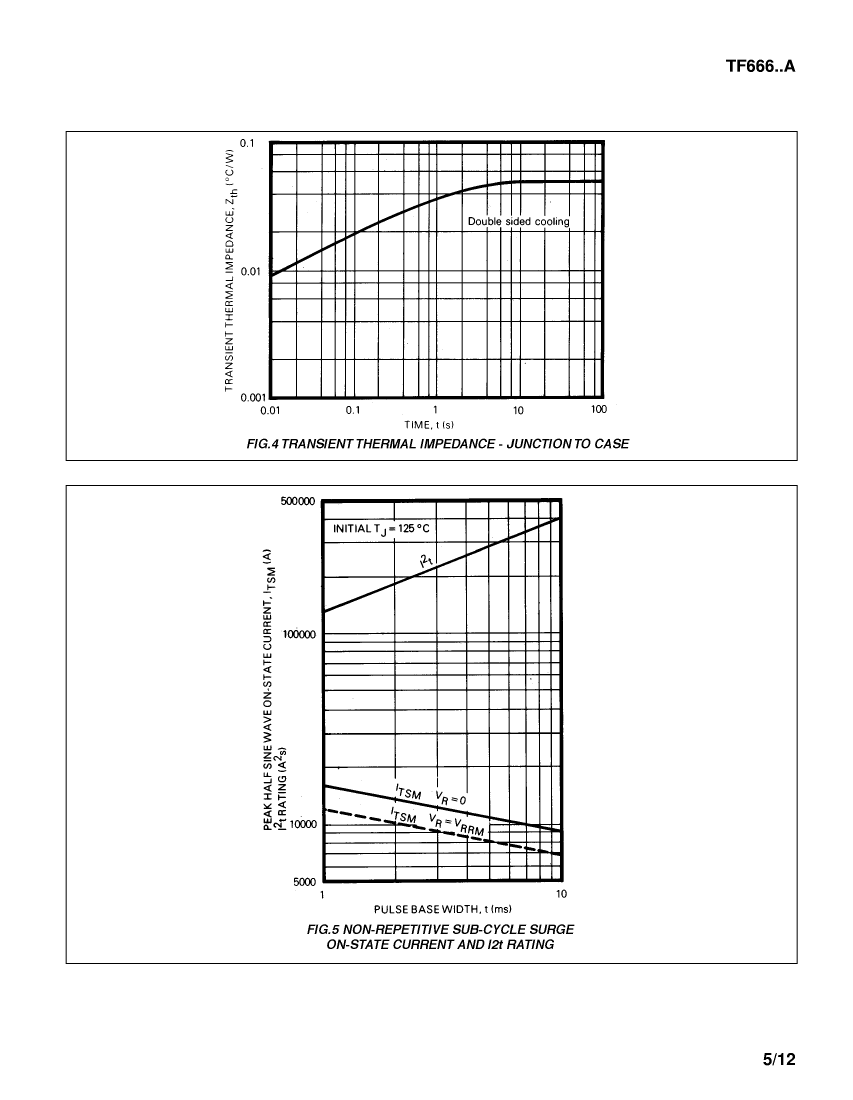

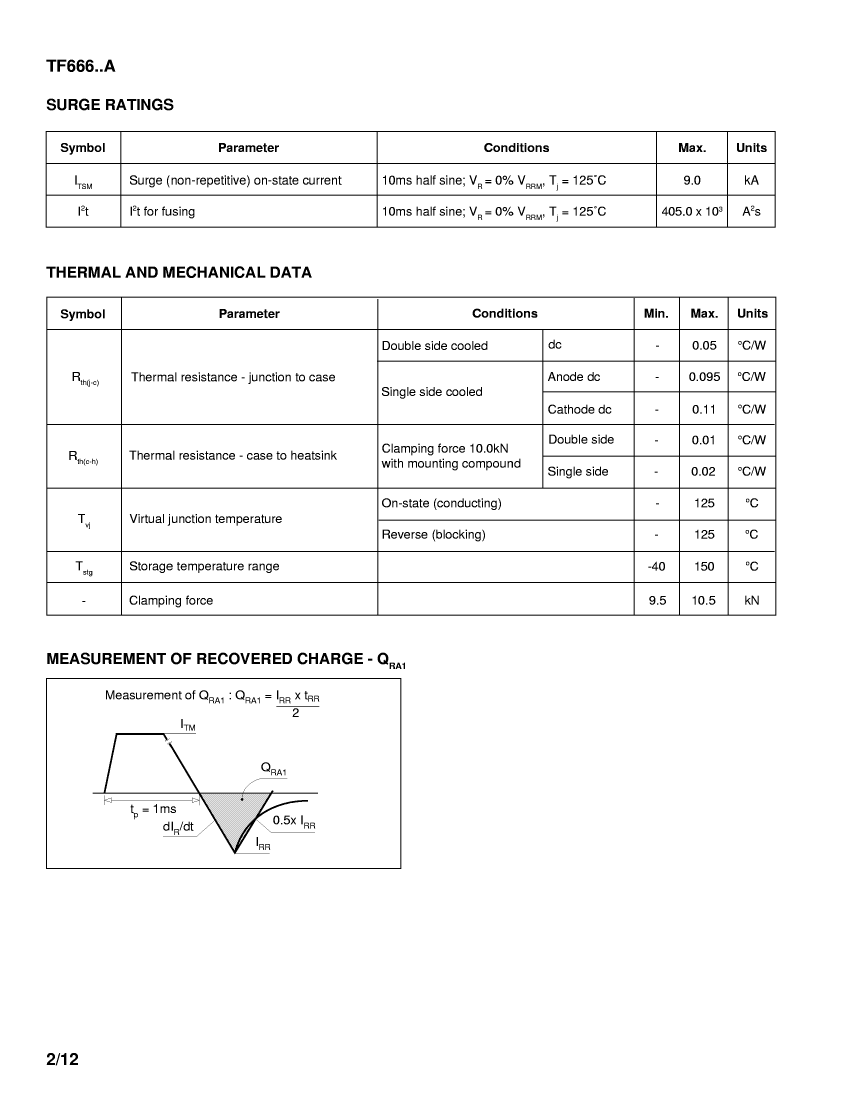

On-state non-repetitive peak current	9000 A
Maximum on-state current	700000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	800 V
surface mount	NO
Trigger device type	SCR

	TF666-08A	TF666-06A	TF666-10A	TF666-12A	TF666-14A
Description	Silicon Controlled Rectifier, 700000mA I(T), 800V V(DRM),	Silicon Controlled Rectifier, 700000mA I(T), 600V V(DRM),	Silicon Controlled Rectifier, 700000mA I(T), 1000V V(DRM),	Silicon Controlled Rectifier, 700000mA I(T), 1200V V(DRM),	Silicon Controlled Rectifier, 700000mA I(T), 1400V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	20 µs	20 µs	20 µs	20 µs	20 µs
Critical rise rate of minimum off-state voltage	300 V/us	300 V/us	300 V/us	300 V/us	300 V/us
Maximum DC gate trigger current	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V
Maximum leakage current	35 mA	35 mA	35 mA	35 mA	35 mA
On-state non-repetitive peak current	9000 A	9000 A	9000 A	9000 A	9000 A
Maximum on-state current	700000 A	700000 A	700000 A	700000 A	700000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-45 °C	-45 °C	-45 °C	-45 °C
Off-state repetitive peak voltage	800 V	600 V	1000 V	1200 V	1400 V
surface mount	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR
