HLMP-EGxx, HLMP-ELxx
New T-1¾ (5mm) Extra High Brightness AlInGaP LED Lamps
Data Sheet
Description
These Precision Optical Performance AlInGaP LEDs
provide superior light output for excellent readability in
sunlight and are extremely reliable. AlInGaP LED tech-
nology provides extremely stable light output over long
periods of time. Precision Optical Performance lamps
utilize the aluminum indium gallium phosphide (AlInGaP)
technology.
These LED lamps are untinted, T-¾ packages incorpo-
rating second generation optics producing well defined
spatial radiation patterns at specific viewing cone angles.
These lamps are made with an advanced optical grade
epoxy offering superior high temperature and high
moisture resistance performance in outdoor signal and
sign application. The maximum LED junction tempera-
ture limit of +30°C enables high temperature operation
in bright sunlight conditions. The epoxy contains both
uv-a and uv-b inhibitors to reduce the effects of long
term exposure to direct sunlight.
Features
•
Viewing angle: 5°, 23°, 30°
•
High luminous output
•
Colors:
590nm Amber
626nm Red
•
Package options:
With or without lead standoff
•
Superior resistance to moisture
•
Untinted for 5°, 23° and 30° lamps
Applications
•
Traffic management:
- Traffic signals
- Pedestrian signals
- Work zone warning lights
- Variable message signs
•
Solar Power signs
•
Commercial outdoor advertising
- Signs
- Marquees
Benefits
•
Superior performance for outdoor environments
•
Suitable for auto-insertion onto PC board
Package Dimension
A: Non-standoff
5.00 ± 0.20
(0.197 ± 0.008)
8.71 ±0.20
(0.343 ±0.008)
1.14 ±0.20
(0.045 ± 0.008)
d
B: Standoff
5.00 ± 0.20
(0.197 ± 0.008)
8.71 ±0.20
(0.343 ±0.008)
0.70 (0.028)
MAX.
31.60
MIN.
(1.244)
2.35 (0.093)
MAX.
1.14 ±0.20
(0.045 ±0.008)
31.60
MIN.
(1.244)
1.50 ±0.15
(0.059 ±0.006)
0.70 (0.028)
MAX.
CATHODE
LEAD
CATHODE
LEAD
1.00 MIN.
(0.039)
0.50 ±0.10
SQ. TYP.
(0.020 ±0.004)
1.00 MIN.
(0.039)
0.50 ±0.10
SQ. TYP.
(0.020 ±0.004)
CATHODE
FLAT
5.80 ±0.20
(0.228 ±0.008)
2.54 ±0.38
(0.100 ±0.015)
CATHODE
FLAT
5.80 ±0.20
(0.228 ±0.008)
2.54 ±0.38
(0.100 ±0.015)
Viewing Angle
5°
23° & 30°
d
2.39±0.25
(0.476±0.00)
.96±0.25
(0.459±0.00)
Notes:
. All dimensions are in millimeters (inches)
2. Leads are mild steel with tin plating.
3. The epoxy meniscus is .2mm max
4. For Identification of polarity after the
leads are trimmed off, please refer to the
illustration below:
CATHODE
ANODE
2
Device Selection Guide
Typical viewing
Angle
2θ
1/2
(Deg)
[4]
5°
Color and Dominant
Wavelength (nm),
Typ
[3]
Amber 590
Red 626
Lamps without Standoff
on leads
(Package drawing A)
HLMP-ELA-ZKDD
HLMP-ELA-ZLDD
HLMP-EGA-Z0DD
HLMP-EL2A-XYKDD
HLMP-EL2A-XYLDD
HLMP-EG2A-XY0DD
HLMP-EL3A-VWKDD
HLMP-EL3A-VWLDD
HLMP-EL3A-WXKDD
HLMP-EL3A-WXLDD
Lamps with Standoff
on leads
(Package drawing B)
HLMP-ELB-ZKDD
HLMP-ELB-ZLDD
HLMP-EGB-Z0DD
HLMP-EL2B-XYKDD
HLMP-EL2B-XYLDD
HLMP-EG2B-XY0DD
HLMP-EL3B-VWKDD
HLMP-EL3B-VWLDD
HLMP-EL3B-WXKDD
HLMP-EL3B-WXLDD
HLMP-EG3B-VW0DD
HLMP-EG3B-WX0DD
Luminous Intensity
Iv (mcd)
[1,2,5]
at 20 mA
Min
2000
2000
2000
7200
7200
7200
4200
4200
5500
5500
4200
5500
Max
2000
2000
2000
2000
2000
2000
7200
7200
9300
9300
7200
7200
23°
Amber 590
Red 626
30°
Amber 590
Red 626
HLMP-EG3A-VW0DD
HLMP-EG3A-WX0DD
Notes:
. The luminous intensity is measured on the mechanical axis of the lamp package and it is tested with pulsing condition.
2. The optical axis is closely aligned with the package mechanical axis.
3. Dominant wavelength, λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
4. θ
½
is the off-axis angle where the luminous intensity is half the on-axis intensity.
5. Tolerance for each bin limit is ± 5%
Part Numbering System
HLMP – E x xx - x x x xx
Mechanical Options
DD : Ammo Pack
Color Bin Selections
0 : Full color distribution
K : Color Bin 2 & 4
L : Color Bin 4 & 6
Maximum Intensity Bin
0 : No maximum intensity limit (Refer to Selection Guide)
Minimum Intensity Bin
Refer to Device Selection Guide
Viewing Angle and Lead Standoffs
1A: 15° without lead standoff
1B: 15° with lead standoff
2A: 23° without lead standoff
2B: 23° with lead standoff
3A: 30° without lead standoff
3B: 30° with lead standoff
Color
G : Red 626nm
L : Amber 590nm
Note: Please refer to AB 5337 for complete information on part numbering system.
3
Absolute Maximum Ratings
T
J
= 25°C
Parameter
DC Forward Current
[2]
Peak Forward Current
Average forward current
Power Dissipation
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Notes:
. Duty Factor 30%, frequency KHz.
2. Derate linearly as shown in Figure 4
Red/Amber
50
00
[]
30
20
5
-40 to +00
-40 to +00
Unit
mA
mA
mA
mW
V
°C
°C
Electrical / Optical Characteristics
T
J
= 25°C
Parameter
Forward Voltage
Amber
Red
Reverse Voltage
Dominant Wavelength
[]
Amber
Red
Peak Wavelength
Amber
Red
Spectral Halfwidth
Amber
Red
Thermal resistance
Luminous Efficacy
[2]
Amber
Red
Luminous Flux
Amber
Red
Luminous Efficiency
[3]
Amber
Red
Thermal coefficient of ld
Amber
Red
Symbol
V
F
V
R
l
d
Min
.8
.8
5
584.5
68.0
Typ.
2.
2.
Max
2.4
2.4
Units
V
V
Test Conditions
I
F
= 20 mA
I
R
= 00 μA
I
F
= 20 mA
590.0
626.0
594
634
3
4
240
500
200
2000
900
47
45
0.08
0.05
594.5
630.0
nm
l
PEAK
nm
Peak of Wavelength of Spectral
Distribution at I
F
= 20 mA
I
F
= 20 mA
Δl
/2
nm
Rq
J-PIN
η
v
°C/W
lm/W
LED junction to anode lead
Emitted Luminous Flux/Emitted
Radiant Flux
I
F
= 20 mA
Φ
v
mlm
η
e
lm/W
Emitted Luminous Flux/Electrical
Power
I
F
= 20 mA ; +25°C ≤ T
J
≤ +00°C
nm/°C
Notes:
. The dominant wavelength, λ
d
is derived from the CIE Chromaticity Diagram referenced to Illuminant E. Tolerance for each color of dominant
wavelength is +/- 0.5nm.
2. The radiant intensity, I
e
in watts per steradian, maybe found from the equation I
e
= I
v
/ η
V
where Iv is the luminous intensity in candela and η
V
is
the luminous efficacy in lumens/ watt.
3. η
e
= Φ
v
/I
F
x V
F
where Φ
v
is the emitted luminous flux, I
F
is electrical forward current and V
F
is the forward voltage.
4
1.0
FORWARD CURRENT-mA
0.8
RELATIVE INTENSITY
0.6
0.4
0.2
0.0
500
Amber
100
80
60
40
20
0
550
600
WAVELENGTH - nm
650
700
Red
0
1
2
FORWARD VOLTAGE-V
3

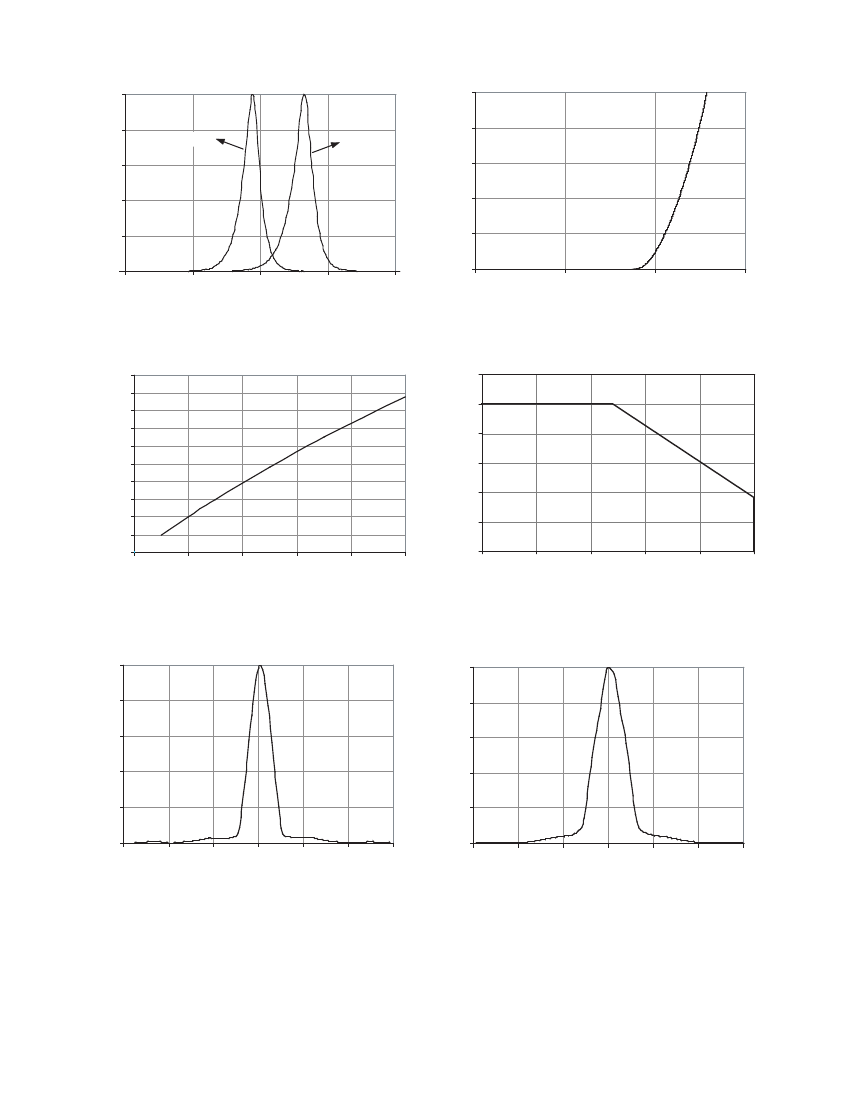

Figure 1. Relative Intensity vs Peak Wavelength
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
Figure 2. Forward Current vs Forward Voltage
60
50
40
30
20
10
0
0
20
40
60
80
T
A
- AMBIENT TEMPERATURE - C
-
100
0
20
40
60
DC FORWARD CURRENT - mA
80
100
Figure 3. Relative Luminous Intensity vs Forward Current
Figure 4. Maximum Forward Current vs Ambient Temperature
1.0
0.8
0.6
0.4
0.2
0.0
-90
NORMALIZED INTENSITY
NORMALIZED INTENSITY
I
FMAX
- MAXIMUM FORWARD CURRENT - mA
RELATIVE LUMINOUS INTENSITY
(NORMALIZED AT 20 mA)
1.0
0.8
0.6
0.4
0.2
0.0
-90
-60
-30
0
30
60
ANGULAR DISPLACEMENT-DEGREE
90
-60
-30
0
30
ANGULAR DISPLACEMENT-DEGREE
60
90
Figure 5.Radiation Pattern for 15° Viewing Angle Lamp
Figure 6. Radiation Pattern for 23° Viewing Angle Lamp
5
