75 Ohm BNC Male Connector Crimp/Solder
Attachment For RG179-DS, 179DT
TECHNICAL DATA SHEET
75 Ohm BNC Male Connector Crimp/Solder Attachment For RG179-DS, 179DT
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Male
RG179-DS,179DT
Crimp/Solder
Straight
PE44629
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.265 [32.13]
0.57 [14.48]
0.02 [9.07]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
BNC Male
Brass, Gold
Brass, Black Chrome
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
75 Ohm BNC Male Connector Crimp/Solder Attachment For RG179-DS, 179DT from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm BNC Male Connector Crimp/Solder Attachment For RG179-DS, 179DT PE44629
URL:
http://www.pasternack.com/bnc-male-standard-rg179-ds-179dt-connector-pe44629-p.aspx
PE44629 REV 01
1
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44629

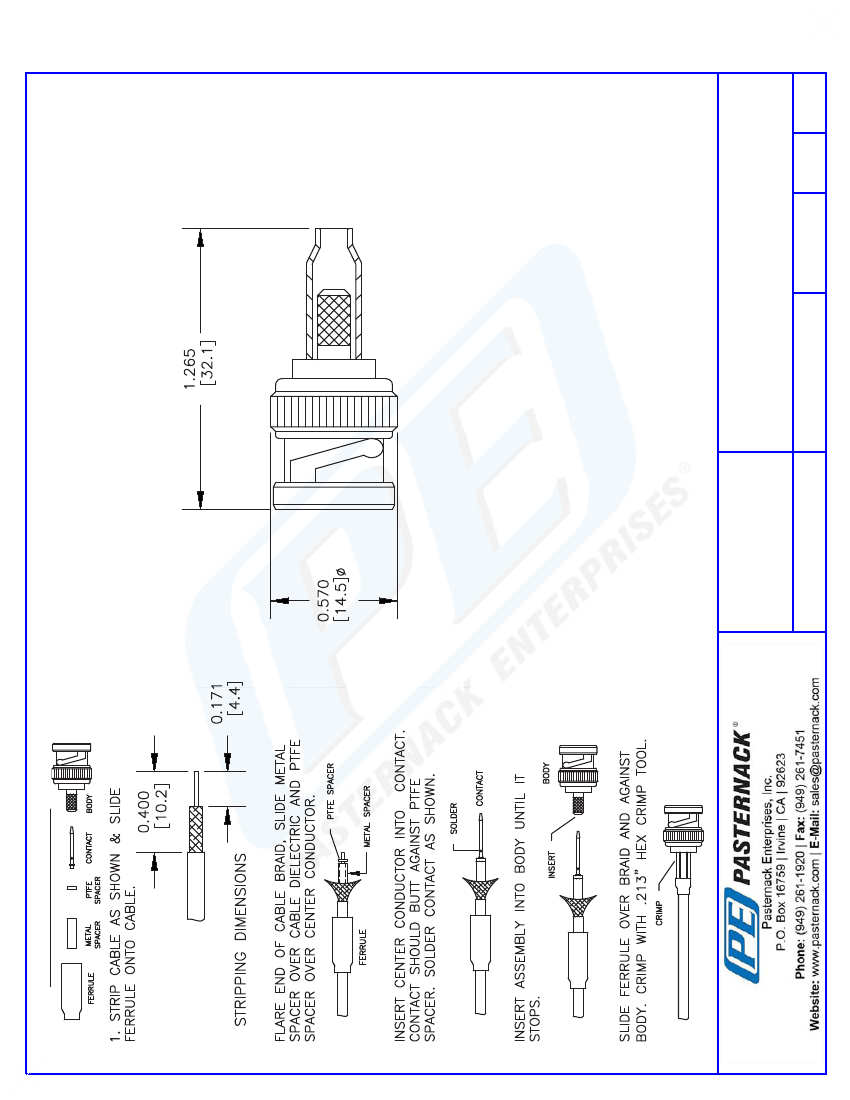

CAD Drawing
75 Ohm BNC Male Connector Crimp/Solder Attachment For RG179-DS, 179DT
PE44629 REV 01
PE44629
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
080708
SCALE N/A
SIZE A
XXXX
2
