TNC Male Connector Crimp/Solder Attachment
For RG8X, PE-C240, 0.240 inch
TECHNICAL DATA SHEET
TNC Male Connector Crimp/Solder Attachment For RG8X, PE-C240, 0.240 inch
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
TNC Male
RG8X,PE-C240,0.240 inch
Crimp/Solder
Straight
PE44634
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.172 [29.77]
0.59 [15]
0.042 [19.05]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
TNC Male
Brass, Gold
Brass, Nickel
Delrin
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
TNC Male Connector Crimp/Solder Attachment For RG8X, PE-C240, 0.240 inch from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
TNC Male Connector Crimp/Solder Attachment For RG8X, PE-C240, 0.240 inch PE44634
URL:
http://www.pasternack.com/tnc-male-standard-rg8x-pe-c240-0.240-connector-pe44634-p.aspx
PE44634 REV
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44634

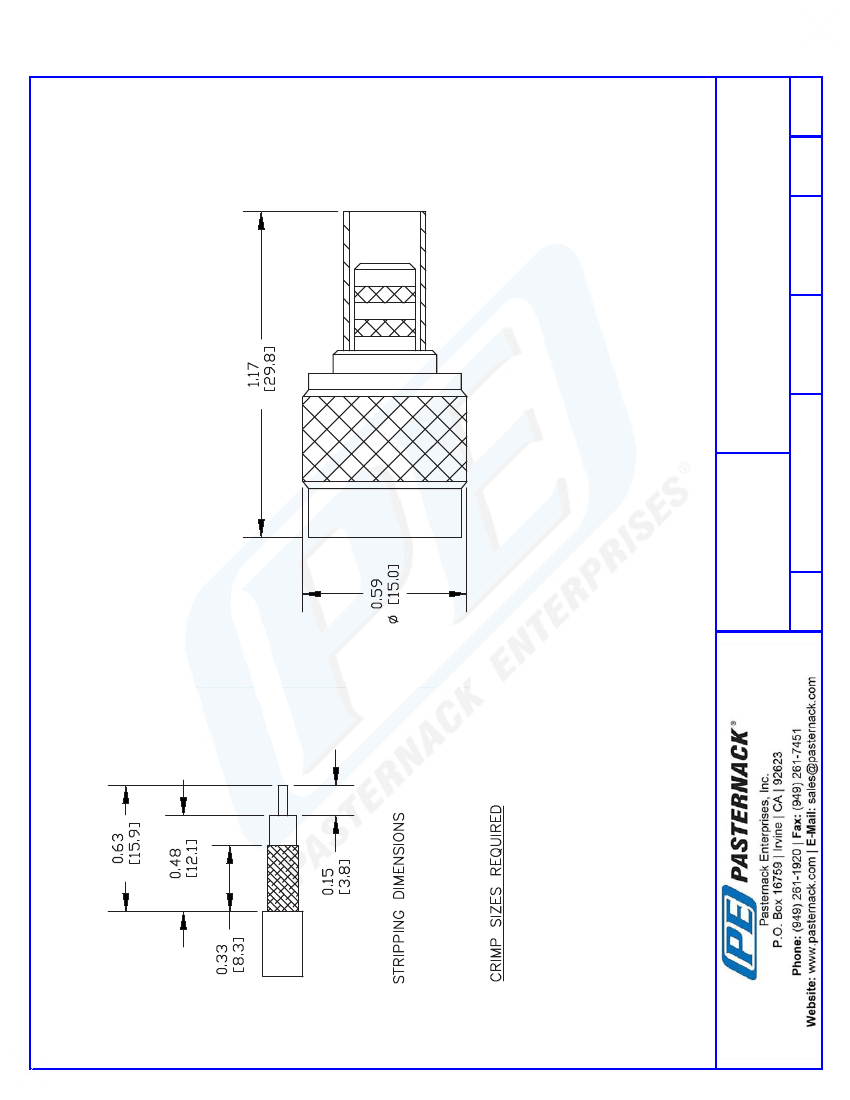

CAD Drawing
TNC Male Connector Crimp/Solder Attachment For RG8X, PE-C240, 0.240 inch
PE44634 REV
CONTACT: .068" HEX CRIMP TOOL
FERRULE: .255" HEX CRIMP TOOL
PE44634
REV. A
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
050609-A
SCALE N/A
SIZE A
147
2
