425M30591JB1: DescriptionFilm Capacitor, Polyester, 100V, 10% +Tol, 10% -Tol, 3uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size189KB，7 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

425M30591JB1 Overview

Film Capacitor, Polyester, 100V, 10% +Tol, 10% -Tol, 3uF, Through Hole Mount, RADIAL LEADED

425M30591JB1 Parametric

Parameter Name	Attribute value
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	3 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (AC) voltage (URac)	63 V
Rated (DC) voltage (URdc)	100 V
surface mount	NO
Terminal surface	TIN
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

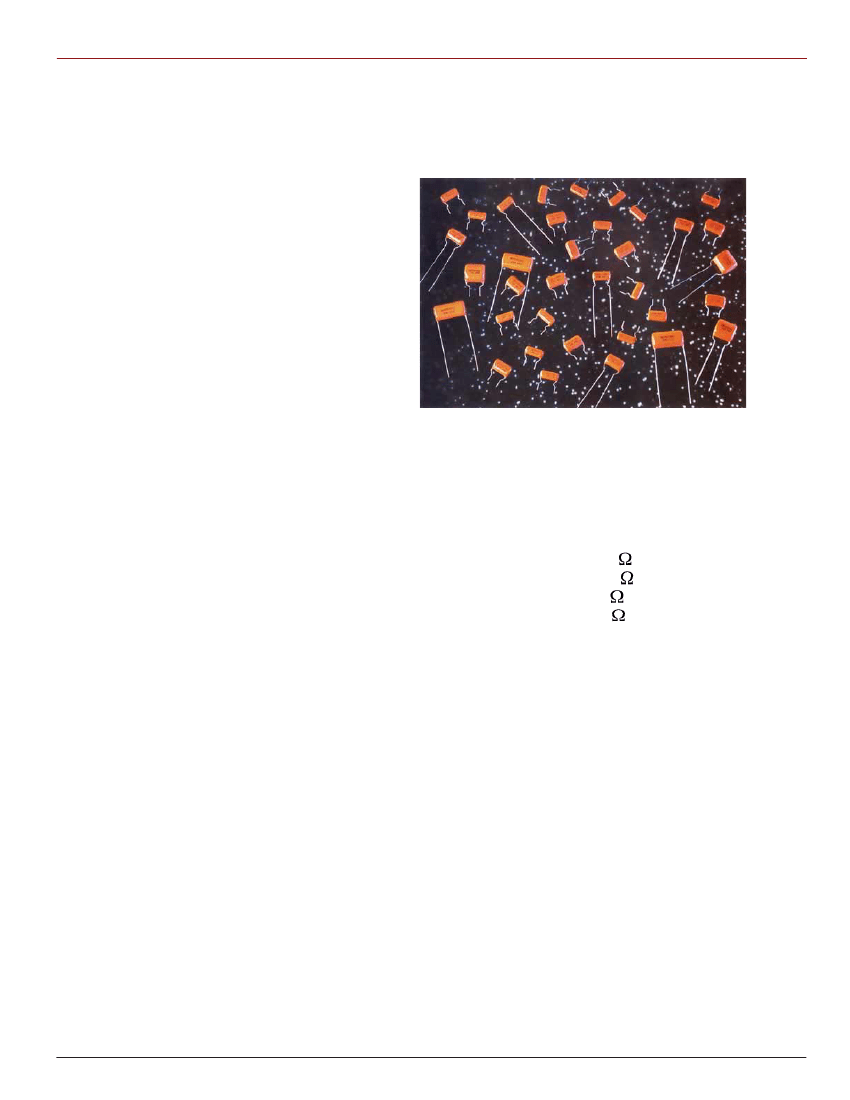

Type 425M, Orange Drop®, Metallized Polyester Film/Foil Capacitors

Type 425M Orange Drop

Metallized Polyester

Film Capacitors

Features

• Radial-lead

• Pressed profile

• Non-inductively wound

• Compact size

• Self-healing properties

Specifications

Capacitance Range:

012 to 12.0 µF

Capacitance Tolerance:

±5%, ±10%

Voltage Ratings:

100 to 630 Volts D-C

63 to 250 Volts A-C

Operating Temperature Range:

-55°C to +85°C (at full voltage)

Voltage Derating:

At +105°C, 70% of +85°C rating.

At +125°C, 50% of +85°C rating

Pulse Rise Time (dV/dt):

See standard ratings table dV/dt

rating is in Volts/µsec.

Insulation Resistance:

At +25°C: 10,000 M for C 1.0 µF

10,000 M -µF for C > 1.0 µF

At +85°C

1,000 M for C

1.0 µF

1,000 M -µF for C > l 0 µF

Dissipation Factor:

1 0% Maximum @ 1 KHz, +25°C

Encapsulation:

Conformal coating of orange, flame

retardant epoxy. Meets UL94V-0

specifications.

Lead Wire:

Tinned copper-clad steel,

.032 (0.8) diameter, #20 AWG.

Dielectric/Construction:

Metallized Polyester film, single section

design Non-inductively wound.

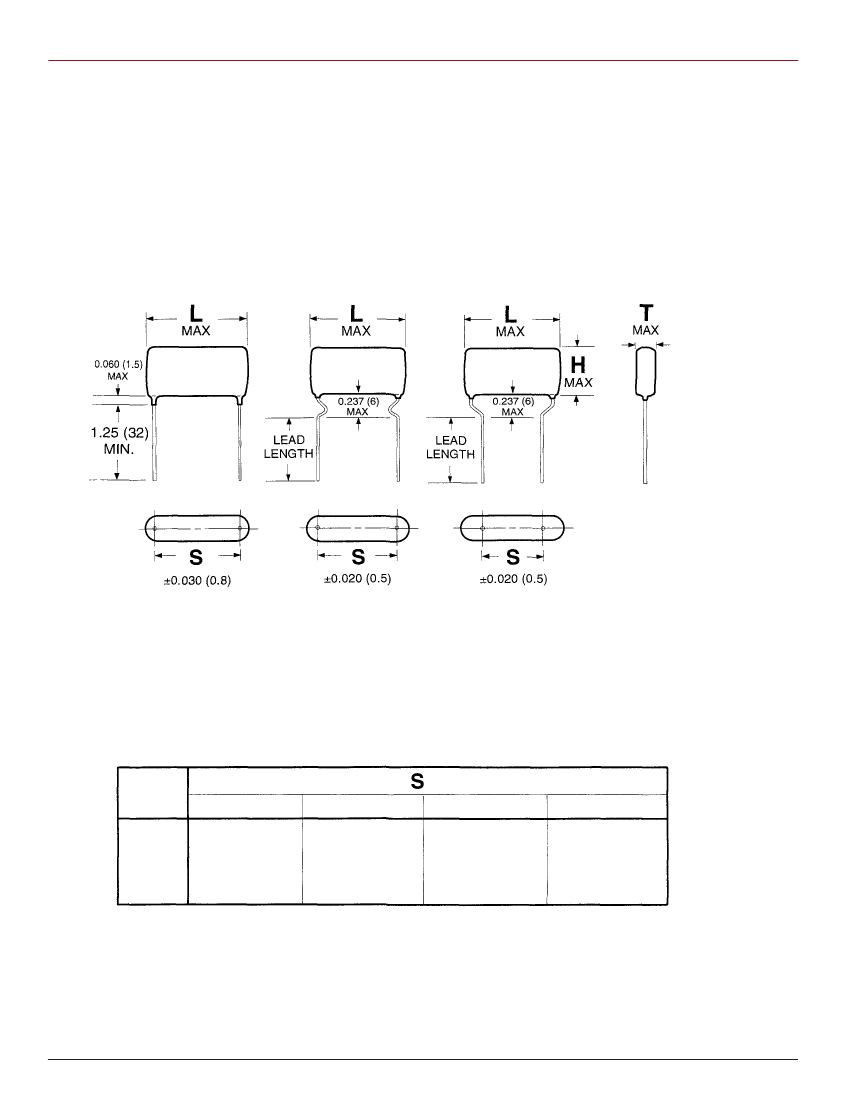

Dimensions in inches, metric (mm) in parenthesis.

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830
