N Female Precision Connector Solder Attachment For
PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405
TECHNICAL DATA SHEET
PE44704
N Female Precision Connector Solder Attachment For PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Connector Design
Body Style
N Female
PE-SR405AL,PE-SR405FL,PE-SR405FLJ,RG405
Solder/Solder
Precision
Straight
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
DC to 11
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.02 [25.91]
0.63 [16.00]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
N Female
Phosphor Bronze, Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
N Female Precision Connector Solder Attachment For PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405 from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Precision Connector Solder Attachment For PE-SR405AL, PE-SR405FL, PE-SR405FLJ,
RG405 PE44704
URL:
http://www.pasternack.com/n-female-standard-pe-sr405al-pe-sr405fl-pe-sr405flj-connector-pe44704-p.aspx
PE44704 REV
1
N Female Precision Connector Solder Attachment For
PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405
PE44704

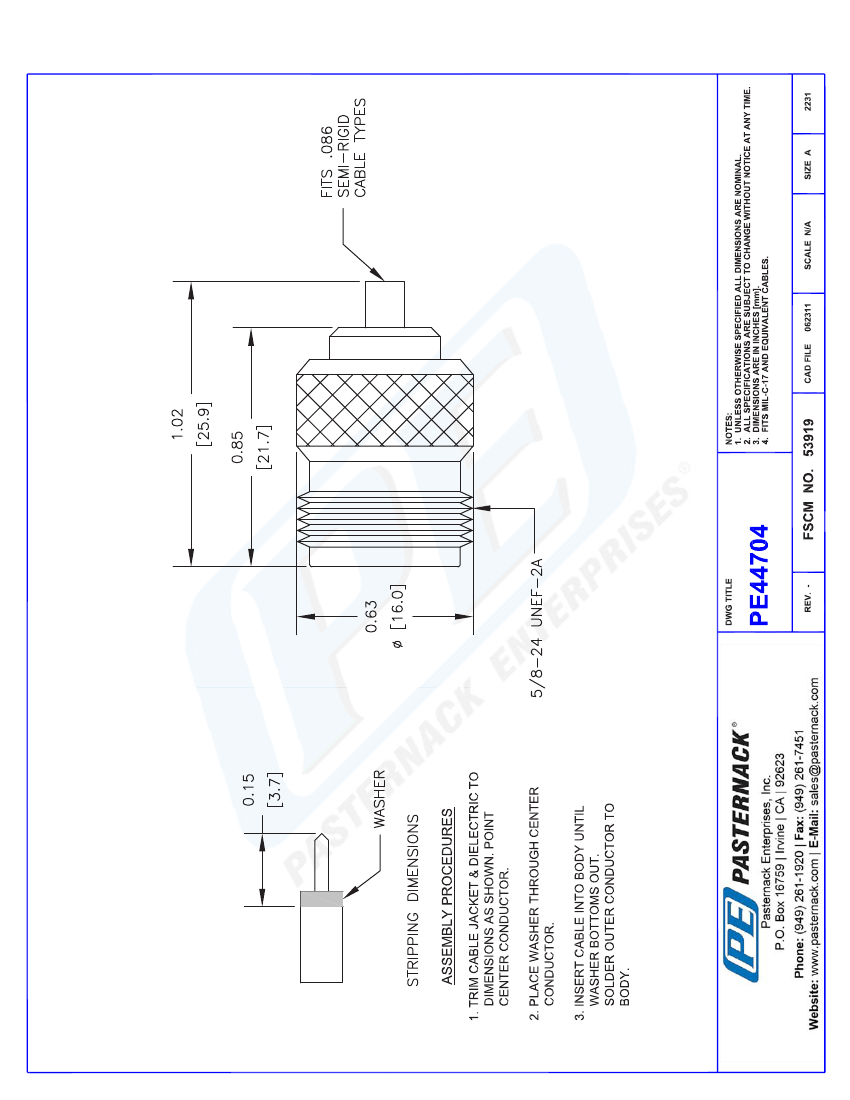

CAD Drawing
© 2013 Pasternack Enterprises All Rights Reserved
PE44704 REV
2
