TNC Female Bulkhead Precision Connector Solder Attachment
For PE-SR402AL, PE-SR402FL, PE-SR402FLJ, RG402
TECHNICAL DATA SHEET
PE44715
TNC Female Bulkhead Precision Connector Solder Attachment For PE-SR402AL, PE-SR402FL,
PE-SR402FLJ, RG402
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Connector Design
Body Style
Mount Method
TNC Female
PE-SR402AL,PE-SR402FL,PE-SR402FLJ,RG402
Solder/Solder
Precision
Straight
Bulkhead
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
DC to 6
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.992 [25.2]
0.69 [17.53]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
TNC Female
Beryllium Copper, Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
TNC Female Bulkhead Precision Connector Solder Attachment For PE-SR402AL, PE-SR-
402FL, PE-SR402FLJ, RG402 PE44715
PE44715 REV
1
TNC Female Bulkhead Precision Connector Solder Attachment
For PE-SR402AL, PE-SR402FL, PE-SR402FLJ, RG402
TECHNICAL DATA SHEET

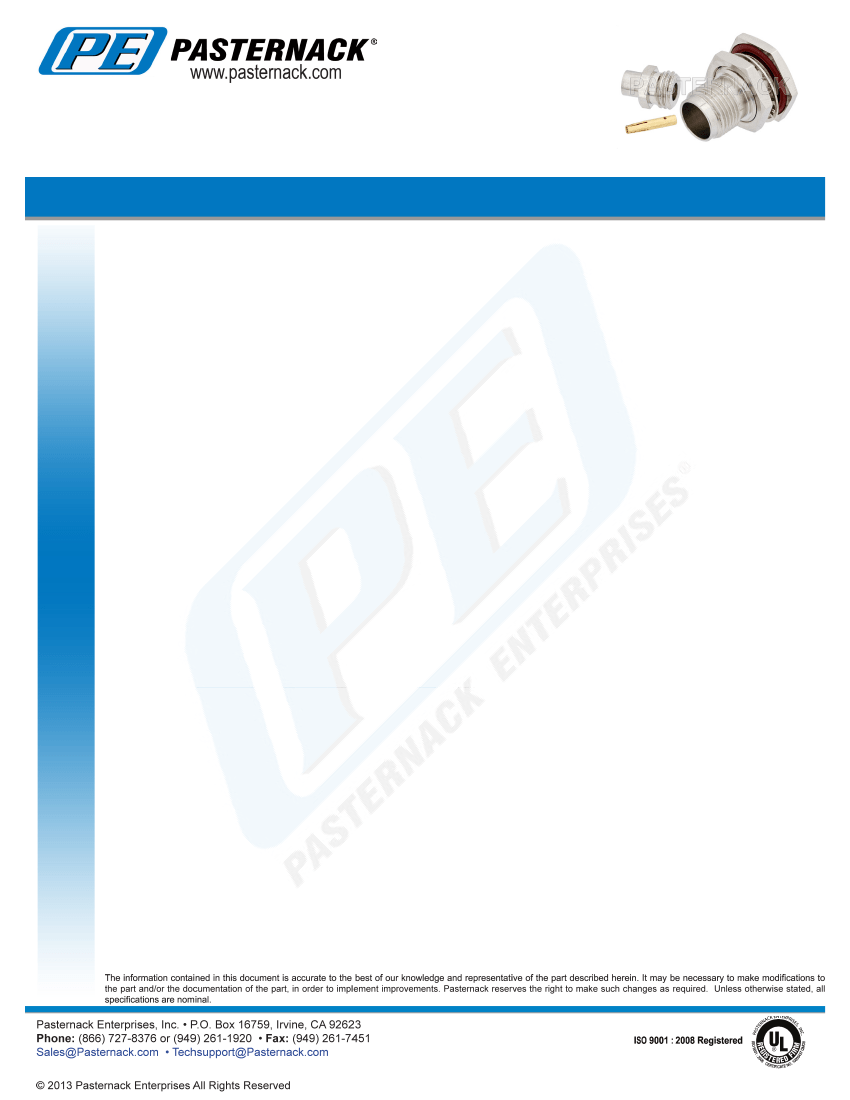

Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44715
TNC Female Bulkhead Precision Connector Solder Attachment For PE-SR402AL, PE-SR402FL, PE-SR402FLJ, RG402 from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
TNC Female Bulkhead Precision Connector Solder Attachment For PE-SR402AL, PE-SR402FL,
PE-SR402FLJ, RG402 PE44715
URL:
http://www.pasternack.com/tnc-female-standard-pe-sr402al-pe-sr402fl-pe-sr402flj-connector-pe44715-p.aspx
PE44715 REV
2
TNC Female Bulkhead Precision Connector Solder Attachment
For PE-SR402AL, PE-SR402FL, PE-SR402FLJ, RG402
PE44715

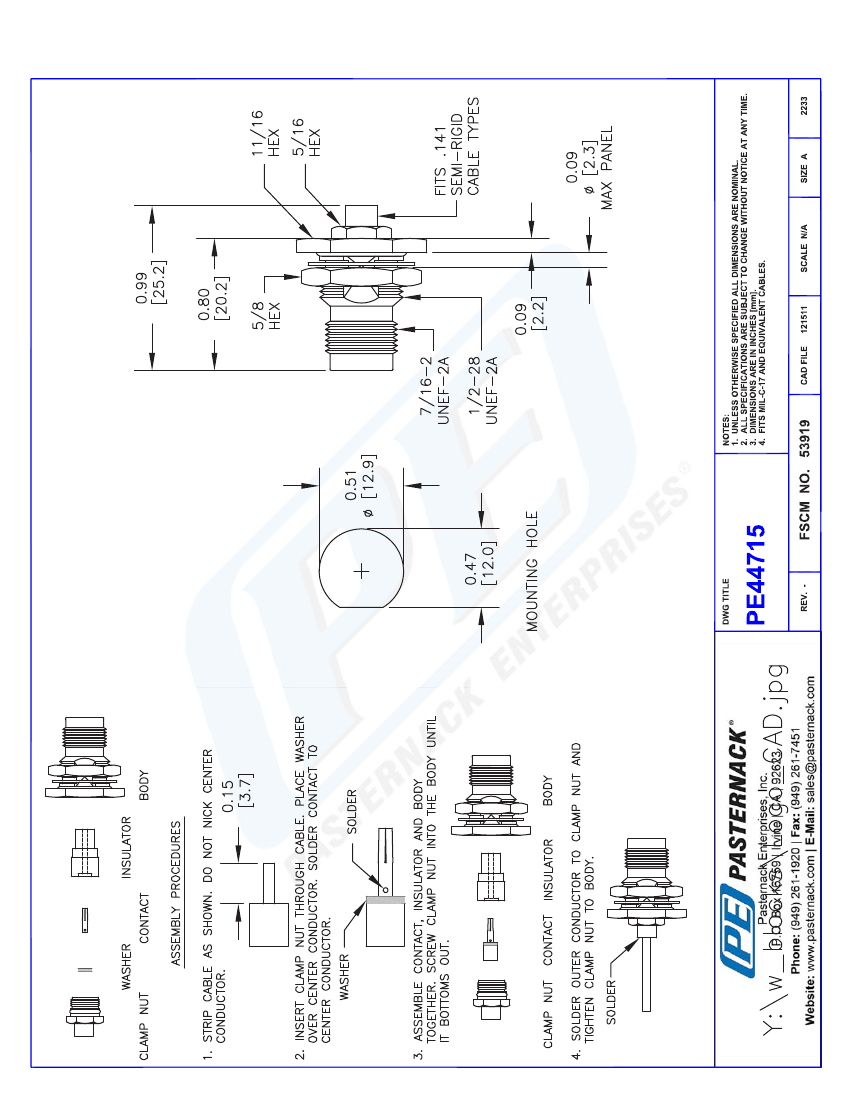

CAD Drawing
