SMA Female to N Male QD Adapter
TECHNICAL DATA SHEET
SMA Female to N Male QD Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
SMA Female
50 Ohms
MIL-C-39012
N Male
50 Ohms
MIL-C-39012
Standard
Straight
PE9684
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.668 [42.37]
0.82 [20.83]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SMA Female
Gold
MIL-G-45204
Passivated Stainless Steel
QQ-P-35
Teflon
N Male
Gold
MIL-G-45204
Passivated Stainless Steel
QQ-P-35
Passivated Stainless Steel
QQ-P-35
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female to N Male QD Adapter PE9684
PE9684 REV
1
SMA Female to N Male QD Adapter
TECHNICAL DATA SHEET

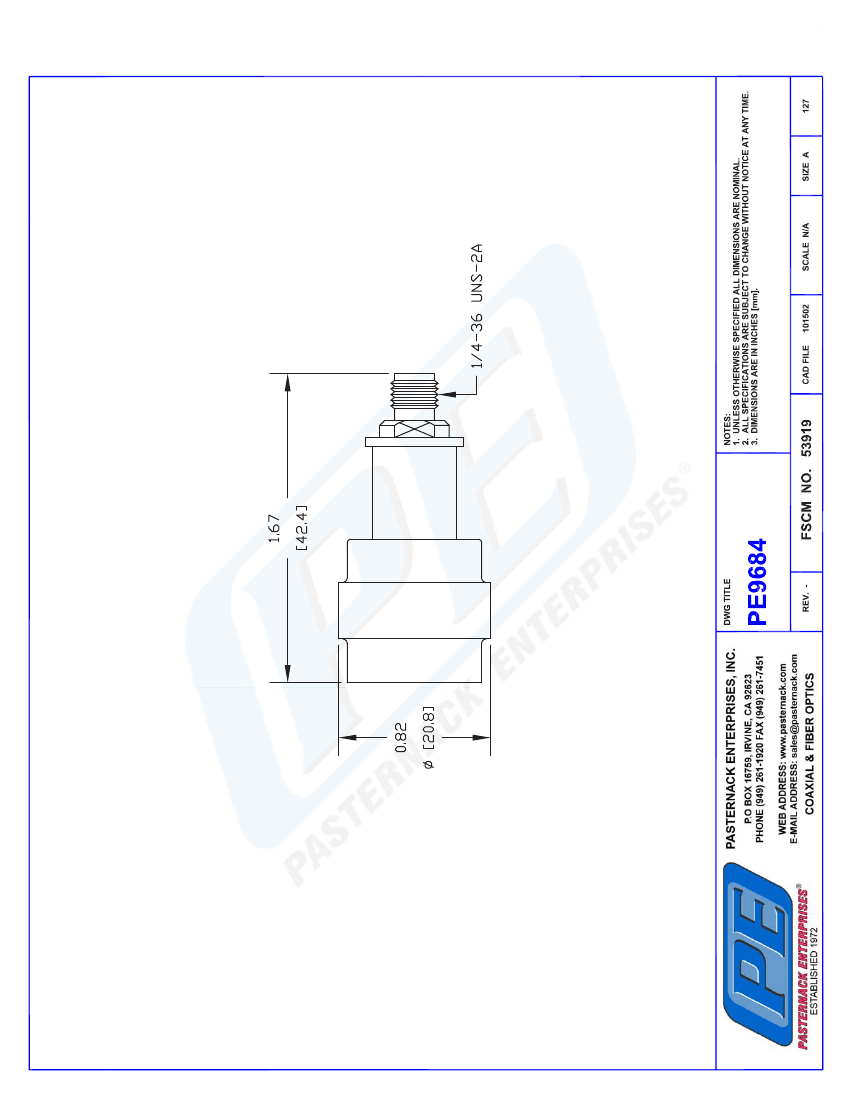

Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9684
URL:
http://www.pasternack.com/sma-female-n-male-straight-adapter-pe9684-p.aspx
SMA Female to N Male QD Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9684 REV
2
