SUBMINIATURE
E Series
Features
4 current ratings
Choice of actuator
5 terminal types
3 contact arrangements
Long life coil spring mechanism
DC ratings available upon request
High-temperature version available
Subminiature modules take less space
than individual subminiature switches
fastened side-by-side. For applications
requiring 2, 3, 4 or 5-circuit control in a
compact space, the special molded case
design helps speed assembly since there
is only one part to handle and install rather
than 2, 3, 4 or 5 individual switches.

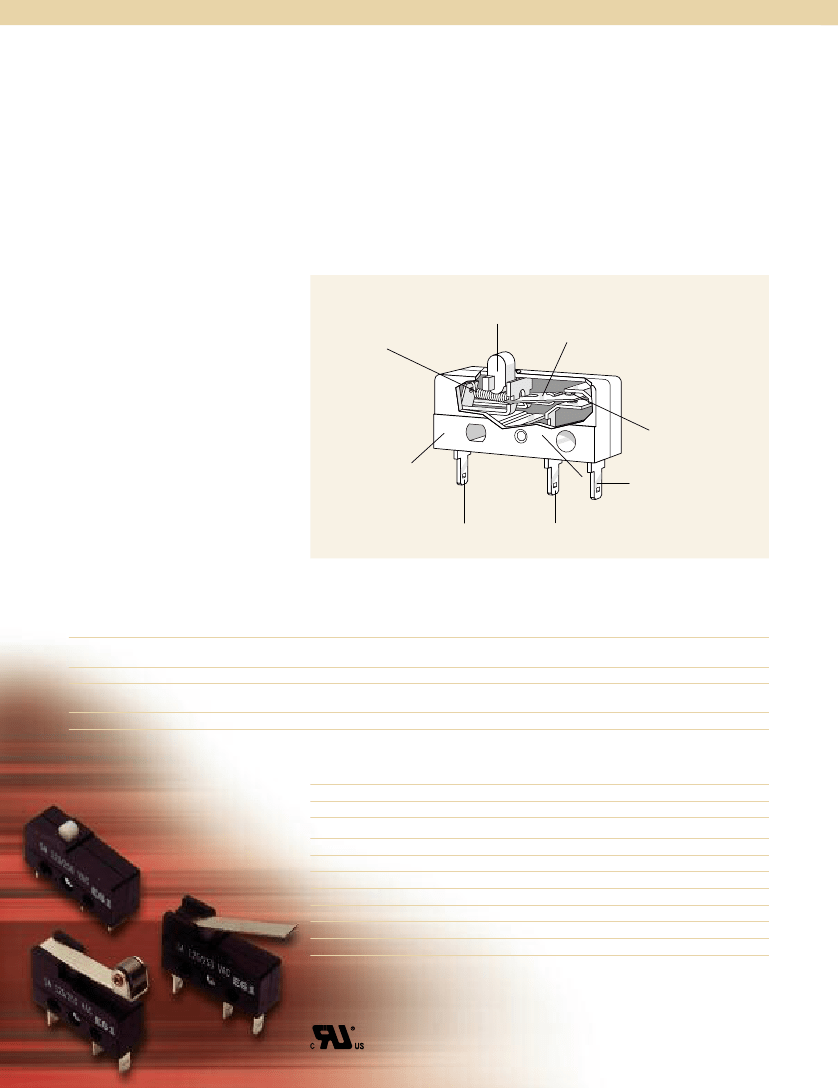

Thermoplastic
case
NC terminal
Silver contacts or
gold crosspoint
contacts
Stainless steel spring
Thermoplastic
actuating button
Copper alloy blade
Common terminal
NO terminal
Electrical Ratings
Switch
Series
EN61058 Rating
UL1054 Rating
Electrical Life at Rated Load
According to VDE
According to UL
(Min. Operations)
(Min. Operations)
E61
E62
E63
E64
*Indicates 100K life available.
N/A
N/A
N/A
N/A
5A, 125/250VAC
5A, 30VDC
(optional)
10.1A, 125/250VAC; 1/4HP, 125VAC
0.1A, 125VAC
0.25A, 30VDC
(optional)
13A, 125VAC; 10.1A, 250VAC
N/A
N/A
N/A
N/A
6,000
6,000
6,000*
6,000
Specifications
Electrical
Temperature Rating:
Flammability Rating:
Materials
-40° to +85°C, +130° optional using thermoset material
UL94HB
Thermoplastic
Thermoplastic Acetal
Silver-Plated Commercial Bronze
Beryllium Copper
Stainless Steel
Cold Rolled Steel (Nickel-Plated)
Fine Silver
(except E63 — Gold Crosspoint)
Case:
Actuating Button:
Terminals:
Moving Blade:
Spring:
Auxiliary Actuator:
Contacts:
Dimensions
inches (mm)
PCB Footprint
0.093
(2.36)
0.781
(19.84)
Terminals
C
NO
0.405
(10.29)
NC
QC
0.250
(6.35)
0.250
(6.35)
Short Solder
0.125
(3.18)
0.058
(1.47)
0.063 (1.60) Ø (3)
0.237 (6.02) — PCB Terminals Straight Down Only
0.093
(2.36)
0.300
(7.62)
0.093 (2.36)
0.143 (3.63)
–00A
QC
0.344
(8.74)
–10A
Barrel
0.177
(4.50)
Actuators
Many special forms and lengths of actuators
are available. Standard type integral hinged
lever and roller actuators are available in
choice of 2 pivot positions. Actuation
lengths are dimensioned from centerline of
switch mounting hole as shown.
0.375
(9.53)
0.352
(8.94)
0.087 (2.21)
0.095 (2.41)
Reference
Line
Nominal
Operate
Position
0.050
(1.27)
0.110 (2.79)
0.073 (1.85) I.D. with
0.032 (0.81) Clinch Opening
–30A
PCB
–40A
COM
N.O.
N.C.
0.093
(2.36)
0.094 (2.39)
0.109 (2.77)
0.073
(1.85)
0.405
(10.29)
0.237
(6.02)
0.087 (2.21) Dia. Hole
0.095 (2.41)
0.375
+
0.005
-
(9.53
+
0.13)
-
0.133 (3.378) Standard Actuator Width
0.160
(4.06)
0.191
(4.85)
0.051 (1.30)
C
of Actuating Button
L
0.483
(12.268)
0.066
(1.676)
0.125
(3.175)
Actuation
Length
–50A
Actuator Specifications
Maximum
Operating Force
(gms.)
Actuator Switch
Type
E61
Type
E62
E63
E64
Maximum
Pre-Travel
inches
(mm)
Operating
Point*
inches
(mm)
Minimum Max. Movement Actuation
Over-Travel
Differential
Length**
inches
inches
inches
(mm)
(mm)
(mm)
High Ratio
Standard Ratio
Reference
Line
–00A
–00R
–50R
–00H
–50H
–00K
–50K
90
30
10
27
9
30
10
212
65
22
56
20
65
33
90
30
10
27
9
30
10
335
110
40
100
35
110
40
0.030
(0.76)
0.130
(3.30)
0.379
(9.63)
0.144
(3.66)
0.416
(10.57)
0.131
(3.33)
0.379
(9.63)
0.330±0.015
(8.38±0.38)
0.574±0.054
(14.58±1.37)
0.570±0.156
(14.48±3.96)
0.350±0.030
(8.89±0.76)
0.350±0.175
(8.89±4.45)
0.570±0.030
(14.48±0.76)
0.570±0.158
(14.48±4.01)
0.040
(1.06)
0.030
(0.76)
0.050
(1.27)
0.040
(1.02)
0.050
(1.27)
0.030
(0.76)
0.040
(1.02)
0.004
(0.10)
0.020
(0.51)
0.050
(1.27)
0.020
(0.51)
0.050
(1.27)
0.020
(0.51)
0.050
(1.27)
—
—
0.196
(4.98)
0.322
(8.18)
0.271
(6.88)
0.396
(10.06)
0.203
(5.16)
0.326
(8.28)
Terminals
Subminiature series is available with quick
connect. 0.093″ (2.36mm) wide (mates
with AMP Part No. 60432-1) and 0.110″
(2.794mm) wide (mates with AMP Part
No. 42068-1). Also available in short solder
terminal 0.143″ (3.63mm) wide x 0.125″
(3.18mm) long, and PCB terminal 0.051″
(1.30mm) wide x 0.191″ (4.85mm) long.
Terminal
SPDT
SPST NO
SPST NC
*Measured above reference line. Refer to dimensional drawing above. **Actuator tolerance of ±0.031 inches (0.79mm).
Circuitry
Contact arrangement available in choice of
single pole double throw or single pole sin-
gle throw, either normally open or normally
closed. In general, normally open may be
specified by changing suffix number from
00 to 01 and normally closed by changing
suffix number to 02.
Example: E61-01A is normally open, and
E61-02A is normally closed.
Ordering Information
Select the current rating you need. Combine
the corresponding Series/Prefix number
with the appropriate suffix number for the
switch type, circuitry and terminals you
require. See additional note under terminals.
Example: To order the E61-50R with 0.110″
(2.79mm) QC terminals, order an E61-80R.
Note: 0.093″ (2.36mm) Quick Connect
terminals are standard. To order solder
terminals add 10 to suffix. To order 0.110″
(2.79mm) QC terminals add 30 to suffix.
For PCB terminals consult factory.
Example: The basic E61-00A becomes
E61-30A for 0.110″ (2.79mm) QC terminals.
For PCB terminals consult factory for
part numbers.
0.093″ QC
E61-00A
†
Short Solder E61-10A
0.110″ QC
E61-30A
Barrel
†
PCB
†
†
E61-01A
E61-11A
E61-31A
E61-41A
E61-51A
E61-02A
E61-12A
E61-32A
E61-42A
E61-52A
E61-40A
E61-50A
Not available on E64 Series.
Mounting
Recommended mounting screw: #2-56
round head. Recommended torque on
screw: 2 inch lbs. max.
Specifications subject to change without notice.
17
Dimensions
— Modules
inches (mm)
PCB Footprint
— Modules
Dimension
A
0.087 (2.21)
0.095 (2.41)
0.483
(12.27)
COM
N.O.
N.C.
C
0.063 (1.60) Ø (3)
0.405
(10.29)
NO
NC
Reference
Line
0.237 (6.02) — PCB Terminals Straight Down Only
0.093
(2.36)
0.094 (2.39)
0.109 (2.77)
0.103
(2.62)
0.405
(10.29)
0.375
+
0.005
-
(9.53
+
0.13)
-
0.781
(19.84)
0.087 (2.21) Dia
0.095 (2.41) Hole
0.250
(6.35)
0.237
(6.02)
0.200
(5.08)
0.020
(0.51)
(3 places)
Actuators
— Modules
0.093
(2.36)
Terminals
QC
0.250
(6.35)
Short
Solder
0.125
(3.18)
0.058
(1.47)
0.050
(1.27)
QC
PCB
A Dimension
2 PDT
3 PDT
4 PDT
5 PDT
0.470±0.020 (11.934±0.51)
0.672±0.020 (17.07±0.51)
0.875±0.020 (22.23±0.51)
1.086±0.020 (27.58±0.51)
Many special forms and lengths of actuators
are available. Standard type integral hinged
lever and roller actuators are available in
choice of 2 pivot positions. Actuation
lengths are dimensioned from centerline of
switch mounting hole as shown.
0.344
(8.74)
0.160
(4.06)
0.191
(4.85)
0.093 (2.36)
0.143 (3.63)
0.110 (2.80)
0.051 (1.30)
–00A
–10A*
–30A
–50A*
*Not available on E64 Series
0.133 (3.378) Standard Actuator Width
C
of Actuating Button
L
0.483
(12.268)
0.066
(1.676)
0.125
(3.175)
Actuation
Length
Terminals
— Modules
Subminiature modules are available with quick connect. 0.093″ (2.362mm) wide (mates with
AMP Part No. 60432-1) and 0.110″ (2.794mm) wide (mates with AMP Part No. 42068-1).
Also available in short solder terminal 0.143″ (3.632mm) wide x 0.125″ (3.175mm) long, and
PCB terminal 0.051″ (1.295mm) wide x 0.191″ (4.851mm) long.
High Ratio
Standard Ratio
Reference
Line
Ordering Information
— Modules
Select the current rating you need. Combine the corresponding Series/Prefix number with
the appropriate suffix number for the switch type and terminals you require. Module
construction not available for E64.
*For additional actuator styles consult factory.
Part Number Suffix
3PDT
4PDT
–03HM
–04HM
–13HM
–14HM
–33HM
–34HM
Consult Factory
–53HM
–54HM
–63HM
–64HM
–83HM
–84HM
Consult Factory
Switch Type
Standard Ratio
High Ratio
Terminal
0.093″ (2.362mm) QC
Solder
0.110″ (2.794mm) QC
PCB
0.093″ (2.362mm) QC
Solder
0.110″ (2.794mm) QC
PCB
2PDT
–02HM
–12HM
–32HM
–52HM
–62HM
–82HM
5PDT
–05HM
–15HM
–35HM
–55HM
–65HM
–85HM
18
Specifications subject to change without notice.
