BS616LV1615FCP70 datasheet, PDF

Datasheet> All Categories > storage> storage> BS616LV1615FCP70

BS616LV1615FCP70: DescriptionStandard SRAM, 1MX16, 70ns, CMOS, PBGA48, MINIBGA-48; Categorystorage storage; File Size251KB，8 Pages; ManufacturerBrilliance; Environmental Compliance

Download Datasheet Parametric Compare View All

BS616LV1615FCP70 Overview

Standard SRAM, 1MX16, 70ns, CMOS, PBGA48, MINIBGA-48

BS616LV1615FCP70 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Brilliance
package instruction	LFBGA, BGA48,6X8,30
Reach Compliance Code	unknown
Maximum access time	70 ns
Spare memory width	8
I/O type	COMMON
JESD-30 code	R-PBGA-B48
length	12 mm
memory density	16777216 bit
Memory IC Type	STANDARD SRAM
memory width	16
Humidity sensitivity level	3
Number of functions	1
Number of terminals	48
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LFBGA
Encapsulate equivalent code	BGA48,6X8,30
Package shape	RECTANGULAR
Package form	GRID ARRAY, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.4 mm
Minimum standby current	1.5 V
Maximum slew rate	0.09 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	BALL
Terminal pitch	0.75 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	9 mm

Preview

Download Datasheet

View All

BSI

FEATURES

Very Low Power/Voltage CMOS SRAM

1M X 16 bit

(Dual CE Pins)

DESCRIPTION

BS616LV1615

• Vcc operation voltage : 4.5~5.5V

• Very low power consumption :

Vcc = 5.0V C-grade: 113mA (@55ns) operating current

I -grade: 115mA (@55ns) operating current

C-grade: 90mA (@70ns) operating current

I -grade: 92mA (@70ns) operating current

15uA (Typ.)

CMOS standby current

• High speed access time :

-55

55ns

-70

70ns

• Automatic power down when chip is deselected

• Three state outputs and TTL compatible

• Fully static operation

• Data retention supply voltage as low as 1.5V

• Easy expansion with CE2,CE1 and OE options

• I/O Configuration x8/x16 selectable by LB and UB pin

The BS616LV1615 is a high performance, very low power CMOS Static

Random Access Memory organized as 1,048,576 words by 16 bits and

operates from a range of 4.5V to 5.5V supply voltage.

Advanced CMOS technology and circuit techniques provide both high

speed and low power features with a typical CMOS standby current

15uA

at 5.0V/25

C and maximum access time of 55ns at 5.0V/85

Easy memory expansion is provided by an active LOW chip enable(CE1)

, active HIGH chip enable (CE2), active LOW output enable(OE) and

three-state output drivers.

The BS616LV1615 has an automatic power down feature, reducing the

power consumption significantly when chip is deselected.

The BS616LV1615 is available in 48-pin BGA package.

PRODUCT FAMILY

OPERATING

TEMPERATURE

C to +70

-40

C to +85

Vcc

RANGE

4.5V ~ 5.5V

SPEED

(ns)

55ns : 4.5~5.5V

70ns : 4.5~5.5V

POWER DISSIPATION

STANDBY

Operating

CCSB1

, Max)

PKG TYPE

Vcc=5V

55ns

Vcc=5V

70ns

BS616LV1615FC

BS616LV1615FI

55 / 70

110uA

220uA

113mA

115mA

90mA

92mA

BGA-48-0912

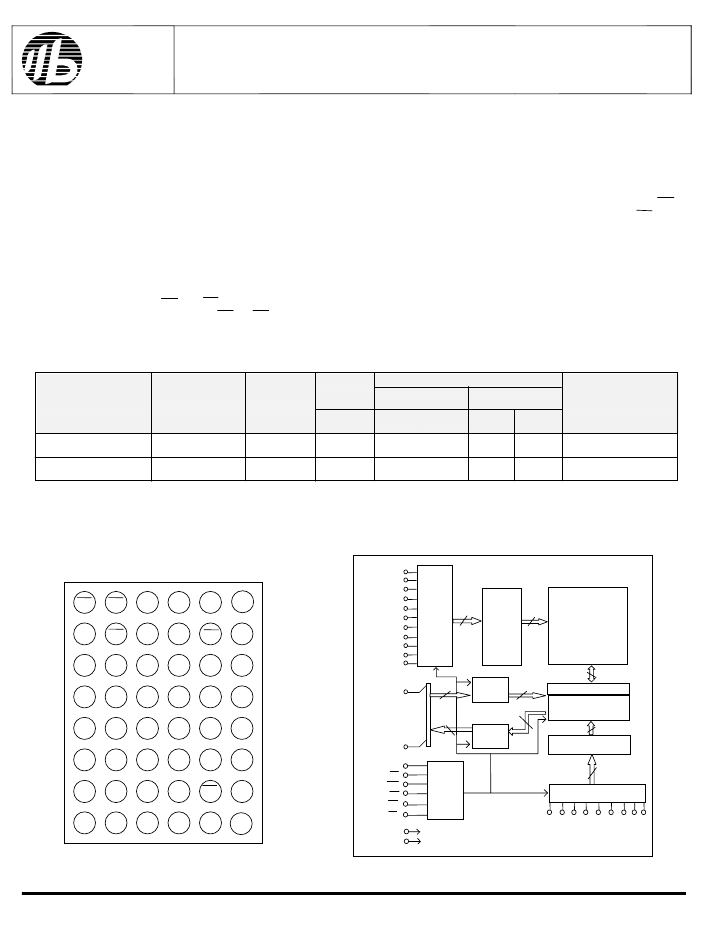

PIN CONFIGURATIONS

VSS

D10

D11

A17

A14

A12

A16

A15

A13

A10

CE1

A11

CE2

VCC

VSS

BLOCK DIAGRAM

A17

A16

A15

A14

A13

A12

Address

Input

Buffer

Row

Decoder

2048

Memory Array

2048 x 8192

8192

Data

Input

Buffer

Column I/O

VCC

D14

D15

A 18

D12

D13

A19

D15

CE2

CE1

Vcc

Vss

Write Driver

Sense Amp

512

Column Decoder

Data

Output

Buffer

Control

Address Input Buffer

A11 A10 A9 A8 A7 A6 A5 A18 A19

48-Ball CSP top View

Brilliance Semiconductor, Inc

. reserves the right to modify document contents without notice.

R0201-BS616LV1615

Revision 2.1

Jan.

2004

BS616LV1615FCP70 Related Products

	BS616LV1615FCP70	BS616LV1615FIP70	BS616LV1615FCG55	BS616LV1615FCG70	BS616LV1615FCP55	BS616LV1615FIG55	BS616LV1615FIG70	BS616LV1615FIP55
Description	Standard SRAM, 1MX16, 70ns, CMOS, PBGA48, MINIBGA-48	Standard SRAM, 1MX16, 70ns, CMOS, PBGA48, MINIBGA-48	Standard SRAM, 1MX16, 55ns, CMOS, PBGA48, MINIBGA-48	Standard SRAM, 1MX16, 70ns, CMOS, PBGA48, MINIBGA-48	Standard SRAM, 1MX16, 55ns, CMOS, PBGA48, MINIBGA-48	Standard SRAM, 1MX16, 55ns, CMOS, PBGA48, MINIBGA-48	Standard SRAM, 1MX16, 70ns, CMOS, PBGA48, MINIBGA-48	Standard SRAM, 1MX16, 55ns, CMOS, PBGA48, MINIBGA-48
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Brilliance	Brilliance	Brilliance	Brilliance	Brilliance	Brilliance	Brilliance	Brilliance
package instruction	LFBGA, BGA48,6X8,30	LFBGA, BGA48,6X8,30	LFBGA, BGA48,6X8,30	LFBGA, BGA48,6X8,30	LFBGA, BGA48,6X8,30	LFBGA, BGA48,6X8,30	LFBGA, BGA48,6X8,30	LFBGA, BGA48,6X8,30
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	70 ns	70 ns	55 ns	70 ns	55 ns	55 ns	70 ns	55 ns
Spare memory width	8	8	8	8	8	8	8	8
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PBGA-B48	R-PBGA-B48	R-PBGA-B48	R-PBGA-B48	R-PBGA-B48	R-PBGA-B48	R-PBGA-B48	R-PBGA-B48
length	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	16	16	16	16	16	16	16	16
Humidity sensitivity level	3	3	3	3	3	3	3	3
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	48	48	48	48	48	48	48	48
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	85 °C	70 °C	70 °C	70 °C	85 °C	85 °C	85 °C
organize	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFBGA	LFBGA	LFBGA	LFBGA	LFBGA	LFBGA	LFBGA	LFBGA
Encapsulate equivalent code	BGA48,6X8,30	BGA48,6X8,30	BGA48,6X8,30	BGA48,6X8,30	BGA48,6X8,30	BGA48,6X8,30	BGA48,6X8,30	BGA48,6X8,30
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm
Minimum standby current	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum slew rate	0.09 mA	0.092 mA	0.113 mA	0.09 mA	0.113 mA	0.115 mA	0.092 mA	0.115 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL
Terminal pitch	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm
