V902-200.0M: DescriptionLVDS Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-6; CategoryPassive components oscillator; File Size77KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

V902-200.0M Overview

LVDS Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-6

V902-200.0M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Connor-Winfield
Reach Compliance Code	unknown
Other features	DIFFERENTIAL OUTPUT; ENABLE/DISABLE FUNCTION; TAPE AND REEL
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
linearity	10%
Manufacturer's serial number	V902
Installation features	SURFACE MOUNT
Nominal operating frequency	200 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVDS
Output load	100 OHM
physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	1 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

3.3V 5.0mm x 7mm

LVDS Surface Mount

High Frequency Oscillator

V902

Features:

VCXO

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

US Headquarters:

630-851-4722

European Headquarters:

+353-61-472221

The Connor-Winfield, RoHS compliant, V902 is a 3.3V

Surface Mount 5.0 x 7.5mm, Voltage Controlled Crys-

tal Oscillator (VCXO) with LVDS differential outputs

and enable/disable function. The V902 is designed for

use with applications utilizing a PLL system requiring

low jitter and tight frequency stability. No multiplication

schemes are used in this oscillator design. The sur-

face mount package is designed for high-density

mounting and is optimum for mass production.

RoHS Compliant

65 to 200MHz

3.3V Operation

Low Jitter <1pS RMS

Absolute Pull Range (APR): ±50ppm

Temperature Range: 0° to 70°C

Differential LVDS Outputs

Enable / Disable Function

Surface Mount Package

Tape and Reel Packaging

Maximum

85

7.0

Vcc+0.5

Units

°C

Vdc

Notes

Absolute Maximum Ratings

Parameter

Storage Temperature

Supply Voltage (Vcc)

Control Voltage (Vc)

Minimum

-40

-0.5

Nominal

-

Operating Specifications

Parameter

Center Frequency (Fo)

Operating Temperature Range

Supply Voltage (Vcc)

Supply Current (Icc)

Jitter:

(BW=10Hz to 20 MHz)

(BW=12kHz to 20 MHz-

SSB Phase Noise at 10Hz offset

at 100Hz offset

at 1kHz offset

at 10kHz offset

at 100kHz offset

Minimum

65

0

3.135

-

Nominal

-

3.3

-

-75

-95

-125

-140

-145

Maximum

200

70

3.465

40

5

1

-

Units

MHz

°C

Vdc

mA

ps RMS

Notes

dBc/Hz

Input Characteristics

Parameter

Minimum

Control Voltage Range (Vc)

0.3

Frequency Pullability (APR)

±50

Monotonic Linearity

-10

Input Impedance

-

Modulation Bandwidth (3dB)

25

Enable Input Voltage - Low (Vil)

-

Disable Input Voltage - High (Vih) 0.7Vcc

Parameter

Minimum

Load

-

Output Differential VOltage (Vod)

250

Duty Cycle at 50% Level

45

Rise / Fall Time 20% to 80%

-

Nominal

1.65

-

60K

-

Nominal

-

50

0.6

Maximum

3.0

-

10

-

0.3 Vcc

-

Maximum

100

450

55

1.0

Units

Vdc

ppm

%

Ohm

kHz

Vdc

Notes

1

2

LVDS Output Characteristics

Units

Ohms

mV

%

nS

Notes

3

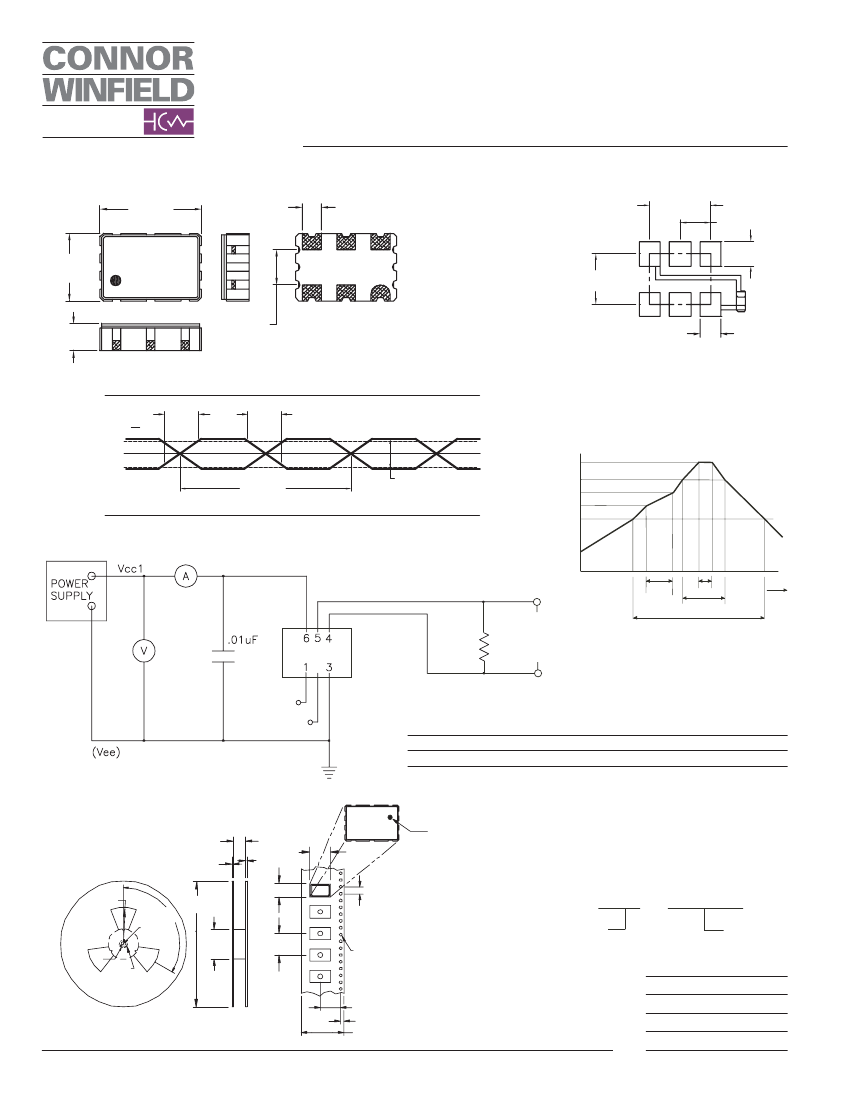

Package Characteristics

Package

Bulletin

Page

Revision

Date

Hermetically sealed, ceramic package with grounded metal cover.

Vx516

1 of 2

02

27 Oct 2008

Notes:

1. Absolute pull range (APR) is the minimum guaranteed pull range of the VCXO under all conditions over the lifetime operation. Including calibration @ 25°C,

frequency vs. change in temperature, frequency vs. change in supply voltage, frequency vs. change in load, shock and vibration and aging for ten years.

The APR is referenced to Fo. Positive Transfer Function.

2. Outputs are enabled with no connection on pad 2. When oscillator is disabled both outputs are in high impedance state

3. Vod measured with 100 ohm resistor between the tru output and the complimentary ouput.
