SMP Male Connector Solder Attachment
End Launch PCB, Up To 8 GHz
TECHNICAL DATA SHEET
SMP Male Connector Solder Attachment End Launch PCB, Up To 8 GHz
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMP Male
MIL-STD-348A
End Launch
Solder
Straight
PE44777
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
DC to 8
50
1.1:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-55 to +155
0.289 [7.34]
0.305 [7.75]
0.171 [4.34]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SMP Male
Beryllium Copper, Gold
MIL-DTL-45204
Brass, Gold
MIL-DTL-45204
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMP Male Connector Solder Attachment End Launch PCB, Up To 8 GHz PE44777
PE44777 REV
1
SMP Male Connector Solder Attachment
End Launch PCB, Up To 8 GHz
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44777
SMP Male Connector Solder Attachment End Launch PCB, Up To 8 GHz from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMP Male Connector Solder Attachment End Launch PCB, Up To 8 GHz PE44777
URL:
http://www.pasternack.com/smp-male-standard-end-launch-pcb-connector-pe44777-p.aspx
PE44777 REV
2
SMP Male Connector Solder Attachment End Launch PCB, Up To 8 GHz
PE44777

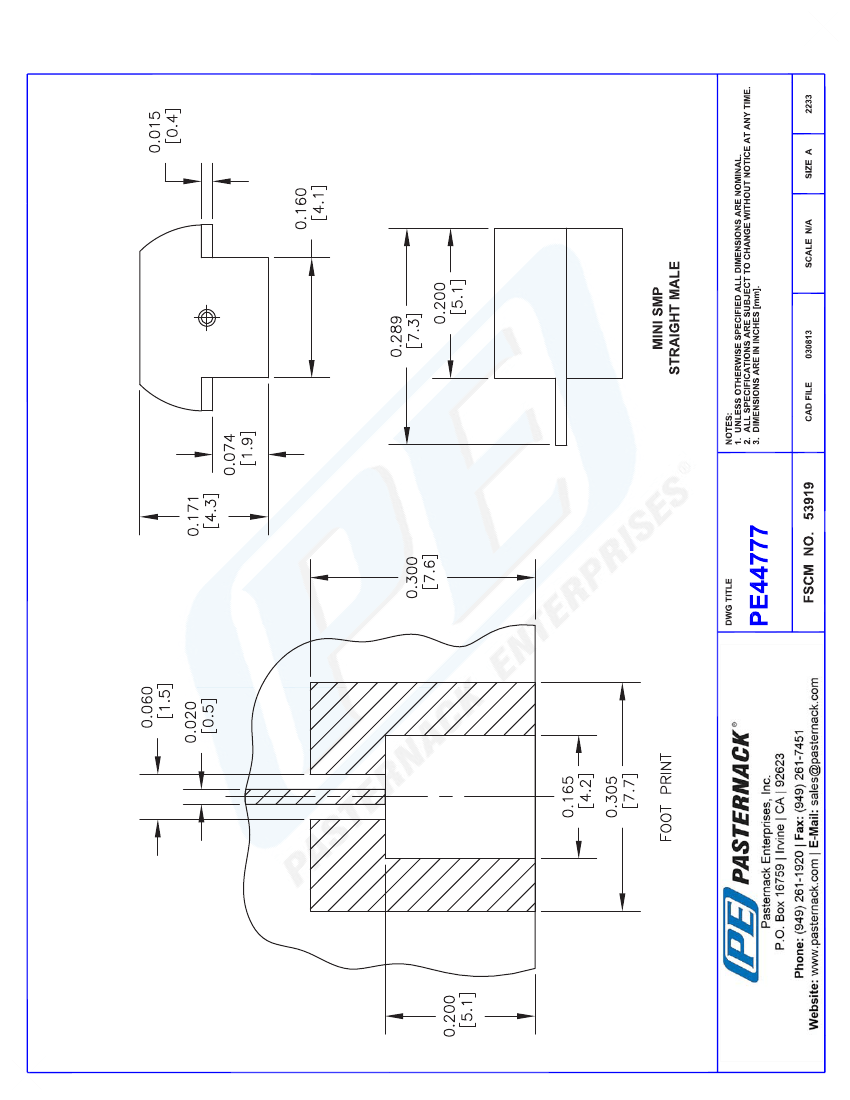

CAD Drawing
© 2013 Pasternack Enterprises All Rights Reserved
PE44777 REV
3
