QD SMA Male to SMA Female Adapter
TECHNICAL DATA SHEET
QD SMA Male to SMA Female Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
SMA Male
50 Ohms
SMA Female
50 Ohms
Standard
Straight
PE9546

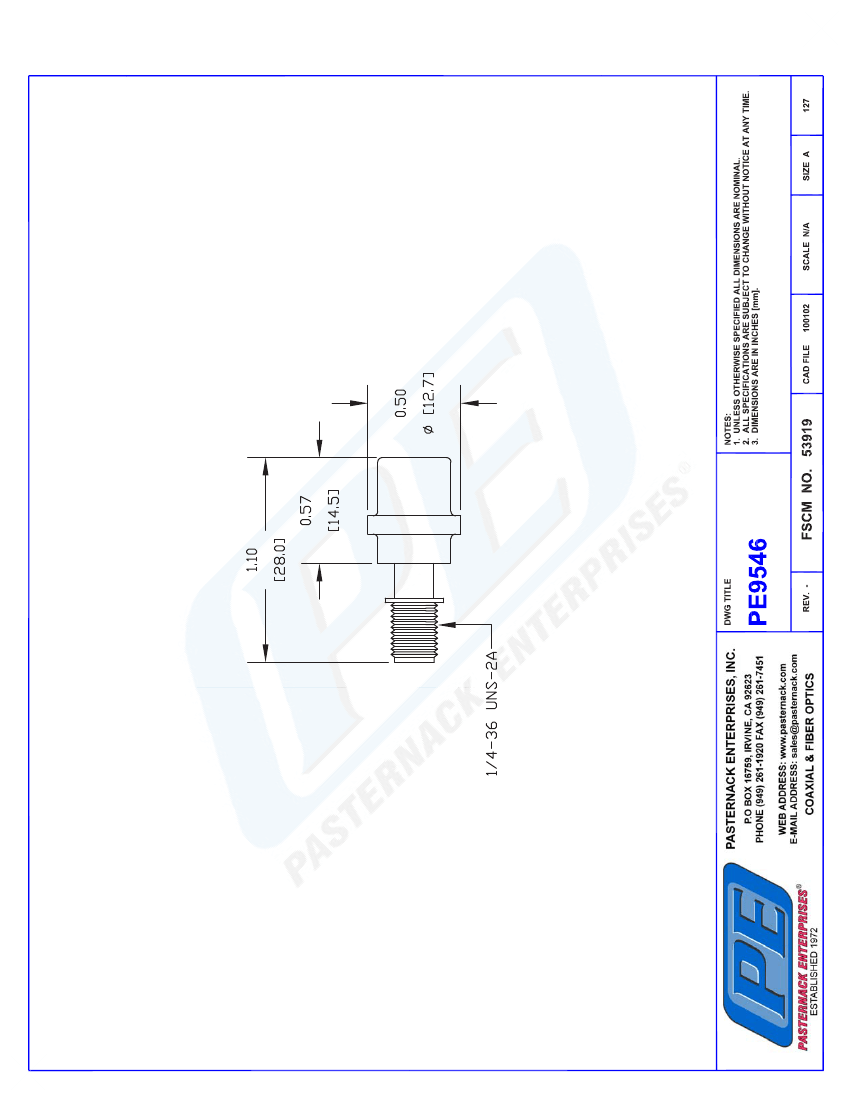

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.102 [27.99]
0.5 [12.7]
Connector 1
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
SMA Male
Gold
Passivated Stainless Steel
Beryllium Copper, Nickel
PTFE
SMA Female
Gold
Beryllium Copper, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-male-sma-female-straight-adapter-pe9546-p.aspx
QD SMA Male to SMA Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9546 REV
1
