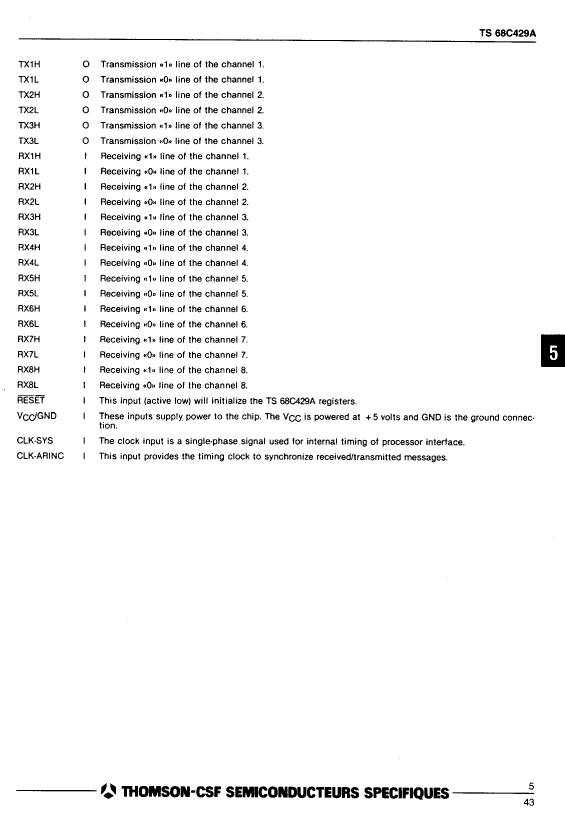

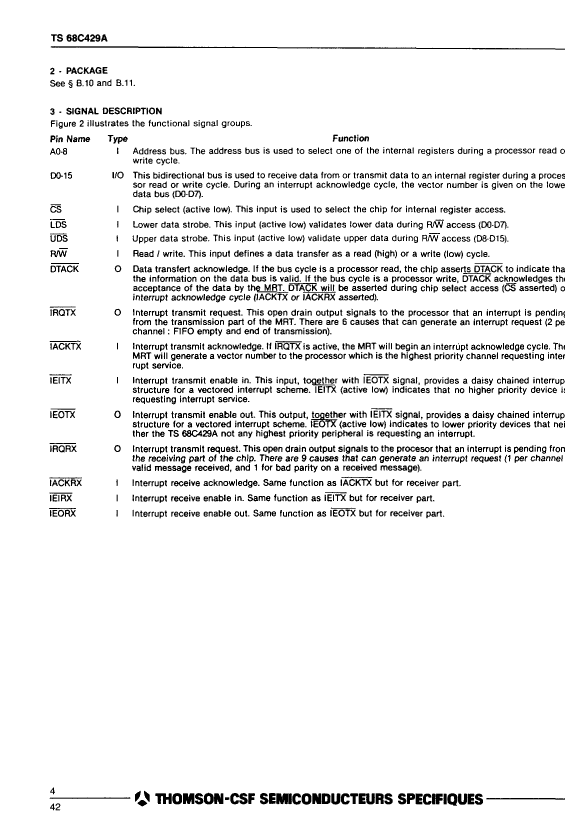

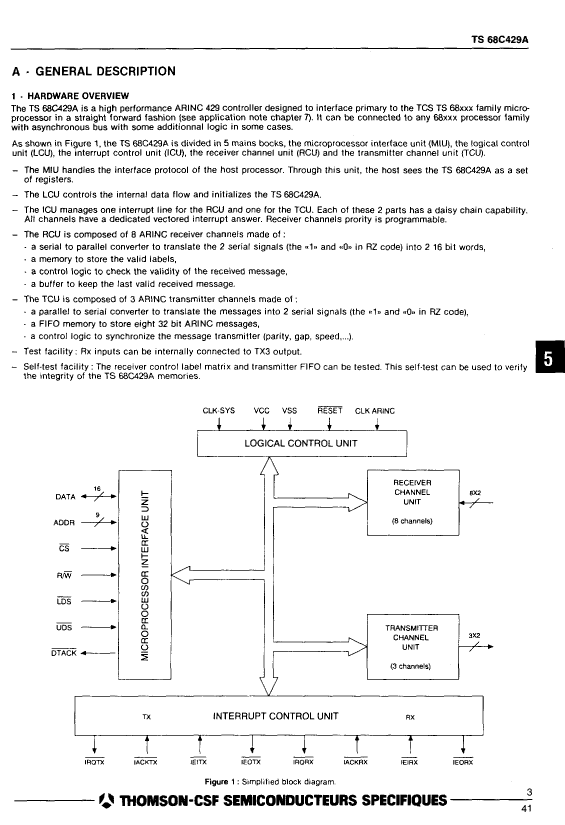

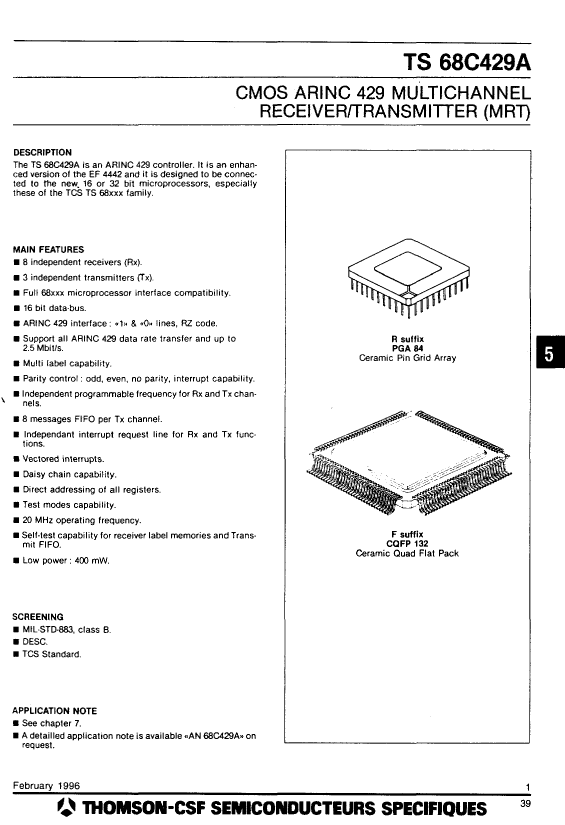

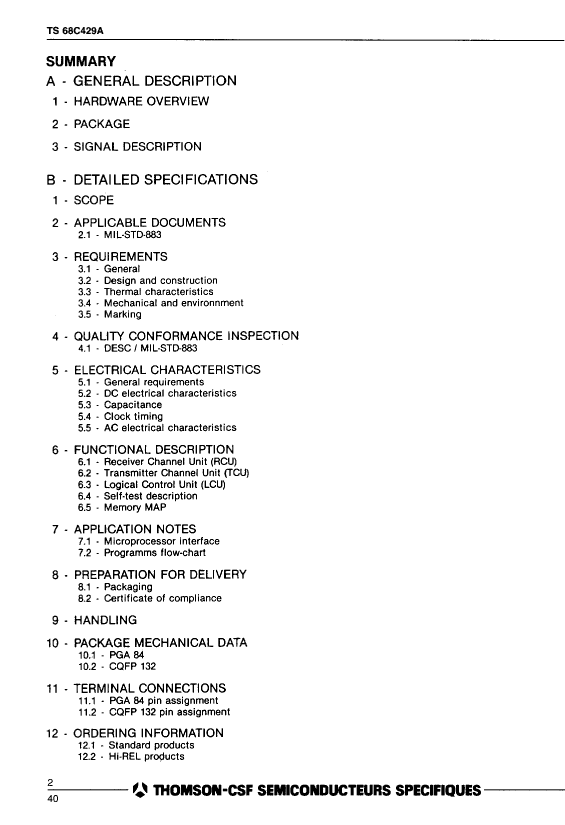

Preview

TS68C429AVF: DescriptionSerial I/O Controller, 3 Channel(s), 0.3125MBps, CMOS, CQFP132, CERAMIC, QFP-132; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，34 Pages; ManufacturerThales Group

Download Datasheet Parametric Compare View All

TS68C429AVF Overview

Serial I/O Controller, 3 Channel(s), 0.3125MBps, CMOS, CQFP132, CERAMIC, QFP-132

TS68C429AVF Parametric

Parameter Name	Attribute value
Maker	Thales Group
Parts packaging code	QFP
package instruction	,
Contacts	132
Reach Compliance Code	unknown
Address bus width	9
boundary scan	NO
Bus compatibility	68XXX
maximum clock frequency	20 MHz
Maximum data transfer rate	0.3125 MBps
External data bus width	16
JESD-30 code	S-CQFP-G132
low power mode	YES
Number of serial I/Os	3
Number of terminals	132
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Preview

Download Datasheet

View All

TS68C429AVF Related Products

	TS68C429AVF	TS68C429AMRB/C	TS68C429AMF	TS68C429AMFB/C	TS68C429AMR	TS68C429AVR
Description	Serial I/O Controller, 3 Channel(s), 0.3125MBps, CMOS, CQFP132, CERAMIC, QFP-132	Serial I/O Controller, 3 Channel(s), 0.3125MBps, CMOS, CPGA84, CERAMIC, PGA-84	Serial I/O Controller, 3 Channel(s), 0.3125MBps, CMOS, CQFP132, CERAMIC, QFP-132	Serial I/O Controller, 3 Channel(s), 0.3125MBps, CMOS, CQFP132, CERAMIC, QFP-132	Serial I/O Controller, 3 Channel(s), 0.3125MBps, CMOS, CPGA84, CERAMIC, PGA-84	Serial I/O Controller, 3 Channel(s), 0.3125MBps, CMOS, CPGA84, CERAMIC, PGA-84
Parts packaging code	QFP	PGA	QFP	QFP	PGA	PGA
Contacts	132	84	132	132	84	84
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Address bus width	9	9	9	9	9	9
boundary scan	NO	NO	NO	NO	NO	NO
Bus compatibility	68XXX	68XXX	68XXX	68XXX	68XXX	68XXX
maximum clock frequency	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
Maximum data transfer rate	0.3125 MBps	0.3125 MBps	0.3125 MBps	0.3125 MBps	0.3125 MBps	0.3125 MBps
External data bus width	16	16	16	16	16	16
JESD-30 code	S-CQFP-G132	S-CPGA-P84	S-CQFP-G132	S-CQFP-G132	S-CPGA-P84	S-CPGA-P84
low power mode	YES	YES	YES	YES	YES	YES
Number of serial I/Os	3	3	3	3	3	3
Number of terminals	132	84	132	132	84	84
Maximum operating temperature	85 °C	125 °C	125 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	GRID ARRAY	FLATPACK	FLATPACK	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY	INDUSTRIAL
Terminal form	GULL WING	PIN/PEG	GULL WING	GULL WING	PIN/PEG	PIN/PEG
Terminal location	QUAD	PERPENDICULAR	QUAD	QUAD	PERPENDICULAR	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Maker	Thales Group	-	Thales Group	Thales Group	Thales Group	Thales Group
