PE44774 Overview

SMP Female Right Angle Connector Crimp/Crimp Attachment for RG178, RG196 Up To 8 GHz

SMP Female Right Angle Connector Crimp/Crimp
Attachment For RG178B, RG196A, Up To 8 GHz

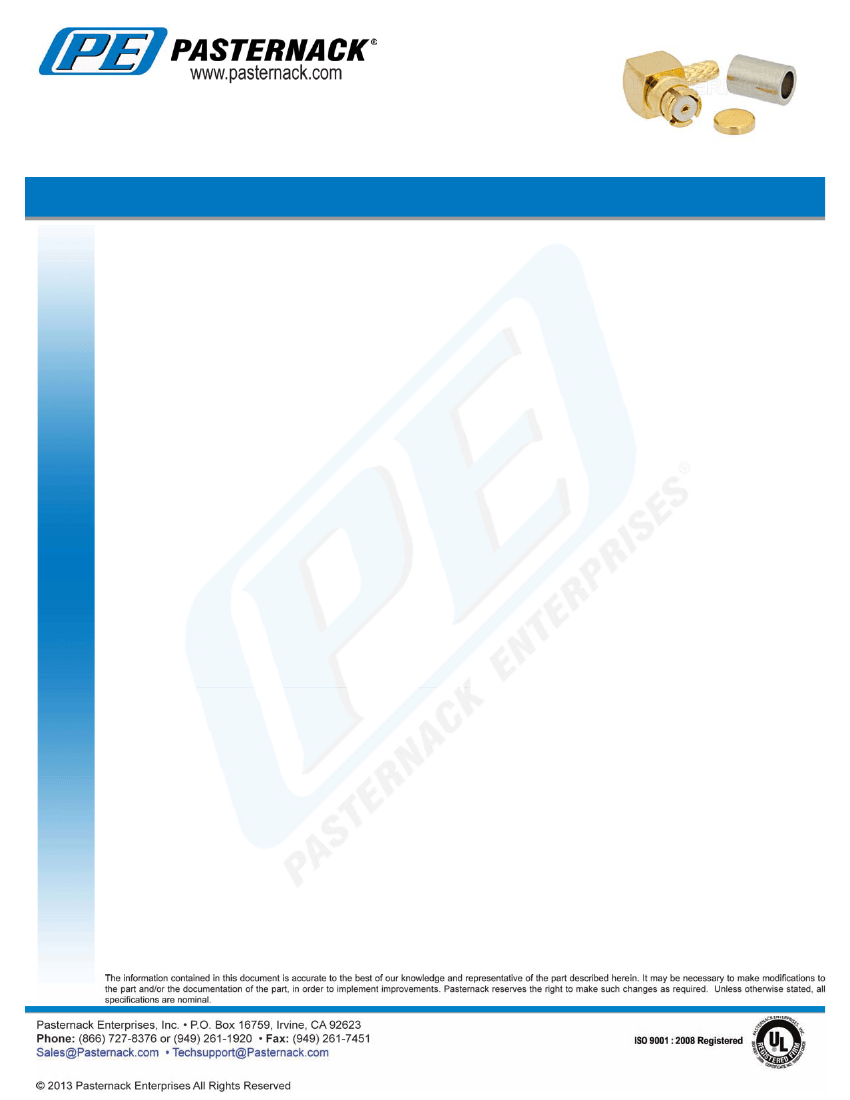

TECHNICAL DATA SHEET
PE44774
SMP Female Right Angle Connector Crimp/Crimp Attachment For RG178B, RG196A, Up To 8 GHz
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMP Female
MIL-STD-348A
RG178B,RG196A
Crimp/Crimp
Right Angle
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
DC to 8
50
1.1:1
Mechanical Specifications
Temperature
Operating Range, deg C

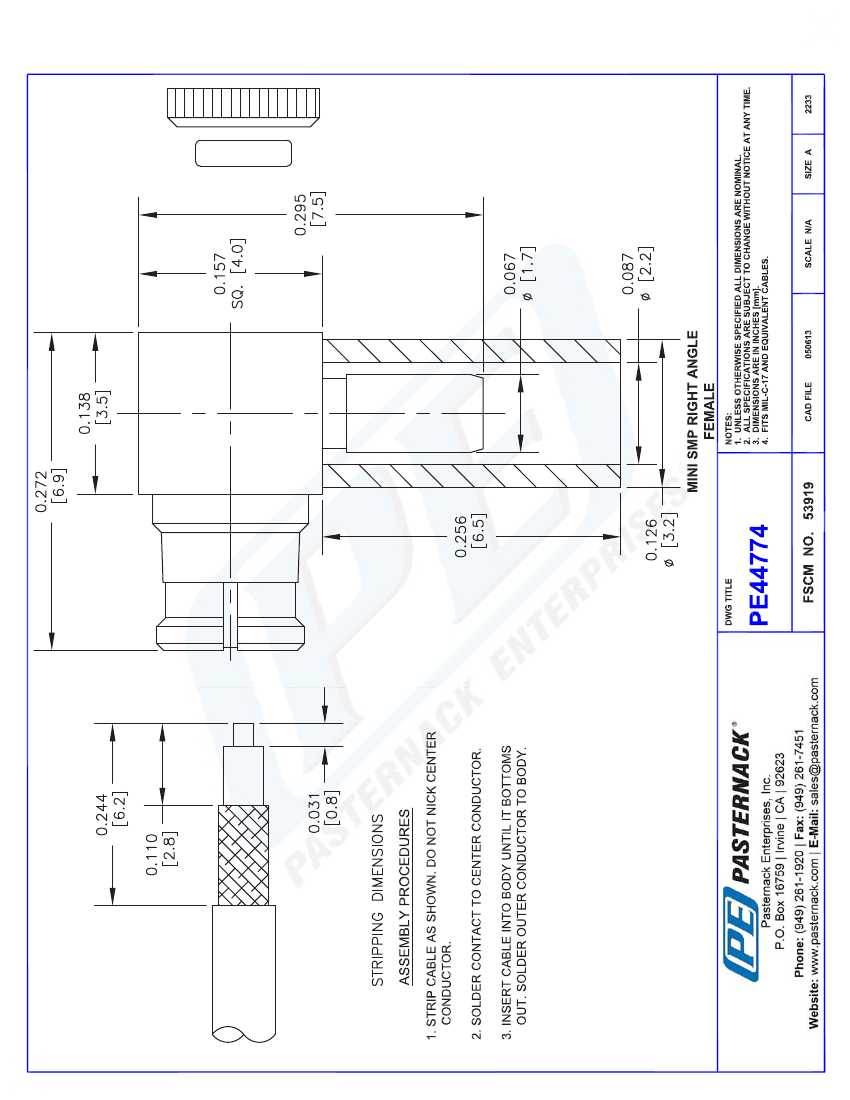

Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-55 to +155
0.272 [6.91]
0.157 [3.99]
0.295 [7.49]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Outer Conductor Material and Plating
Body Material and Plating
Body Plating Specification
Dielectric Type
SMP Female
Beryllium Copper, Gold
MIL-DTL-45204
Beryllium Copper, Gold
Brass, Gold
MIL-DTL-45204
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMP Female Right Angle Connector Crimp/Crimp Attachment For RG178B, RG196A, Up To
8 GHz PE44774
PE44774 REV 1.0
1
