SMA Male to N Male High Performance Test Cable
18 Ghz 200 cm Length Using PE-P141 Coax, RoHS
TECHNICAL DATA SHEET
PE354-200CM
SMA Male to N Male High Performance Test Cable 18 Ghz 200 cm Length Using PE-P141 Coax, RoHS
Configuration
Connector 1
Connector 2
Cable Type
SMA Male
N Male
PE-P141
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Insertion Loss
Velocity of Propagation, %
RF Shielding, dB
Maximum Input Power, Watts
Typical Performance by Frequency
Frequency 1
Frequency, GHz
Insertion Loss
Frequency 2
Frequency, GHz
Insertion Loss
Frequency 3
Frequency, GHz
VSWR
Insertion Loss
Electrical Specification Notes:
6
0.4 dB/ft [ 1.31 dB/m ]
DC to 18
50
1.35:1
0.86 dB/ft [ 2.82 dB/m ]
70
110
550
12
0.6 dB/ft [ 1.97 dB/m ]
18
1.22:1
0.75 dB/ft [ 2.46 dB/m ]
Short lengths up to 12” long may exhibit VSWR
measurements up to 9% higher.
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
PE-P141
-55 to +125
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMA Male to N Male High Performance Test Cable 18 Ghz 200 cm Length Using PE-
P141 Coax, RoHS PE354-200CM
PE354-200CM REV 1.1
1
SMA Male to N Male High Performance Test Cable
18 Ghz 200 cm Length Using PE-P141 Coax, RoHS
TECHNICAL DATA SHEET
Size
Length, in [cm]
Diameter, in [mm]
.
PE354-200CM
78.74 [200]
0.163 [4.14]
0.028 [12.7]
Blue
Weight, lbs [g]
Cable Color
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Copper Clad Steel, Silver
2
PTFE
FEP
0.163 [4.14]
Connector 1
Type
Configuration
SMA Male
Straight
Connector 2
Type
Configuration
N Male
Straight
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SMA Male to N Male High Performance Test Cable 18 Ghz 200 cm Length Using PE-P141 Coax, RoHS from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to N Male High Performance Test Cable 18 Ghz 200 cm Length Using PE-P141
Coax, RoHS PE354-200CM
URL:
http://www.pasternack.com/sma-male-n-male-pe-p141-cable-assembly-pe354-200cm-p.aspx
PE354-200CM REV 1.1
2
SMA Male to N Male High Performance Test Cable 18 Ghz
200 cm Length Using PE-P141 Coax, RoHS
PE354-200CM

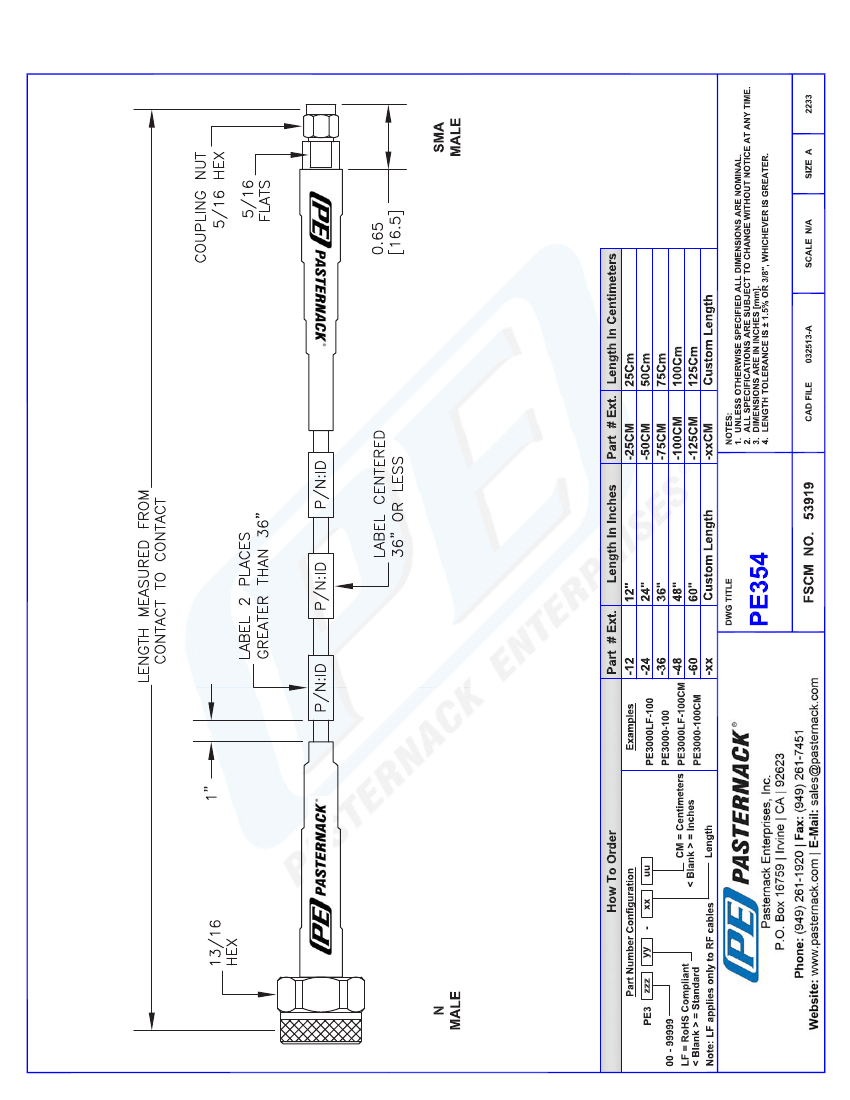

CAD Drawing
© 2013 Pasternack Enterprises All Rights Reserved
PE354-200CM REV 1.1
3
