5KP100C-T3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 5KP100C-T3

5KP100C-T3: DescriptionTrans Voltage Suppressor Diode, 5000W, 100V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, P-600, 2 PIN; CategoryDiscrete semiconductor diode; File Size90KB，6 Pages; ManufacturerWon-Top Electronics Co., Ltd.; Websitehttps://www.wontop.com/

Download Datasheet Parametric View All

5KP100C-T3 Overview

Trans Voltage Suppressor Diode, 5000W, 100V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, P-600, 2 PIN

5KP100C-T3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Won-Top Electronics Co., Ltd.
package instruction	PLASTIC, P-600, 2 PIN
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum breakdown voltage	141 V
Minimum breakdown voltage	111 V
Breakdown voltage nominal value	123.5 V
Shell connection	ISOLATED
Maximum clamping voltage	179 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	5000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Maximum power dissipation	8 W
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

WTE

POWER SEMICONDUCTORS

5KP SERIES

5000W TRANSIENT VOLTAGE SUPPRESSOR

Features

Glass Passivated Die Construction

5000W Peak Pulse Power Dissipation

5.0V – 110V Standoff Voltage

Uni- and Bi-Directional Versions Available

Excellent Clamping Capability

Fast Response Time

Plastic Case Material has UL Flammability

Classification Rating 94V-O

Mechanical Data

Case: P-600, Molded Plastic

Terminals: Axial Leads, Solderable per

MIL-STD-750, Method 2026

Polarity: Cathode Band Except Bi-Directional

Marking: Type Number

Weight: 2.10 grams (approx.)

Lead Free: For RoHS / Lead Free Version,

Add “-LF” Suffix to Part Number, See Page 6

Dim

Max

25.4

—

8.60

9.10

1.20

1.30

8.60

9.10

All Dimensions in mm

“C” Suffix Designates Bi-directional Devices

“A” Suffix Designates 5% Tolerance Devices

No Suffix Designates 10% Tolerance Devices

P-600

Min

Maximum Ratings and Electrical Characteristics

Characteristic

Peak Pulse Power Dissipation at T

= 25°C (Note 1, 2, 5) Figure 3

Peak Forward Surge Current (Note 3)

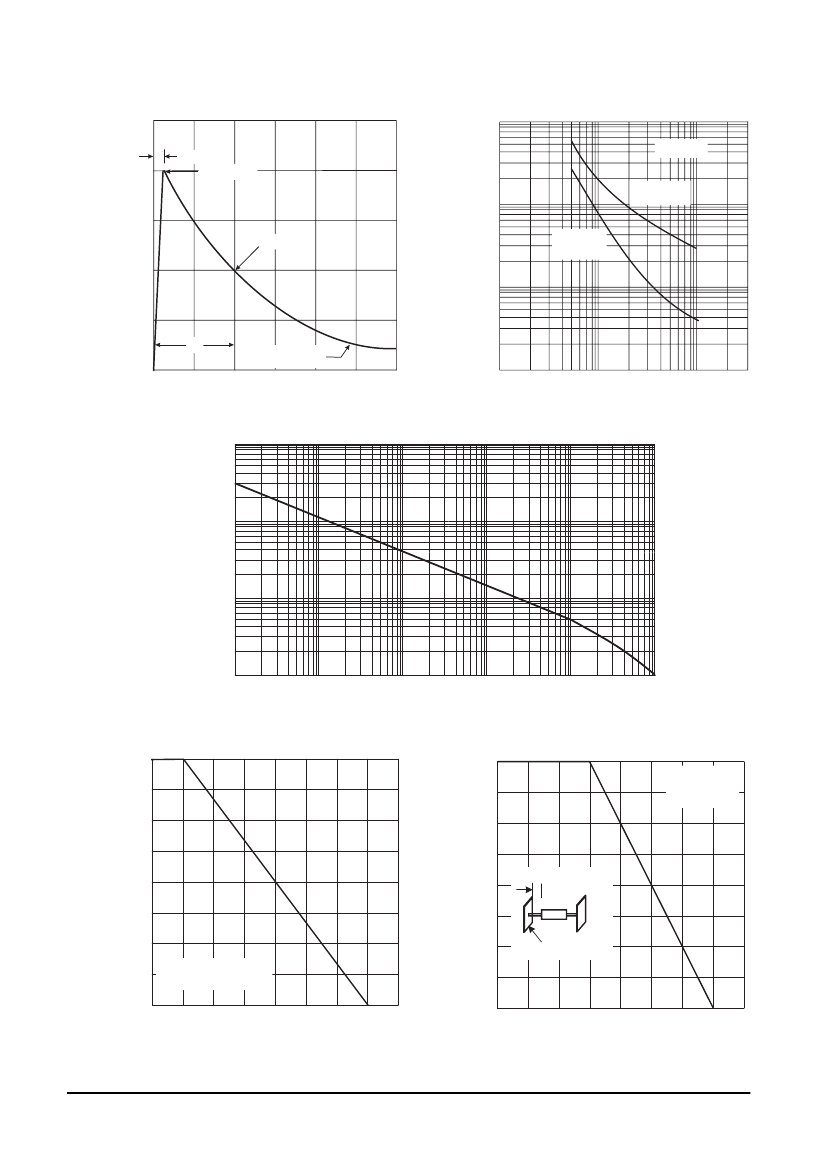

Peak Pulse Current on 10/1000µS Waveform (Note 1) Figure 1

Steady State Power Dissipation (Note 2, 4)

Typical Thermal Resistance ,Junction to Lead (Note 6)

Typical Thermal Resistance, Junction to Ambient (Note 6)

Operating and Storage Temperature Range

=25°C unless otherwise specified

Symbol

PPM

FSM

PPM

M(AV)

θJL

θJA

, T

STG

Value

5000 Minimum

600

See Table 1

8.0

-55 to +175

Unit

°C/W

°C

Note: 1. Non-repetitive current pulse per Figure 1 and derated above T

= 25°C per Figure 4.

2. Mounted on 20mm

copper pad.

3. 8.3ms single half sine-wave duty cycle = 4 pulses per minutes maximum.

4. Lead temperature at 75°C.

5. Peak pulse power waveform is 10/1000µS.

6. Measured at lead length 3/8” (9.5mm) from body.

5KP SERIES

1 of 6
