D83020B-06 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> D83020B-06

D83020B-06: DescriptionIC Socket, PLCC20, 20 Contact(s), Surface Mount; CategoryThe connector socket; File Size51KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

D83020B-06 Overview

IC Socket, PLCC20, 20 Contact(s), Surface Mount

D83020B-06 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.6 inch
subject depth	0.197 inch
body length	0.6 inch
Contact structure	5X5
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC20
Dielectric withstand voltage	600VAC V
Shell material	PLASTIC
Insulation resistance	10000000000 Ω
JESD-609 code	e0
Manufacturer's serial number	D830
Installation method	STRAIGHT
Number of contacts	20
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Termination type	SURFACE MOUNT

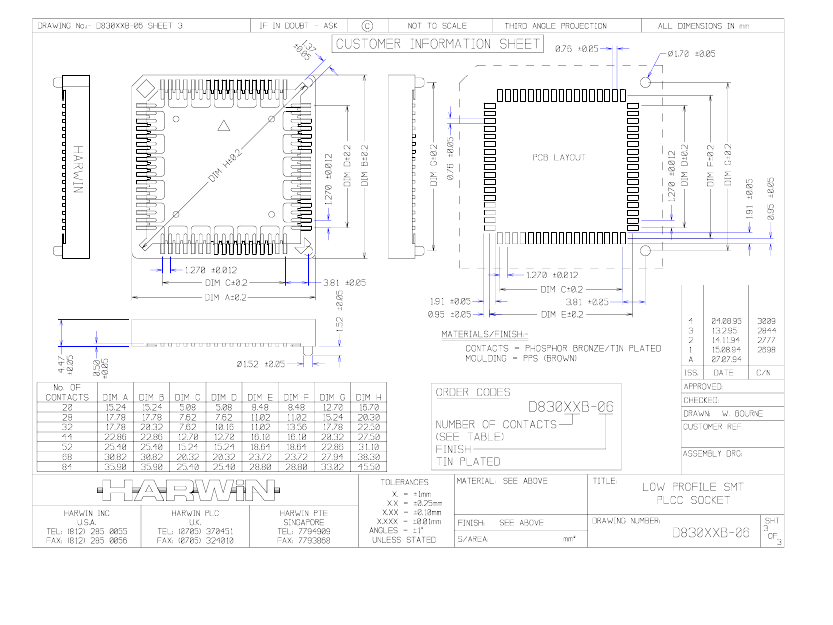

Preview

Download Datasheet

View All

D83020B-06 Related Products

	D83020B-06	D83068B-06	D83028B-06	D83052B-06	D83044B-06	D83032B-06
Description	IC Socket, PLCC20, 20 Contact(s), Surface Mount	IC Socket, PLCC68, 68 Contact(s), Surface Mount	IC Socket, PLCC28, 28 Contact(s), Surface Mount	IC Socket, PLCC52, 52 Contact(s), Surface Mount	IC Socket, PLCC44, 44 Contact(s), Surface Mount	IC Socket, PLCC32, 32 Contact(s), Surface Mount
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	not_compliant	not_compliant	not_compliant	not_compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.6 inch	1.213 inch	0.7 inch	1 inch	0.9 inch	0.7 inch
subject depth	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
body length	0.6 inch	1.213 inch	0.7 inch	1 inch	0.9 inch	0.8 inch
Contact structure	5X5	17X17	7X7	13X13	11X11	7X9
Contact to complete cooperation	NOT SPECIFIED	SN-PB	NOT SPECIFIED	NOT SPECIFIED	SN-PB	NOT SPECIFIED
Contact material	NOT SPECIFIED	P-CUSN	NOT SPECIFIED	NOT SPECIFIED	P-CUSN	NOT SPECIFIED
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
current rating	1 A	1 A	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC20	PLCC68	PLCC28	PLCC52	PLCC44	PLCC32
Dielectric withstand voltage	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V
Shell material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Manufacturer's serial number	D830	D830	D830	D830	D830	D830
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	20	68	28	52	44	32
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Base Number Matches	-	1	1	1	1	-
