A3PJ-90D12-05ER: DescriptionPushbutton Switch, DPDT, Alternate, 3A, 30VDC, Quick Connect/solder Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size2MB，27 Pages; ManufacturerOMRON; Websitehttps://www.omron.com

Download Datasheet Parametric View All

A3PJ-90D12-05ER Overview

Pushbutton Switch, DPDT, Alternate, 3A, 30VDC, Quick Connect/solder Terminal, Panel Mount

A3PJ-90D12-05ER Parametric

Parameter Name	Attribute value
Maker	OMRON
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	RECTANGULAR TYPE
body width	32 mm
body height	25 mm
Body length or diameter	52 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@30VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	30 V
Electrical life	200000 Cycle(s)
illumination	RED LED
Manufacturer's serial number	A3P
Installation features	PANEL MOUNT
Maximum operating force	6.86 N
Maximum operating temperature	40 °C
Minimum operating temperature	-10 °C
seal	IP40
surface mount	NO
Switch action	ALTERNATE
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT/SOLDER

Preview

Download Datasheet

View All

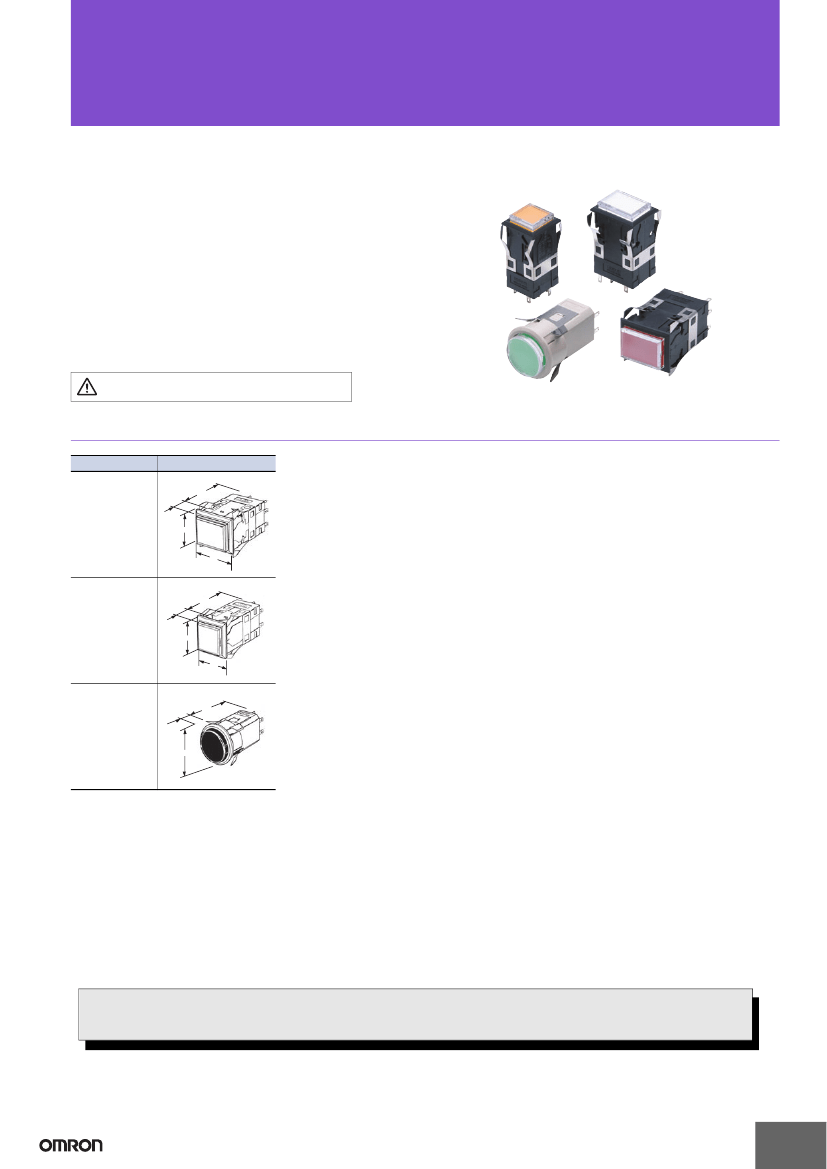

Lighted Pushbutton Switch (Square)

A3P

CSM_A3P_DS_E_5_1

Large Square-bodied Lighted

Pushbutton Switches

• Excellent operating sensitivity.

• Excellent illumination with even surface brightness.

• Three-color models (green, orange, red; chameleon lighting)

included in lineup.

Refer to

Safety Precautions for All Pushbutton Switches

and

Safety Precautions

on page 24.

List of Models

Model

Appearance

52 max.

6.7

A3PJ

(Rectangular)

52 max.

6.7

A3PA

(Square)

6.4

52 max.

A3PT

(Round)

32 dia.

Note: The A3PJ is shown in the figure above as an example.

■

Specifications: Refer to page 15.

■

Panel cutout: Refer to page 21.

■

Dimensions: Refer to page 18.

■

Accessories, replacements, and tools: Refer to pages 13 to 15.

■

Precautions for correct use: Refer to page 24.
