BT136-700 datasheet, PDF - EEWORLD Datasheet

BT136-700: DescriptionTRIAC, 700V V(DRM), 4A I(T)RMS,; CategoryAnalog mixed-signal IC Trigger device; File Size338KB，11 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric View All

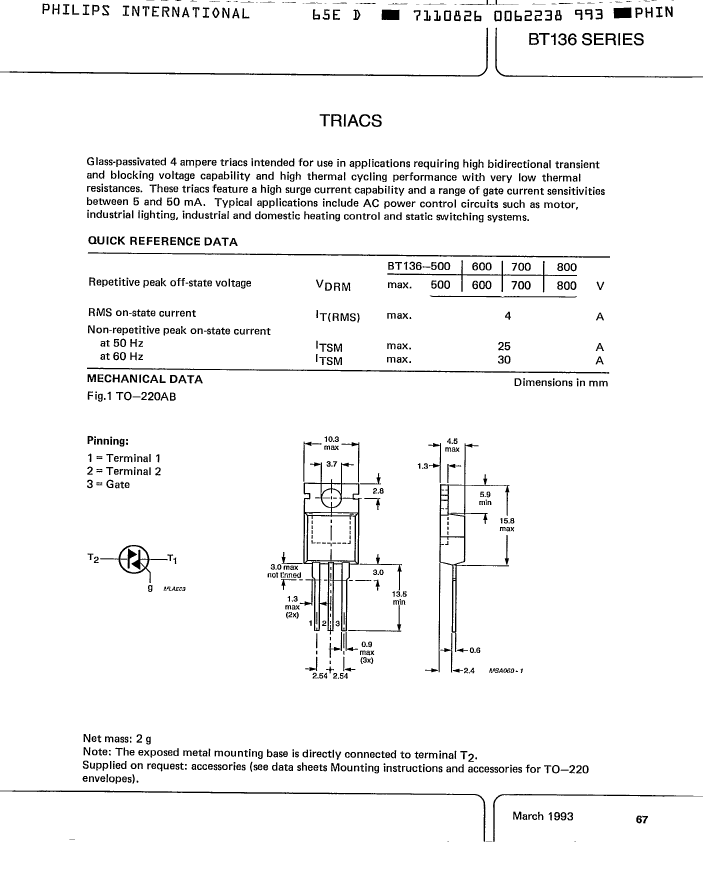

BT136-700 Overview

TRIAC, 700V V(DRM), 4A I(T)RMS,

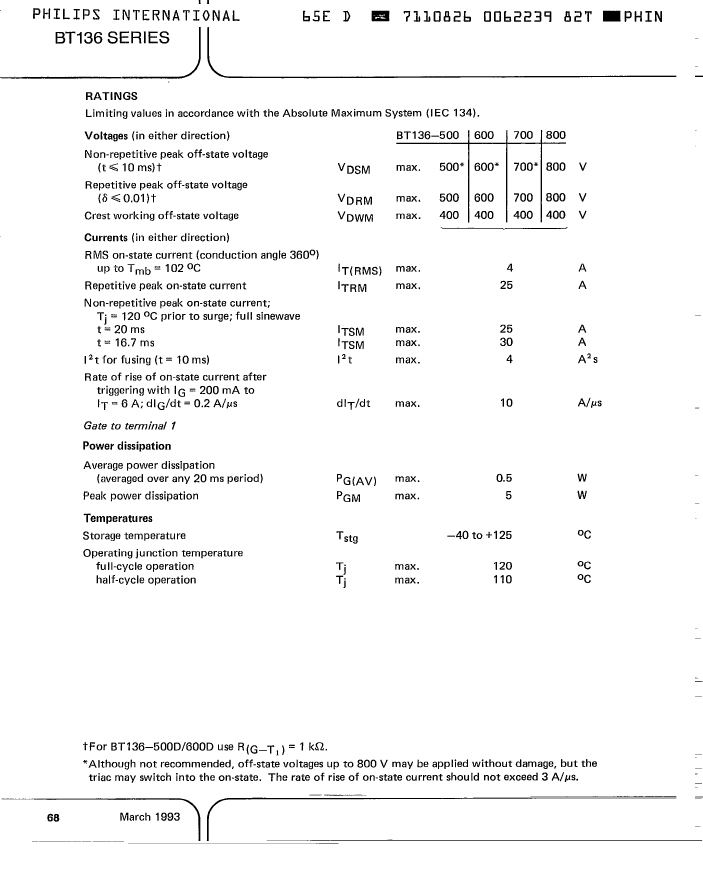

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown

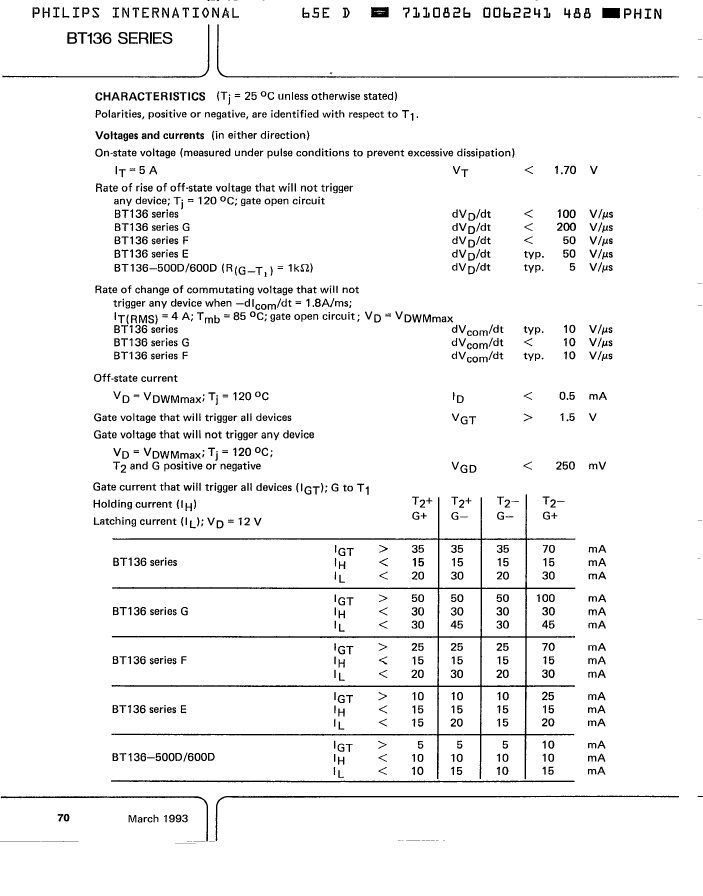

Critical rise rate of minimum off-state voltage	100 V/us
Maximum DC gate trigger current	35 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	15 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.7 V
Maximum operating temperature	120 °C
Maximum rms on-state current	4 A
Off-state repetitive peak voltage	700 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

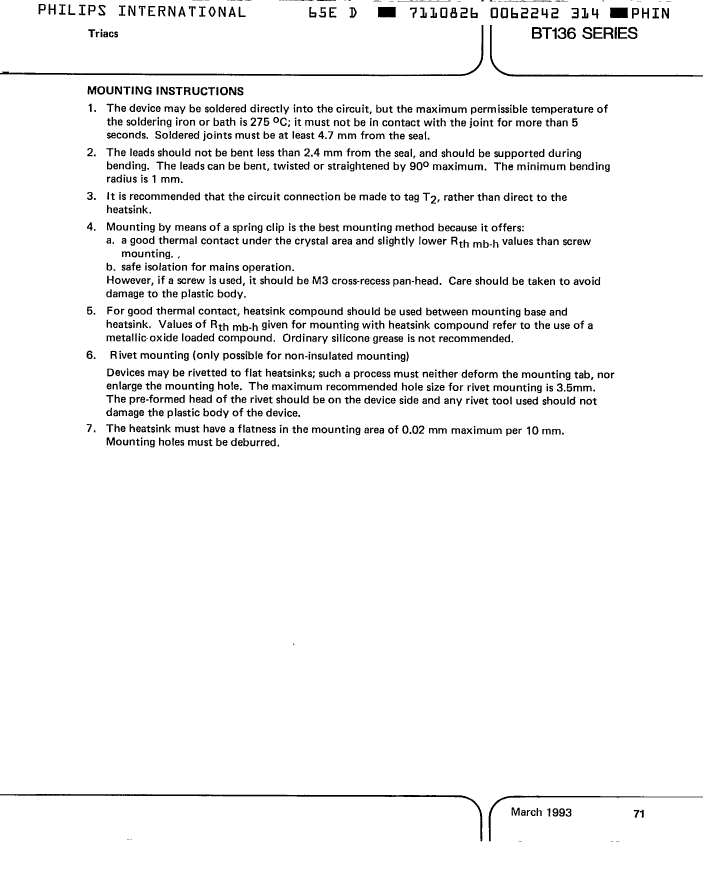

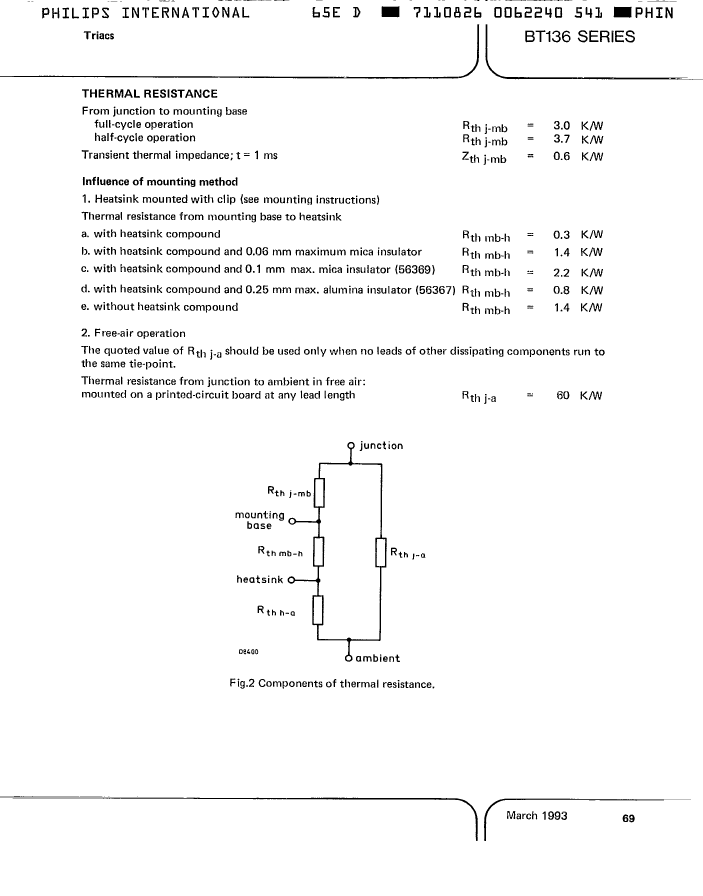

This Material Copyrighted By Its Respective Manufacturer
