MN5904E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MN5904E

MN5904E: DescriptionADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, Bipolar, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16; CategoryAnalog mixed-signal IC converter; File Size343KB，6 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MN5904E Overview

ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, Bipolar, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16

MN5904E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog input voltage	2.5 V
Minimum analog input voltage	-3.5 V
Maximum conversion time	0.013 µs
Converter type	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
length	20.25 mm
Maximum linear error (EL)	0.8%
Nominal negative supply voltage	-5.2 V
Number of digits	6
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-5.2 V
Certification status	Not Qualified
Sampling rate	100 MHz
Maximum seat height	4.6 mm
Maximum slew rate	80 mA
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

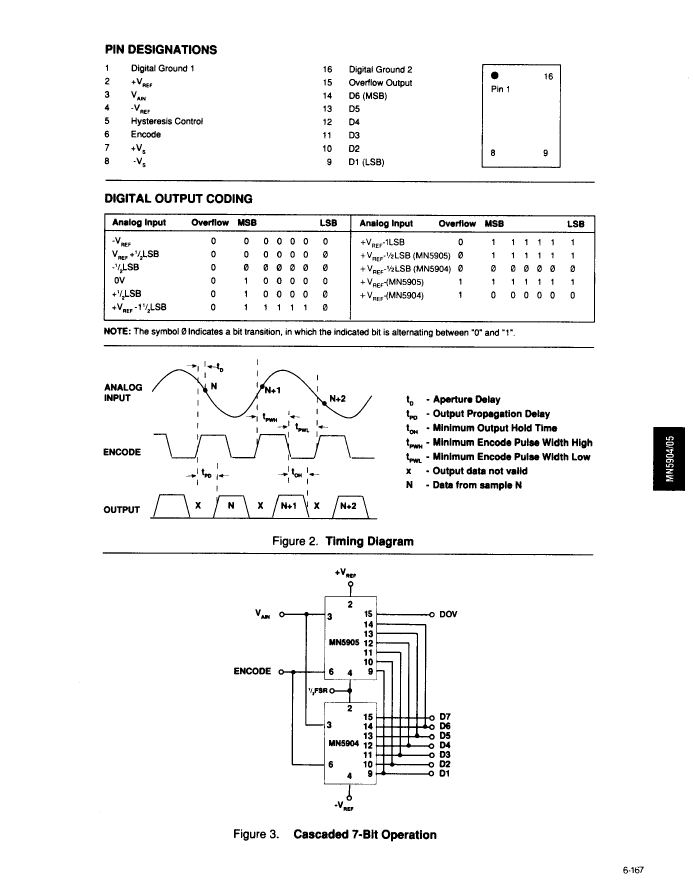

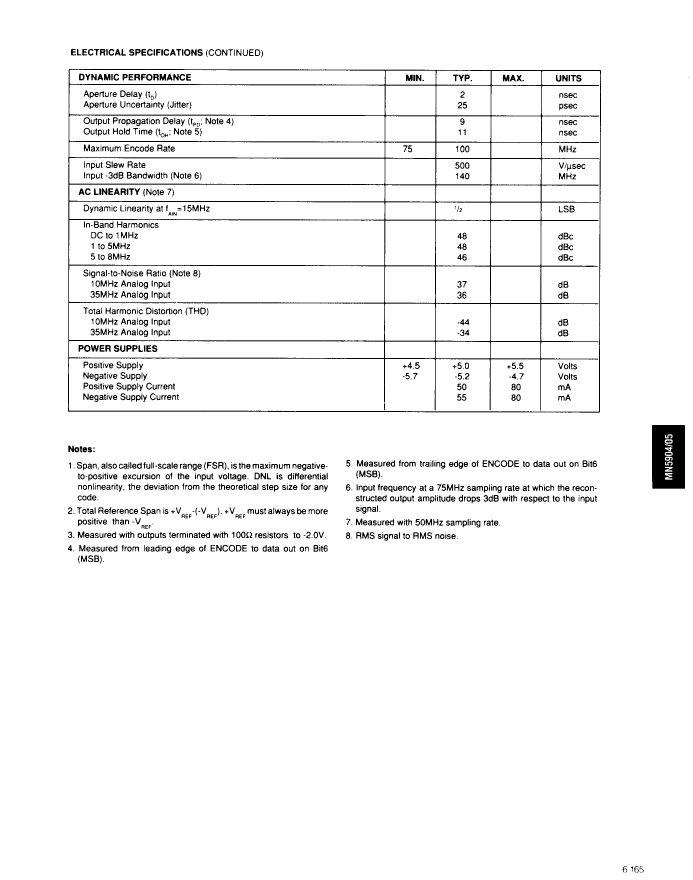

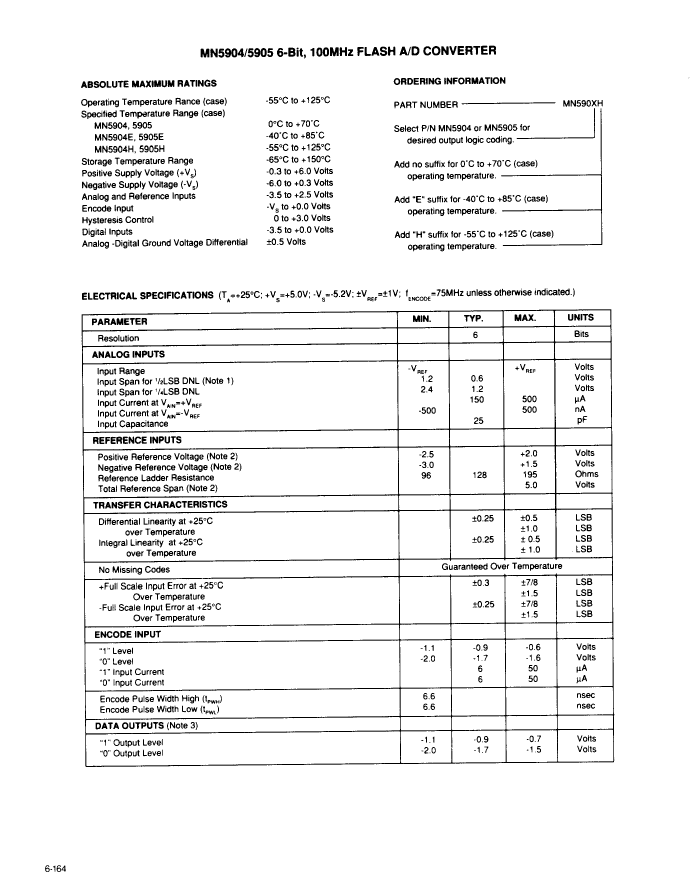

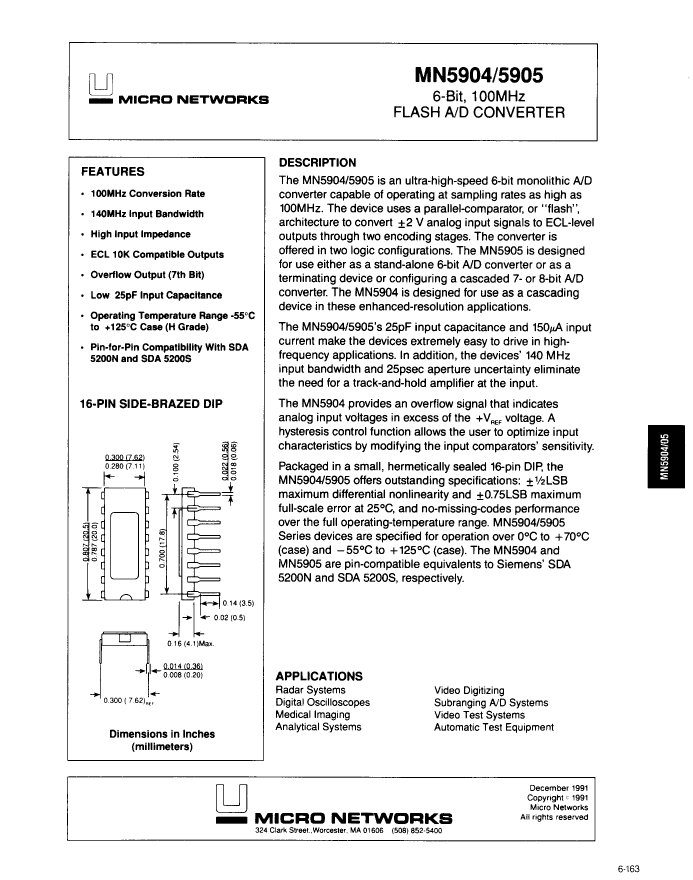

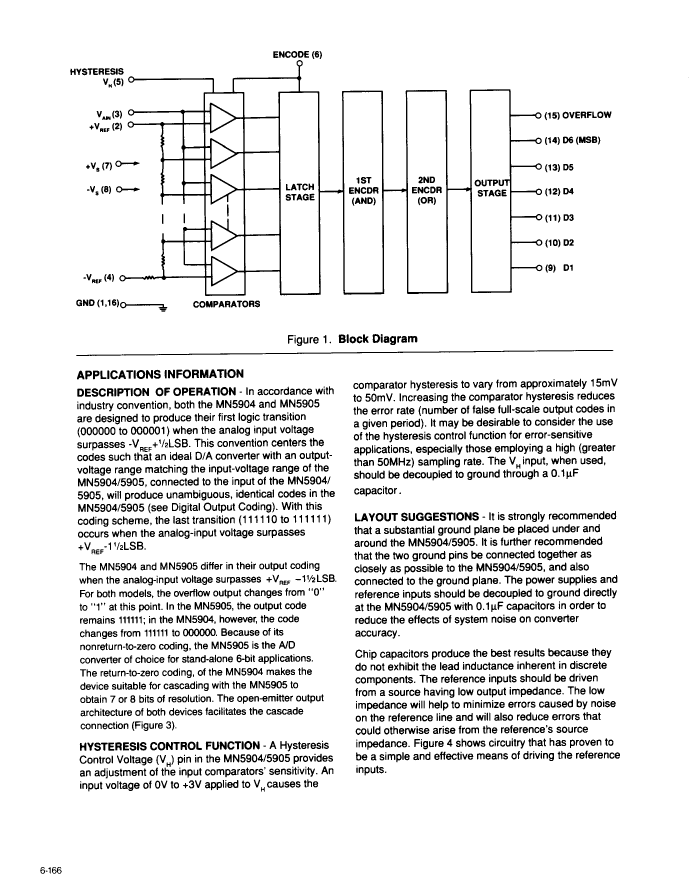

Preview

Download Datasheet

View All

MN5904E Related Products

	MN5904E	MN5905E	MN5905	MN5905H	MN5904H	MN5904
Description	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, Bipolar, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, Bipolar, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, Bipolar, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, Bipolar, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, Bipolar, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, Bipolar, CDIP16, HERMETIC SEALED, SIDE BRAZED, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Contacts	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	3A001.A.2.C	3A001.A.2.C	EAR99
Maximum analog input voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Minimum analog input voltage	-3.5 V	-3.5 V	-3.5 V	-3.5 V	-3.5 V	-3.5 V
Maximum conversion time	0.013 µs	0.013 µs	0.013 µs	0.013 µs	0.013 µs	0.013 µs
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0
length	20.25 mm	20.25 mm	20.25 mm	20.25 mm	20.25 mm	20.25 mm
Maximum linear error (EL)	0.8%	0.8%	0.8%	0.8%	0.8%	0.8%
Nominal negative supply voltage	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Number of digits	6	6	6	6	6	6
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	70 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-	-55 °C	-55 °C	-
Output bit code	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5,-5.2 V	5,-5.2 V	5,-5.2 V	5,-5.2 V	5,-5.2 V	5,-5.2 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Maximum seat height	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm	4.6 mm
Maximum slew rate	80 mA	80 mA	80 mA	80 mA	80 mA	80 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
