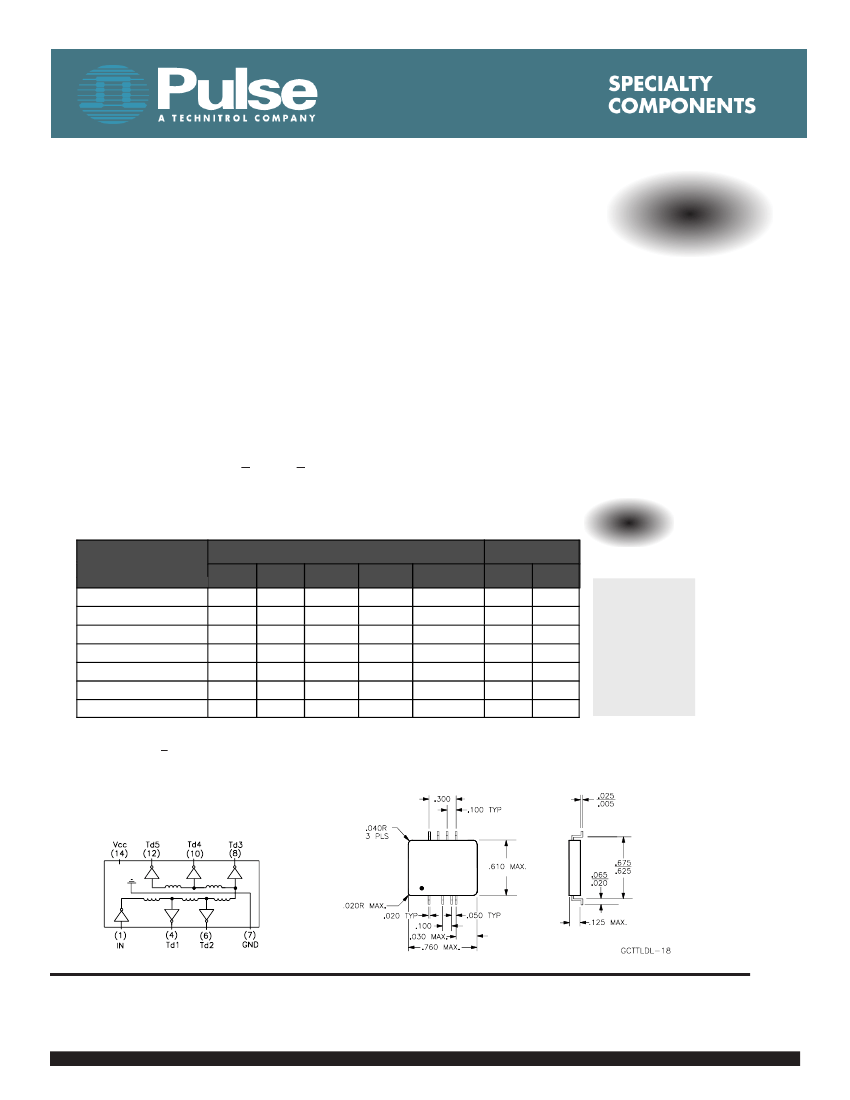

Surface-Mount TTL Delay Lines
n
Five equal taps in 20% increments of total delay.
n
Lumped constant, active series.
n
Transfer-molded packaging for highest reliability.
GCTTLDL,
GTTLDL
n
Military models with temperature range -55 to
n
Designed for leading edge timing. Trailing edge
timing available.
n
Supports Schottky TTL, FAST, and FACT logics.
n
Fanout 1 -- 20 loads; logic 0 -- 10 loads.
n
Temperature coefficient +2 ns or +4% (whichever is
greater) at maximum delay, 0 to 70oC.
+125
o
C and ceramic package IC to meet MIL-STD-
883C, but not screened to that specification, add
suffix “M” to part number.
n
Military models as above, but with ceramic package
IC screened to MIL-STD 883C and 38510, add
suffix “MX” to part number.
n
Military models as “MX” above, but with in-house
burn-in and thermal shock, add suffix “MY”.
1/8”
HEIGHT
ALL TAPS
GCTTLL SURFACE-MOUNT 5-TAP DELAY LINES
T ECH NITROL
PART NO.
GCT TLDL025AM X
GCT TLDL050AM X
GCT TLDL075AM X
GCT TLDL100AM X
GCT TLDL125AM X
GCT TLDL150AM X
GCT TLDL200AM X
TAP D ELA YS (ns)
T
D
1
D
5.0
10.0
15.0
20.0
25.0
30.00
40.00
T
D
2
D
10.0
20.0
30.0
40.0
50.0
60.0
80.0
T
D
3
D
15.0
30.0
45.0
60.0
75.0
90.0
120.0
T
D
4
D
20.0
40.0
60.0
80.0
100.0
120.0
160.0
T
D
5
D
25.0
50.0
75.0
100.0
125.0
150.0
200.0
T
RO
RO
2.0
2.0
2.0
2.0
2.0
2.0
2.0
T
FO
FO
2.0
2.0
2.0
5.0
6.0
7.0
8.0
For TTL delay
lines qualified
to MIL-D-83532,
refer to PSC
information
sheet entitled
“QPL Active
Delay Lines.”
Delay Characteristics measured at Vcc = 5.0V, 25
o
C, no load.
Delay Tolerance +2 ns or 5%, whichever is greater.
Rise time measured @ 0.8V to 2.0V levels.
For minimum input pulse width -- contact factory.

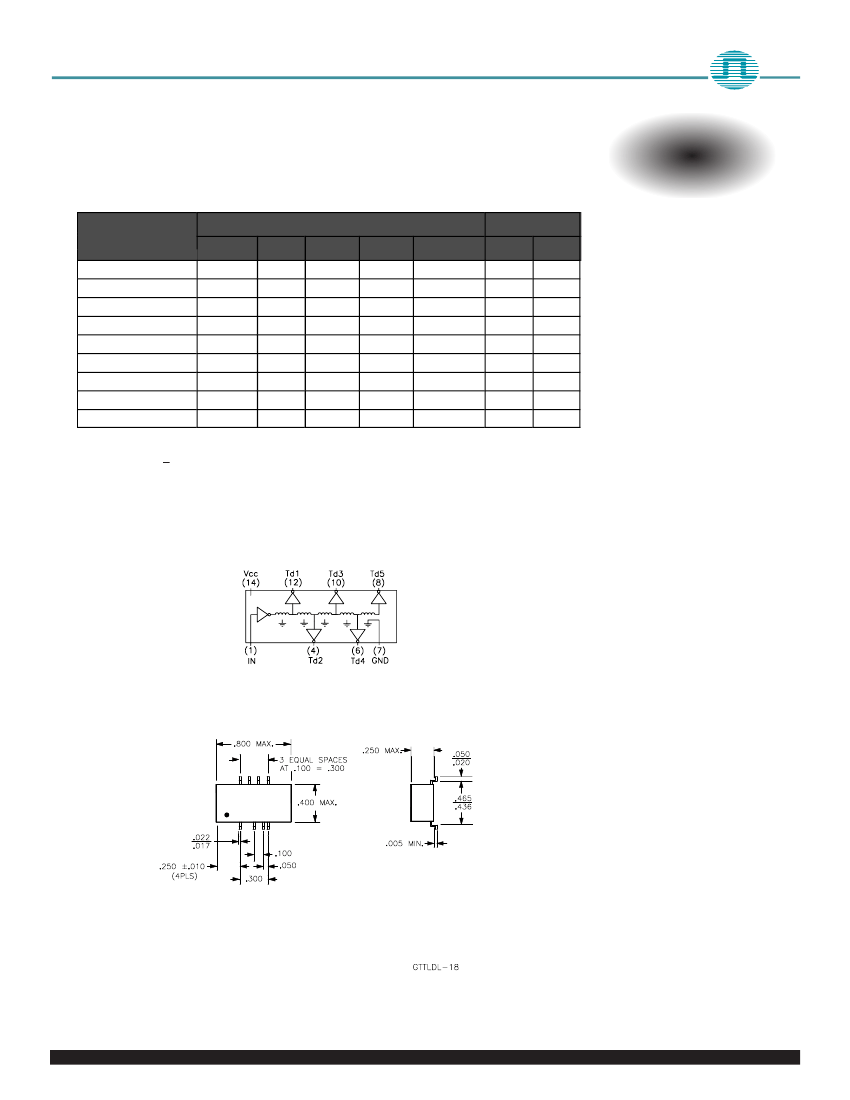

MECHANICAL OUTLINE
SCHEMATIC
Notes
n
Pin numbers shown are for reference only
and are not necessarily marked on unit.
n
Lead material is electro tin plated
(alloy 42) or solder dipped.
n
Only the pins specified in the schematics
are provided with each package.
n
All specifications are subject to
change without notice.
