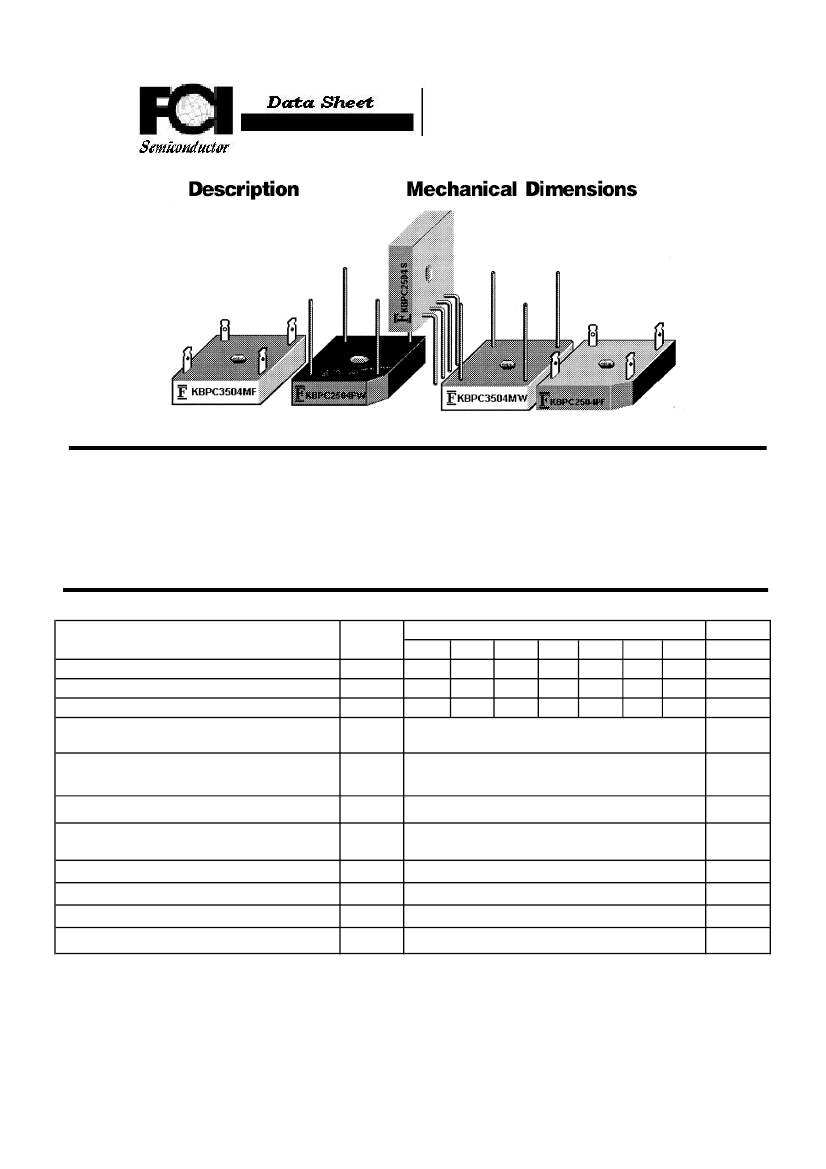

40 Amps Plastic case
Silicon Bridge Rectifiers
KBPC4000~4010
KBPC-PF
Feature

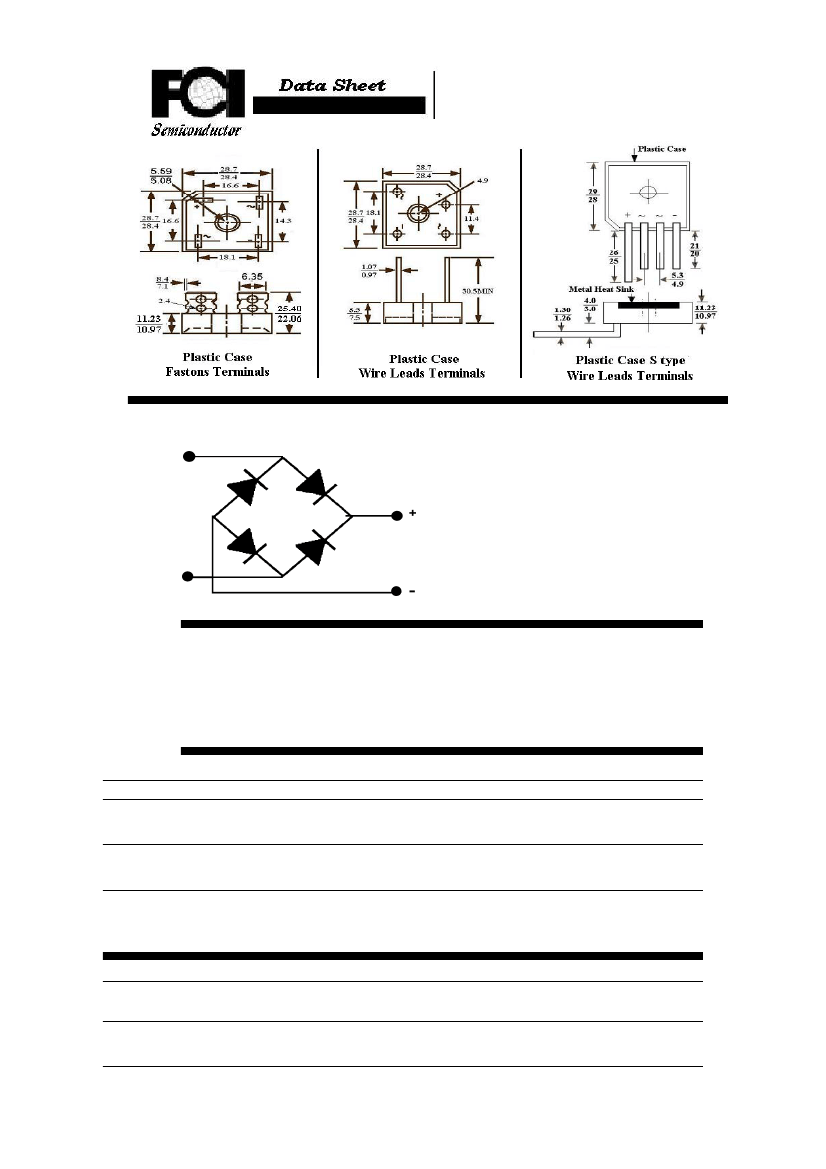

Dimensions in mm
Mechanical Data
▓
▓
▓
▓
▓
▓
Surge overload 400A
Low forward voltage drop
Mounting Position: Any
Electrically isolated base-2000Volts
Solderable 0.25" Faston
Terminals
Materials used carries U/L recognition
▓
Case: Molded plastic body over passivated junctions
▓
Polarity: Polarity symbols molded on body
▓
Terminals: Lead Solderable per MIL-STD-750
Method 2026
▓
MountingTorque: 5 in-lbs max
▓
Weight:
19.5
grams(Faston);
14.5grams(Wire Lead)
KBPC4000~4010
Symbol
Vrrm
Vrwm
Vdc
IF(AV)
IFSM
Vf
Ir
Tj/Ts
Rthja
Rthjc
I
2
t
4000
50
35
50
4001
100
70
100
4002
200
140
200
4004
400
280
400
40
400
1.0
Max Ratings at Ta=25C Unless Otherwise Specified
Characteristic
Peak Repetitive Reverse Voltage
working Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current
Peak Forward Surge Current 10ms Sine pulse,
rated Vrrm applied
Max Forward Voltage IF=20A @25C
Reverse Leakage Current WITH Vr @ 25C/125C
Operating & Storage Temp. Range
Thermal Resistance Junction to Case
Thermal Resistance Case to Heatsink
Rating for fusing(t<8.3ms)
Unit
4008
800
560
800
4010
1000
700
1000
V
V
V
V
A
V
uA
C
C/W
C/W
C/W
4006
600
420
600
5.0/500
-40 ~+125
2.6
2.3
374
40 Amps Plastic case
Silicon Bridge Rectifiers

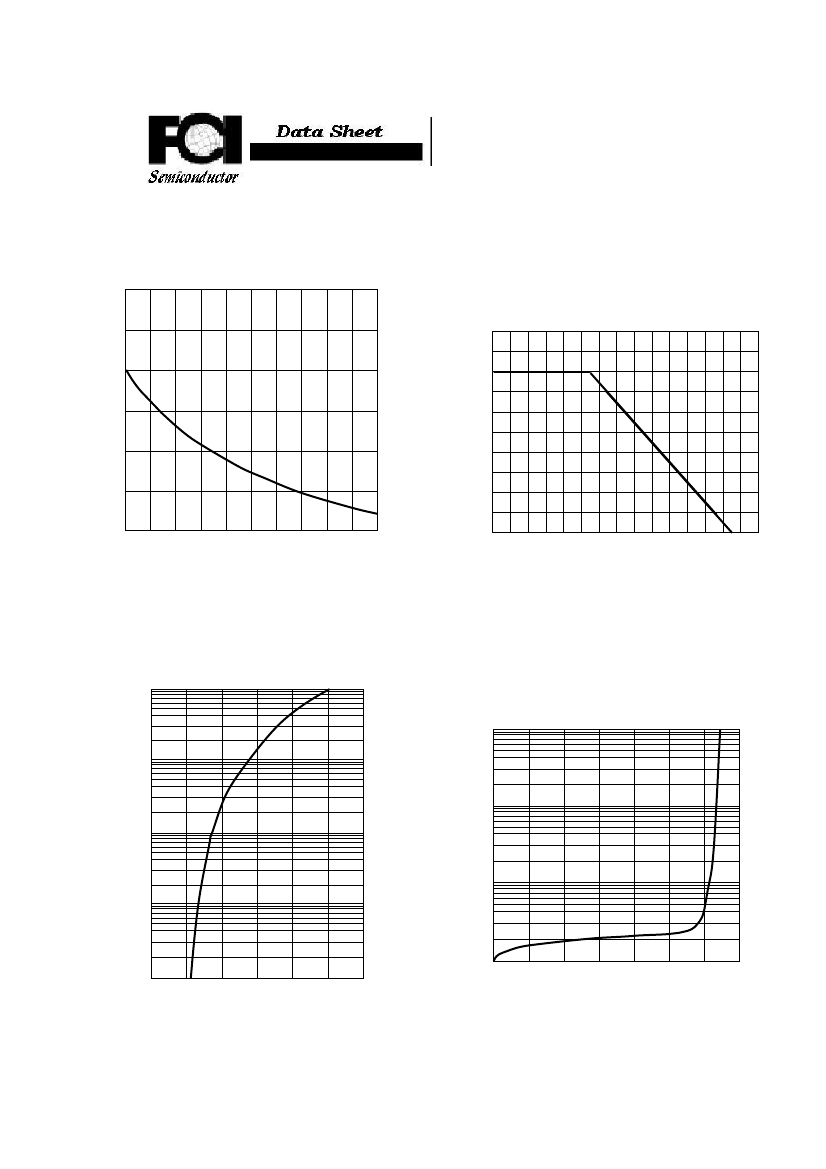

Rating Characteristic Curves KBPC4000~4010(Ta=25C Unless otherwise noted)
FIG.1-MAXIMUM FORWARD SURGE CURRENT
600
PEAK FORWARD SURGE CURRENT ,
AMPERES
AVERAGE FORWARD OUTPUT CURRENT ,
AMPERES
FIG.2- DERATING CURVE OUTPUT
RECTIFIED CURRENT
500
50
400
40
300
30
200
20
100
0
1
10
NUMBER OF CYCLES AT 60Hz
100
10
0
50
100
150
CASE TEMPERATURE,
FIG.3-TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT ,(A)
FIG.4-TYPICAL REVERSE CHARACTERISTICS
10
10
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
1.0
1.0
0.1
0.1
0.01
0.6
0.8
1.0
1.2
1.4
1.6
INSTANTANEOUS FORWARD VOLTAGE,VOLTS
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE
40 Amps Plastic case
Silicon Bridge Rectifiers
KBPC4000~4010
Case - Metal or Molded Plastic
AC In
Terminals - Plated .25" Faston or Plated Copper Wire
Leads .040" Diameter
Weight - 0.706 Ounces, 20 Grams
DC Out
Mounting Position - Any with Bolt Down with Silicone
Thermal Compound Between Bridge and
Mounting Surface for Optimum Heat
Transfer
Mounting Torque - 20 Inch Pound Max
Ordering Information
FCIS KBPC Series of Bridges Can Be Ordered with Options on Terminals and Case Materials.
How To Specify Case Material and Terminal Options:
n
For Metal Case, Order Suffix
(1) M
n
For Plastic Case, Order Suffix
(1) P
n
For Faston Terminals, Order Suffix
(2) F
n
For Wire Lead Terminals, Order Suffix
(2) W
KBPC Series Examples
To Order a 25 Amp, 400 Volt Bridge with Faston Leads and a Plastic Case:
Specify -
KBPC2504PF
. . . Where
P = Plastic
and
F = Faston Terminals
To Order a 35 Amp, 800 Volt Bridge with Wire Leads and a Metal Case:
Specify -
KBPC3508MW
. . . Where
M = Metal
and
W = Wire Leads
(Terminals)
To Order a 15 Amp, 200 Volt, UL Recognized Bridge with Wire Leads and a Plastic Case:
Specify -
KBPC1502PWU
. . . Where
P = Plastic
and
W = Wire Leads
(Terminals) and
U = UL Recognized
NOTE:
Fast Recovery Bridges (Diodes) Are Available; Please Contact FCI Components.
KBPC - S Series Examples
To Order Bridges with the In-Line Pin Configuration, Select the Current and Voltage Desired and Add
S
as the Suffix, as
shown in the following example.
To Order a 35 Amp, 800 Volt Bridge with In-Line Wire Leads:
Specify -
KBPC3508S
. . . Where
S = In-Line Wire Lead Terminals
