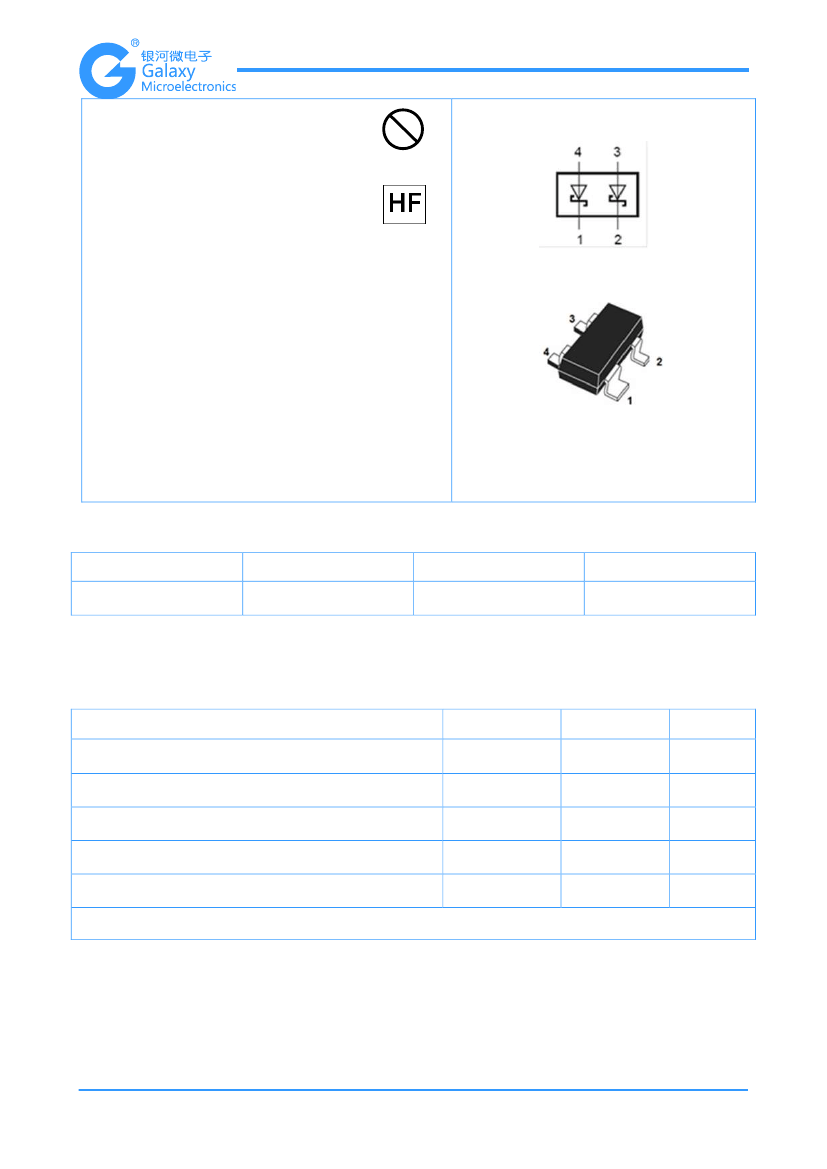

Small Signal Schottky Diodes
BAS40-07
Features
High switching speed
High breakdown voltage
Low leakage current
Low capacitance
Pb
Lead-free
Typical Applications
Ultra high-speed switching
Voltage clamping
Mechanical Data
Case: SOT-143
Terminals: solderable per MIL-STD-202,
Method 208.
SOT-143
Ordering Information
Part Number
Package
Shipping
Marking Code
BAS40-07
□
□:
none is for Lead Free package;
“G” is for Halogen Free package.
SOT-143
3000/Tape&Reel
47
Maximum Ratings
(@T
A
=25℃ unless otherwise specified)
Parameter
Reverse Voltage
Forward Continuous Current *
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Current @8.3ms
Power Dissipation *
* part mounted on FR-4 board with recommended pad layout
Symbol
V
R
I
FM
I
FRM
I
FSM
P
d
Limits
40
200
120
200
250
Unit
V
mA
mA
mA
mW
SSM0066A
www.gmesemi.com
1
Small Signal Schottky Diodes
BAS40-07
Thermal Characteristics
Parameter
Thermal Resistance, Junction to Ambient *
Operating Junction Temperature Range
Storage Temperature Range
Symbol
R
θJA
T
j
T
STG
Limits
400
-55 to +125
-55 to +150
Unit
℃/W
℃
℃
Electrical Characteristics
(@T
A
=25℃ unless otherwise specified)
Parameter
Forward Voltage *
1
Reverse Leakage Current *
2
Capacitance Between Terminals
*1: pulse test,tp≤300μs
*2: pulse test,tp≤5ms
Symbol
V
F
I
R
C
T
Conditions
I
F
=1mA
I
F
=10mA
I
F
=40mA
V
R
=30V
V
R
=0V,f=1MHz
2.5
Min
Typ
Max
0.38
0.55
1
0.2
5
Unit
V
V
V
μA
pF

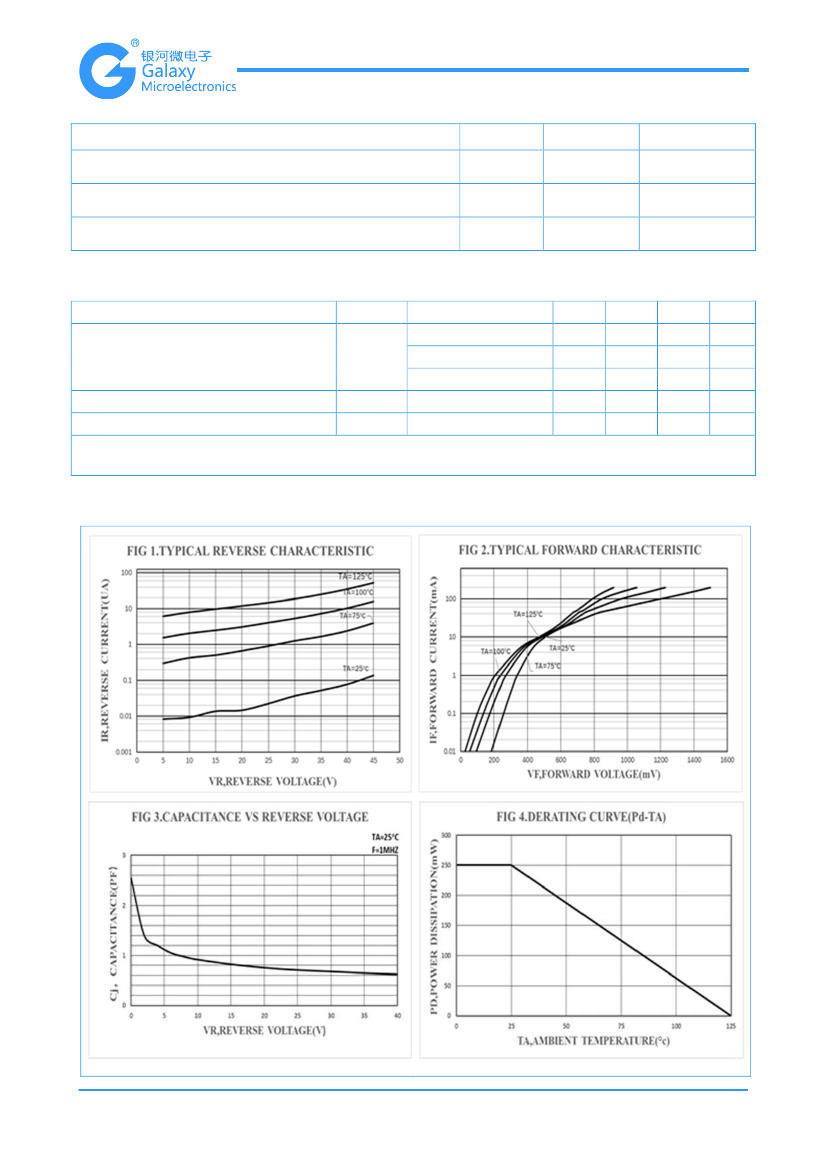

Ratings and Characteristic Curves
(T
A
=25℃ unless otherwise noted)
SSM0066A
www.gmesemi.com
2
Small Signal Schottky Diodes
BAS40-07
Package Outline Dimensions
(unit:mm)
SOT-143
A
E
H
SOT-143
Dim
A
B
Min
2.70
1.10
0.90
0.78
1.80
0.37
1.59
0.02
0.05
2.20
Max
3.10
1.50
1.10
0.88
2.00
0.43
1.79
0.10
0.15
2.60
K
B
C
D
D
G
F
J
E
F
G
H
C
J
K
Mounting Pad Layout
(unit:mm)
SOT-143
1.00
1.92
1.40
2.20
1.00
1.72
1.40
1.78
IMPORTANT NOTICE
Galaxy Microelectronics (GME) reserves the right to make changes without further notice to any product
herein to make corrections, modifications , improvements , or other changes. GME does not assume any
liability arising out of the application or use of any product described herein; neither does it convey any
license under its patent rights ,nor the rights of others .
SSM0066A
3.60
www.gmesemi.com
3
