BSP316: DescriptionPower Field-Effect Transistor, 0.65A I(D), 100V, 2.2ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, SOT-223, 4 PIN; CategoryDiscrete semiconductor The transistor; File Size284KB，8 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

BSP316 Overview

Power Field-Effect Transistor, 0.65A I(D), 100V, 2.2ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, SOT-223, 4 PIN

BSP316 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
Parts packaging code	SOT-223
package instruction	SMALL OUTLINE, R-PDSO-G4
Contacts	4
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (Abs) (ID)	0.65 A
Maximum drain current (ID)	0.65 A
Maximum drain-source on-resistance	2.2 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G4
JESD-609 code	e0
Number of components	1
Number of terminals	4
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	P-CHANNEL
Maximum power dissipation(Abs)	1.8 W
Maximum pulsed drain current (IDM)	2.6 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

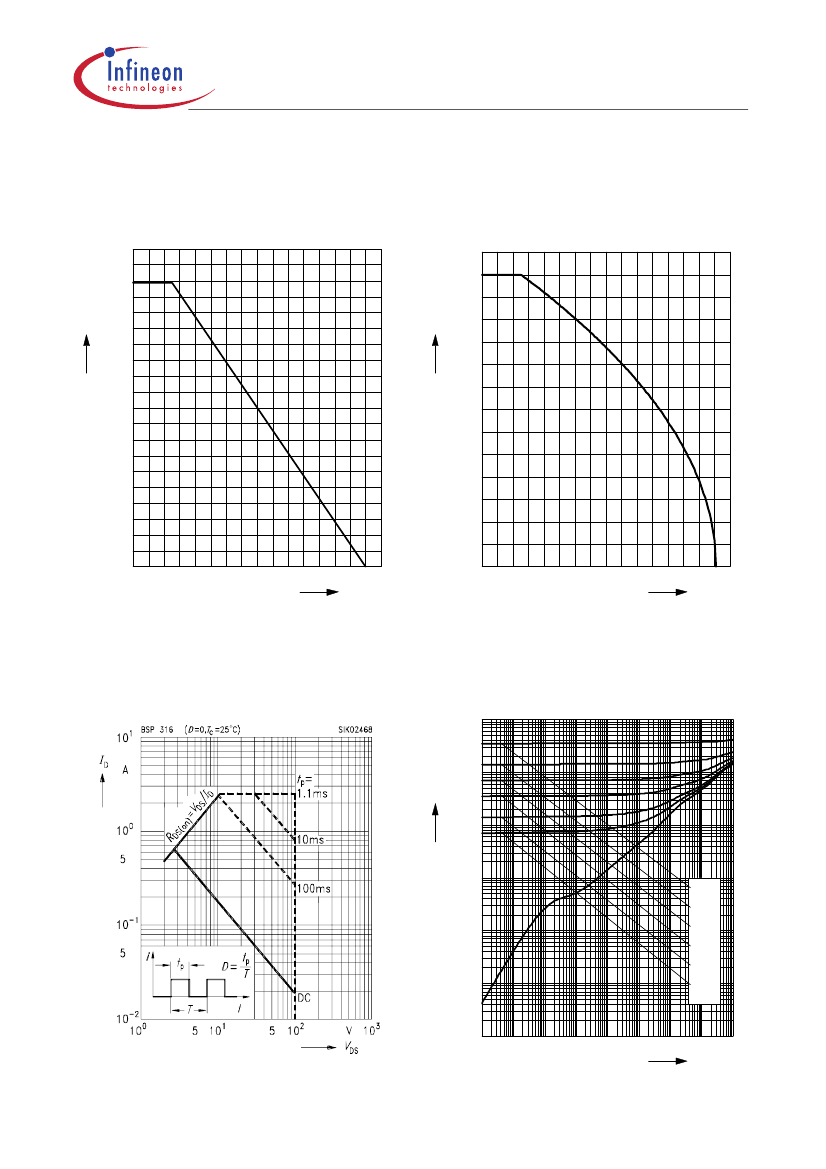

Preview

Download Datasheet

View All

BSP 316

SIPMOS

Small-Signal Transistor

• P channel

• Enhancement mode

• Logic Level

• V

GS(th)

= -0.8...-2.0 V

Pin 1

Type

Pin 2

Marking

Pin 3

Pin 4

-100 V

-0.65 A

DS(on)

2.2

Ω

Package

BSP 316

Type

BSP 316

SOT-223

BSP 316

Ordering Code

Q67000-S92

Tape and Reel Information

E6327

Maximum Ratings

Parameter

Symbol

Values

Unit

Drain source voltage

Drain-gate voltage

= 20 k

Ω

DGR

-100

Gate source voltage

Continuous drain current

= 24 ˚C

-0.65

DC drain current, pulsed

= 25 ˚C

Dpuls

-2.6

tot

Power dissipation

= 25 ˚C

1.8

Data Sheet

05.99
