VPLD64TJ2G5-155.52MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> VPLD64TJ2G5-155.52MHZ

VPLD64TJ2G5-155.52MHZ: DescriptionLVPECL Output Clock Oscillator, 155.2MHz Nom; CategoryPassive components oscillator; File Size223KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

VPLD64TJ2G5-155.52MHZ Overview

LVPECL Output Clock Oscillator, 155.2MHz Nom

VPLD64TJ2G5-155.52MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Connor-Winfield
Reach Compliance Code	unknown
Other features	TAPE AND REEL; DIFFERENTIAL LVPECL OUTPUT
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	20%
linearity	10%
Manufacturer's serial number	VPLD64TJ2G5
Installation features	SURFACE MOUNT
Nominal operating frequency	155.2 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	14.1mm x 9.02mm x 5.84mm
longest rise time	1 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

THE CONNOR-WINFIELD CORP.

2111 COMPREHENSIVE DRIVE.

AURORA, IL 60505.

FAX (630) 851-5040.

PHONE (630) 851-4722.

WWW.CONWIN.COM

PRODUCT

D AT A

SHEET

CRYSTAL CONTROLLED OSCILLATORS

3.3V SURFACE MOUNT LVPECL VCXO OSCILLATOR

ABSOLUTE M AXIMUM RATING S

PARAMETER

Storage Temperature

Supply Voltage

Control Voltage

(Vcc)

(Vc)

UNITS

MINIMUM

-55

-0.5

NOMINAL

MAXIMUM

125

7.0

UNITS

°C

Vdc

TABLE 2.0

MINIMUM

NOMINAL

153.600

155.520

156.250

166.629

167.330

3.3

-80

-100

-130

-135

MAXIMUM

UNITS

NOTE

TABLE 1.0

NOTE

VPLD64TJ2G5

DESCRIPTION

OPERATING SPECIFIC ATIONS

PARAMETER

Center Frequency

Frequency Stability

Operating Temperature Range

Supply Voltage

Supply Current

Jitter (BW=10Hz to 20MHz)

Jitter (BW=12kHz to 20MHz)

SSB Phase Noise at 100Hz offset

SSB Phase Noise at 1KHz offset

SSB Phase Noise at 10KHz offset

SSB Phase Noise at 100KHz offset

(Fo)

-20

-40

(Vcc)

(Icc)

3.135

MHz

3.465

ppm

°C

Vdc

ps rms

dBc/Hz

The Connor-Winfield

VPLD64TJ2G5 is a Voltage

Controlled Crystal Oscillator

(VCXO) with Differential

LVPECL outputs. Based on a

fundamental crystal design,

the VPLD64TJ2G5 is

designed for phased lock loop

applications requiring low

jitter and tight frequency

stability.

INPUT CHARACTERISTICS

PARAMETER

Control Voltage Range

Frequency Pullibility @25°C

Absolute Pull Range (APR)

Monotonic Linearity

Input Impedance

Modulation Bandwidth (3dB)

(Vc)

MINIMUM

0.3

±50

+/-30

-10

NOMINAL

1.65

50K

MAXIMUM

3.0

±150

UNITS

Vdc

ppm

Ohm

KHz

TABLE 3.0

NOTE

FEATURES

3.3V OPERATION

LOW JITTER <1pS RMS

FREQUENCY STABILITY: ±20ppm

LVPECL OUTPUT CHARACTERISTICS

PARAMETER

LOAD

Voltage

(High)

(Low)

Duty Cycle at 50% Level

Rise / Fall Time 20% to 80%

MINIMUM

2.275

NOMINAL

MAXIMUM

1.68

1.0

UNITS

Ohms

Vdc

TABLE 4.0

NOTE

TEMPERATURE RANGE: -40 to 85°C

DIFFERENTIAL LVPECL OUTPUTS

SURFACE MOUNT PACKAGE

TAPE AND REEL PACKAGING

RoHS 5/6 COMPLIANT

(Voh)

(Vol)

PACKAG E CHARACTERISTICS

Package

TABLE 5.0

Non-hermetic package consisting of an FR4 substrate with grounded metal

cover.

TABLE 6.0

See solder profile page 2.

Ultrasonic cleaning is not recommended.

PROCESS RECOMMENDATIONS

Soldering Process

Wash

Notes

1.0

2.0

3.0

4.0

ORDERING INFORMATION

VPLD64TJ2G5 - 155.52MHz

LVPECL

VCXO

SERIES

CENTER

FREQUENCY

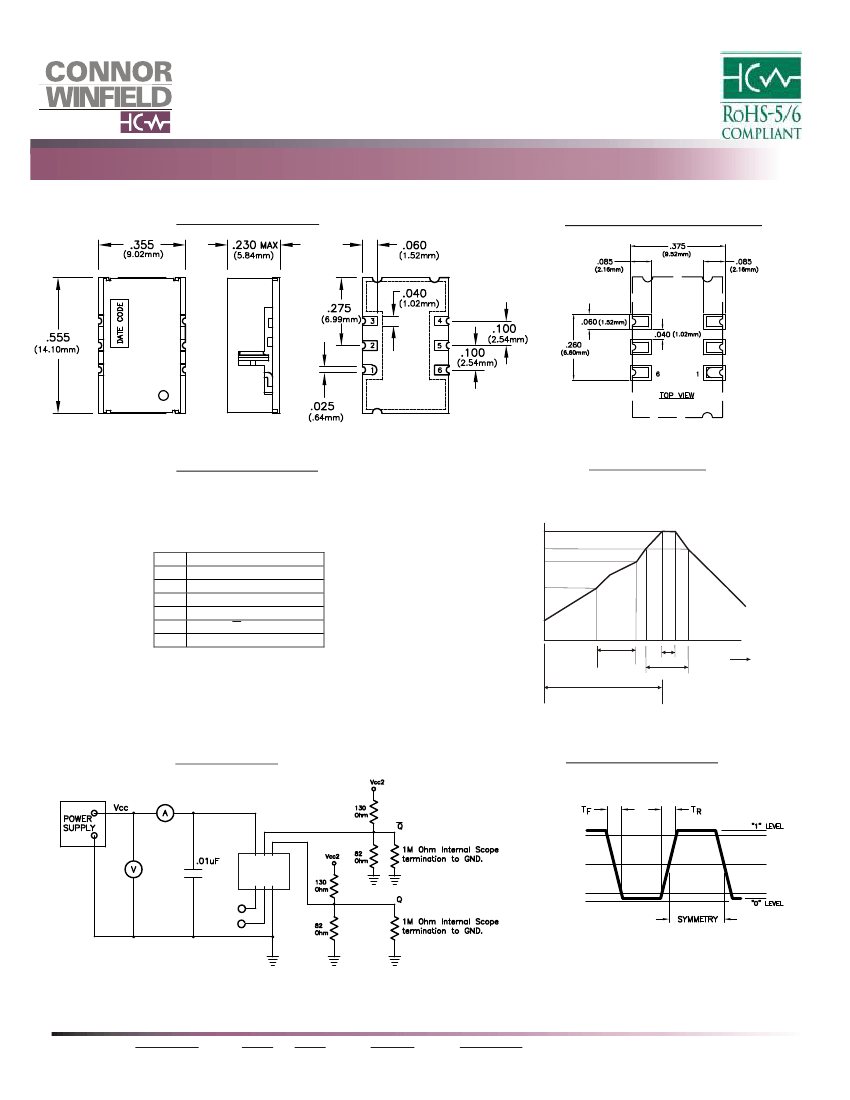

Inclusive of calibration, frequency stability vs. temperature, supply and load variations, shock vibration and

aging for 15 years. Control Voltage @ 1.65V.

Referenced to Fo at T=25°C Positive slope.

Absolute pull range (APR) is the minimum guaranteed pull range of the VCXO under all conditions over lifetime

operation (15 years). The APR is referenced to Fo. Positive Slope.

Output terminated into 50 ohms into Vcc – 2.0Vdc or Thevenin equivalent.

Specifications subject to change without notice.

DATA SHEET #:

Vx563

PAGE

REV:

DATE:

07/20/06

0629

VPLD64TJ2G5

155.52M
