RP SMA Male Connector Crimp/Solder Attachment

For RG55, RG141, RG142, RG223, RG400

TECHNICAL DATA SHEET

RP SMA Male Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

SMA Male Reverse Polarity

RG55,RG141,RG142,RG223,RG400

Crimp/Solder

Straight

PE4767

Electrical Specifications

Impedance, Ohms

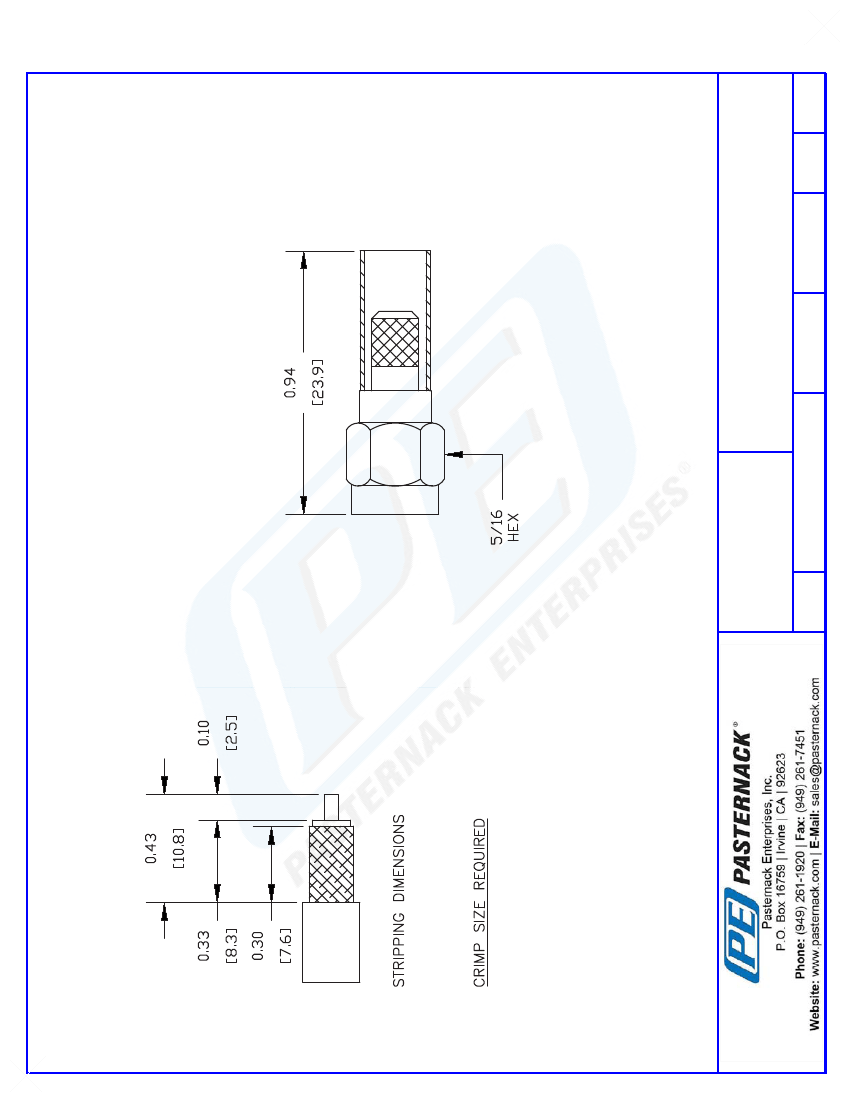

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

0.94 [23.88]

0.312 [8]

0.013 [5.9]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Coupling Nut Material and Plating

Hex Size, in.

Torque, in-lbs [Nm]

Body Material and Plating

Dielectric Type

SMA Male Reverse Polarity

Gold

Brass, Nickel

5/16

5 [0.57]

Brass, Nickel

PTFE

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

RP SMA Male Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400 from Pasternack Enterprises

has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%

availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

RP SMA Male Connector Crimp/Solder Attachment For RG55, RG141, RG142, RG223, RG400

PE4767

URL:

http://www.pasternack.com/sma-male-reverse-polarity-rg55-rg141-rg142-rg223-rg400-connector-pe4767-p.aspx

PE4767 REV
