RP SMA Female Bulkhead Connector Clamp/
Solder Attachment For RG58, RG55, RG141,
RG142, RG223, RG400, .235 inch D Hole
TECHNICAL DATA SHEET
PE4854
RP SMA Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,
RG400, .235 inch D Hole
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMA Female Reverse Polarity
MIL-C-39012
RG58,RG55,RG141,RG142,RG223,RG400
Clamp/Solder
Straight
Bulkhead
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
0.875 [22.23]
0.312 [7.92]
0.013 [5.9]
SMA Female Reverse Polarity
Gold
MIL-G-45204
Brass, Nickel
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
RP SMA Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141,
RG142, RG223, RG400, .235 inch D Hole PE4854
PE4854 REV 01
1
RP SMA Female Bulkhead Connector Clamp/
Solder Attachment For RG58, RG55, RG141,
RG142, RG223, RG400, .235 inch D Hole
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4854
RP SMA Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400, .235 inch
D Hole from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and
fiber optic products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
RP SMA Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141,
RG142, RG223, RG400, .235 inch D Hole PE4854
URL:
http://www.pasternack.com/sma-female-reverse-polarity-rg58-rg55-rg141-rg142-rg223-rg400-connector-pe4854-p.
aspx
PE4854 REV 01
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE4854

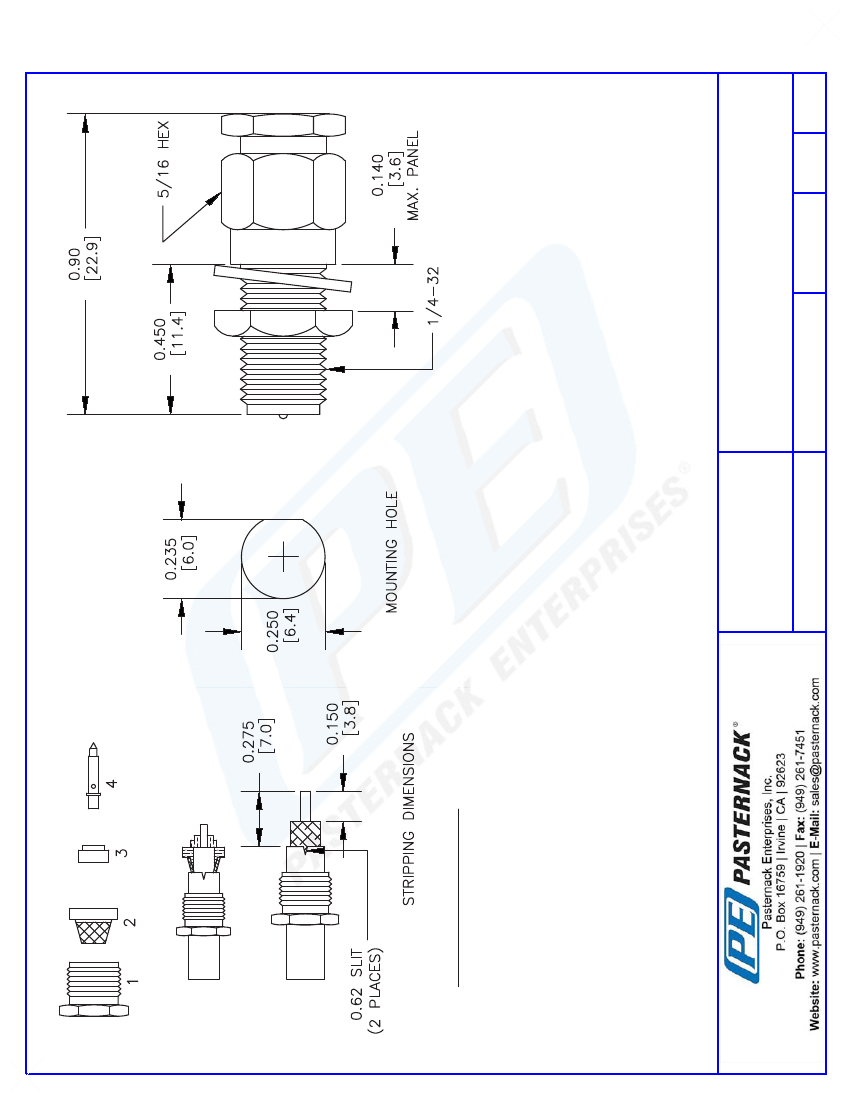

CAD Drawing
RP SMA Female Bulkhead Connector Clamp/Solder Attachment For
RG58, RG55, RG141, RG142, RG223, RG400, .235 inch D Hole
PE4854 REV 01
ASSEMBLY PROCEDURES
1.
SLIDE CLAMP NUT (1) OVER CABLE. STRIP
CABLE AS SHOWN.
2.
FLARE BRAID AND SLIDE CLAMP (2) OVER
DIELECTRIC AND UNDER BRAID UNTIL THE
CLAMP STOPS. TRIM EXCESS BRAID TO
DIAMETER OF THE CLAMP (2).
3.
SLIDE PTFE (3)OVER CENTER CONDUCTOR
AND AGAINST CLAMP (2). INSERT CONTACT (4)
AND SOLDER IT ONTO CENTER CONDUCTOR.
4.
INSERT ASSEMBLY INTO BODY AND TIGHTEN.
PE4854
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
030613-A
SCALE N/A
SIZE A
XXXX
3
