NZ2016SA-20.000M-NSA3441B datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> NZ2016SA-20.000M-NSA3441B

NZ2016SA-20.000M-NSA3441B: DescriptionCMOS Output Clock Oscillator, 20MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size132KB，2 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric Compare View All

NZ2016SA-20.000M-NSA3441B Overview

CMOS Output Clock Oscillator, 20MHz Nom, ROHS COMPLIANT PACKAGE-4

NZ2016SA-20.000M-NSA3441B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NDK
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknown
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	NZ2016SA
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	2.0mm x 1.6mm x 0.7mm
longest rise time	5 ns
Maximum supply voltage	3.3 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

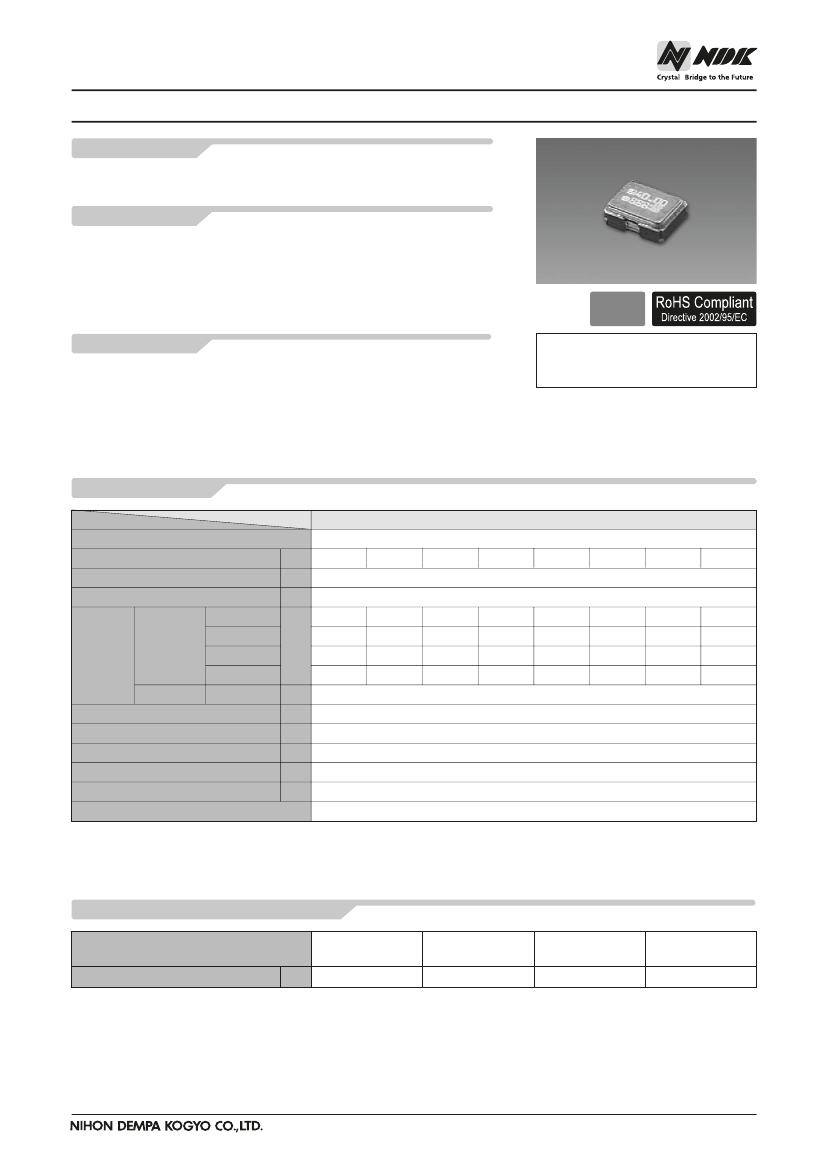

Crystal Clock Oscillator

NZ2016S Series

Model name

NZ2016SA Frequency stability of ±50 x 10

–6

For OA, AV, and short-range wireless

Application

For mobile camera module, DVC, DSC, notebook PC, and PDA

Free

Features

Ultra-compact and light. Dimensions and weight: 2.0 x 1.6 mm, 0.7 mm, and

0.01 g.

Power supply voltage of +1.8 to +3.3 V ideal for low-power and power-saving

type products.

Seam sealing gives high reliability.

Wide frequency range: 1.5 to 80 MHz.

Automatic mounting by taping and IR reflow (lead-free) are possible.

Absolute maximum rating

Power supply voltage (V

) –0.5 to +4.0 V

Storage temperature range –55 to +125 °C

Specifications

Item

Output level

Frequency range

Operating temperature range

Frequency Stability

+1.8 V, 25 °C

During

Current

operation

consumption

max

+2.5 V, 25 °C

+3.0 V, 25 °C

+3.3 V, 25 °C

(mA)

Model

NZ2016SA

C–MOS

(MHz) 1.5 ≤ F < 10 10 ≤ F < 20 20 ≤ F < 30 30 ≤ F < 40 40 ≤ F < 50 50 ≤ F < 60 60 ≤ F < 70 70 ≤ F ≤ 80

(°C)

(×10

–6

)

2.5

3.0

3.5

4.0

4.5

4.0

4.5

5.0

4.5

5.0

5.5

0.1 V

/0.9 V

5/5

45 to 55

Available (tristate)

–20 to +70

±50

5.0

5.5

6.0

5.5

6.0

6.5

7.0

6.0

6.5

7.5

8.0

6.5

7.0

8.5

9.0

During standby +1.8 V to +3.3 V, 25 °C (μA)

max/V

min

Tr max/Tf max

Duty Cycle min. to max.

Load (C

) max

Oscillation start time max

Standby function

(V)

(ns)

(%)

(pF)

(ms)

*1: If you require a product with a frequency not given above, please contact us.

*2: If you require a product with an operating temperature range not given above, please contact us.

List of Codes for Placing an Order

(The purchase order number differs according to

the difference in power supply voltage.)

NSA3439B

(V)

+1.8±0.18

NSA3440B

+2.5±0.25

NSA3441B

+3.0±0.3

NSA3442B

+3.3±0.33

Power supply voltage [V

]

cc16_081201_NZ2016SA_50_e

NZ2016SA-20.000M-NSA3441B Related Products

	NZ2016SA-20.000M-NSA3441B	NZ2016SA-FREQ-NSA3439B	NZ2016SA-20.000M-NSA3442B	NZ2016SA-20.000M-NSA3440B	NZ2016SA-1.500M-NSA3440B	NZ2016SA-FREQ-NSA3440B	NZ2016SA-80.000M-NSA3442B	NZ2016SA-80.000M-NSA3439B
Description	CMOS Output Clock Oscillator, 20MHz Nom, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 1.5MHz Min, 80MHz Max, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 20MHz Nom, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 20MHz Nom, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 1.5MHz Nom, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 1.5MHz Min, 80MHz Max, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 80MHz Nom, ROHS COMPLIANT PACKAGE-4	CMOS Output Clock Oscillator, 80MHz Nom, ROHS COMPLIANT PACKAGE-4
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	NDK	NDK	NDK	NDK	NDK	NDK	NDK	NDK
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
maximum descent time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	50%	50%	50%	50%	50%	50%	50%	50%
Manufacturer's serial number	NZ2016SA	NZ2016SA	NZ2016SA	NZ2016SA	NZ2016SA	NZ2016SA	NZ2016SA	NZ2016SA
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
physical size	2.0mm x 1.6mm x 0.7mm	2.0mm x 1.6mm x 0.7mm	2.0mm x 1.6mm x 0.7mm	2.0mm x 1.6mm x 0.7mm	2.0mm x 1.6mm x 0.7mm	2.0mm x 1.6mm x 0.7mm	2.0mm x 1.6mm x 0.7mm	2.0mm x 1.6mm x 0.7mm
longest rise time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Maximum supply voltage	3.3 V	1.98 V	3.63 V	2.75 V	2.75 V	2.75 V	3.63 V	1.98 V
Minimum supply voltage	2.7 V	1.62 V	2.97 V	2.25 V	2.25 V	2.25 V	2.97 V	1.62 V
Nominal supply voltage	3 V	1.8 V	3.3 V	2.5 V	2.5 V	2.5 V	3.3 V	1.8 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %
Nominal operating frequency	20 MHz	-	20 MHz	20 MHz	1.5 MHz	-	80 MHz	80 MHz
