U3810BM
Multi Standard Feature Phone Integrated Circuit
Description
The U3810BM multi-standard feature phone circuit is
designed to be used with a microcontroller using a 2-wire
serial bus. It performs all speech and line interface
functions required in an electronic telephone set: the
ringing function with switching regulator and melody
generator, the DTMF dialling, the loudhearing with
antilarsen and antidistortion systems, a power supply, a
clock and a reset for the microcontroller. Transmit, receive
and loudhearing gains control / AGC range / DTMF
frequencies, pre-emphasis and level / melody generator,
and mutes are programmable through the serial bus.

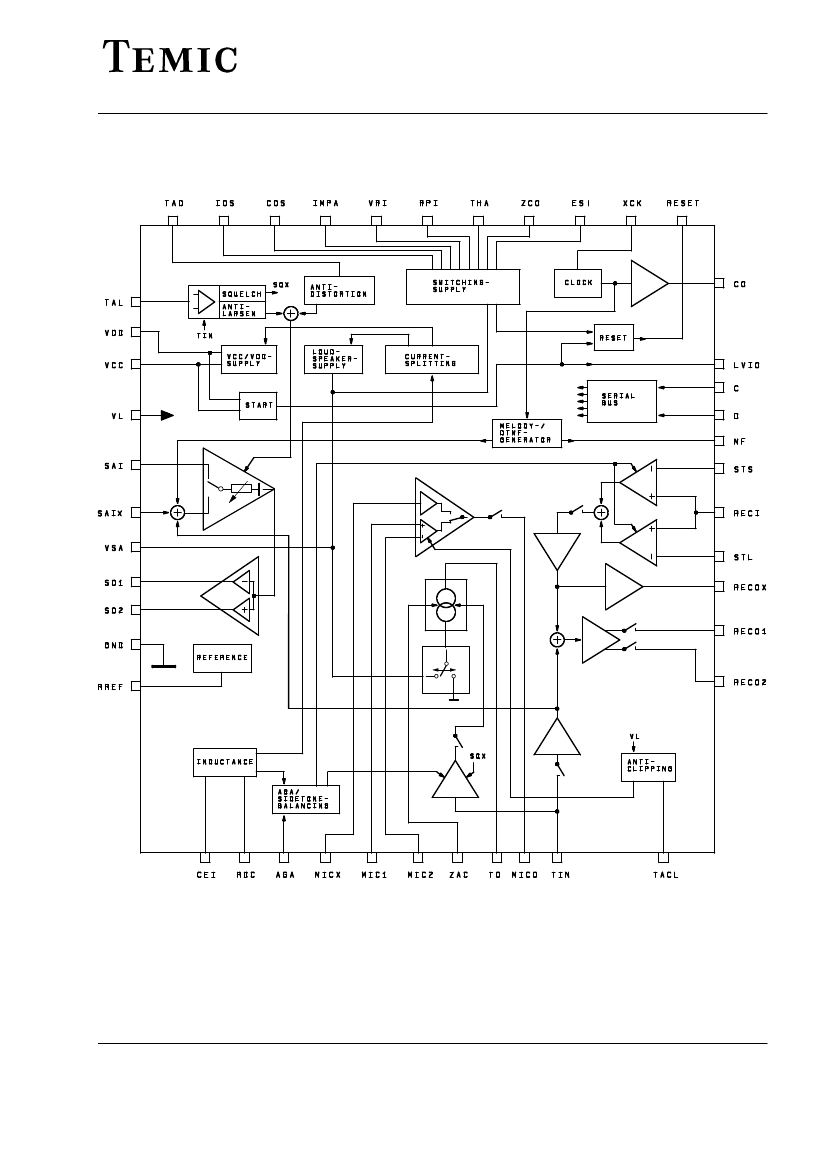

Block diagramm
Speech
circuit
Serial bus
Loudhearing
LH
and
Tone ringing
DTMF
dialer
Tone
ringer
MC
with
EEPROM
93 7600 e
Figure 1
Applications
D
Feature phones
D
Answering machines
D
Fax machines
Benefits
D
Complete system integration of analog signal
processing and digital control circuitry
D
One IC for various PTT standards, e.g. programmable
specification via
m
C
D
Only three low-cost transducers needed (instead of
four)
Rev. A1: 19.01.1996
1 (31)
U3810BM
Features
D
Slope of DC characteristics adjustable by an external
resistor
TELEFUNKEN Semiconductors
D
Loudhearing gain programmable in eight steps of 4 dB,
using the serial bus, or linearly adjusted, using a
potentiometer
D
Gain of transmit and receive amplifiers automatically
adjusted by line length control
D
Anti-larsen system efficiency is increased when
inhibiting squelch
D
Regulation range adjustable by the serial bus
D
Possibility of fixed gain (PABX)
D
Sidetone balancing system adjustable with line length
or by the serial bus
D
Loudhearing anti-distortion system by automatic gain
control versus available current and voltage
D
Dynamic
components
impedance
adjustable
by
external
D
Switching regulator in ringing phase
D
Input ringing detection, threshold and impedance
adjustable with external resistors
D
D
D
D
D
Stabilized power supply for peripherals
Confidence level during dialling
+6 dB possibility on second stage transmit gain
Transmit and receive gains adjustable by serial bus
Extra transmit input for handsfree and answering
machine purpose
D
Ringing zero crossing information for external
microprocessor
D
Ringing programmable gain in eight steps of 4 dB using
the serial bus
D
Melody generator, with 30 frequencies in steps of semi
tones, driven by serial bus
D
+6 dB possibility on receive gain
D
Receive amplifier for dynamic or piezo-electric
earpieces
D
Internal speed-up circuit permits a faster charge of
VDD and VCC capacitor
D
DTMF dialer driven by serial bus, in particular level
and pre-emphasis adjustment
D
Extra receive output for handsfree purpose
D
High impedance microphone inputs suitable for
dynamic, magnetic,
microphone
dynamic
range
(anti-clipping)
piezo-electric
or
electret
D
Ability to transmit a confidence tone in speech mode
using melody generator frequencies
D
Five independent mutes driven by serial bus (two in
transmission, two in reception, one for the transmit /
receive loop)
D
Distortion of line signal and sidetone prevented by
limitation
in
transmission
D
Standard low-cost ceramic 455 kHz / clock output for
the microcontroller
D
Squelch system in transmission prevents “room noise”
are being transmitted, and improves anti-larsen
efficiency (can be inhibited).
D
Extra loudhearing input for answering machines,
handsfree and base station of phones cordless with
loudhearing
2 (31)
