BNC Male Connector Crimp/Solder Attachment
For RG174, RG316, RG188
TECHNICAL DATA SHEET
BNC Male Connector Crimp/Solder Attachment For RG174, RG316, RG188
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Male
MIL-STD-348A
RG174,RG316,RG188
Crimp/Solder
Straight
PE4043
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
Frequency 1
Frequency, MHz
VSWR
DC to 4
50
500
1,500
DC to 1,000
1.3:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
-65 to +165
1.22 [30.99]
0.571 [15]
0.027 [12.25]
BNC Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/bnc-male-standard-rg174-rg316-rg188-connector-pe4043-p.aspx
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
BNC Male Connector Crimp/Solder Attachment For RG174, RG316, RG188 PE4043
PE4043 REV
1
BNC Male Connector Crimp/Solder Attachment
For RG174, RG316, RG188
TECHNICAL DATA SHEET
PE4043
BNC Male Connector Crimp/Solder Attachment For RG174, RG316, RG188 from Pasternack Enterprises has same day
shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF,
microwave and fiber optic products.
PE4043 REV
2
PE4043

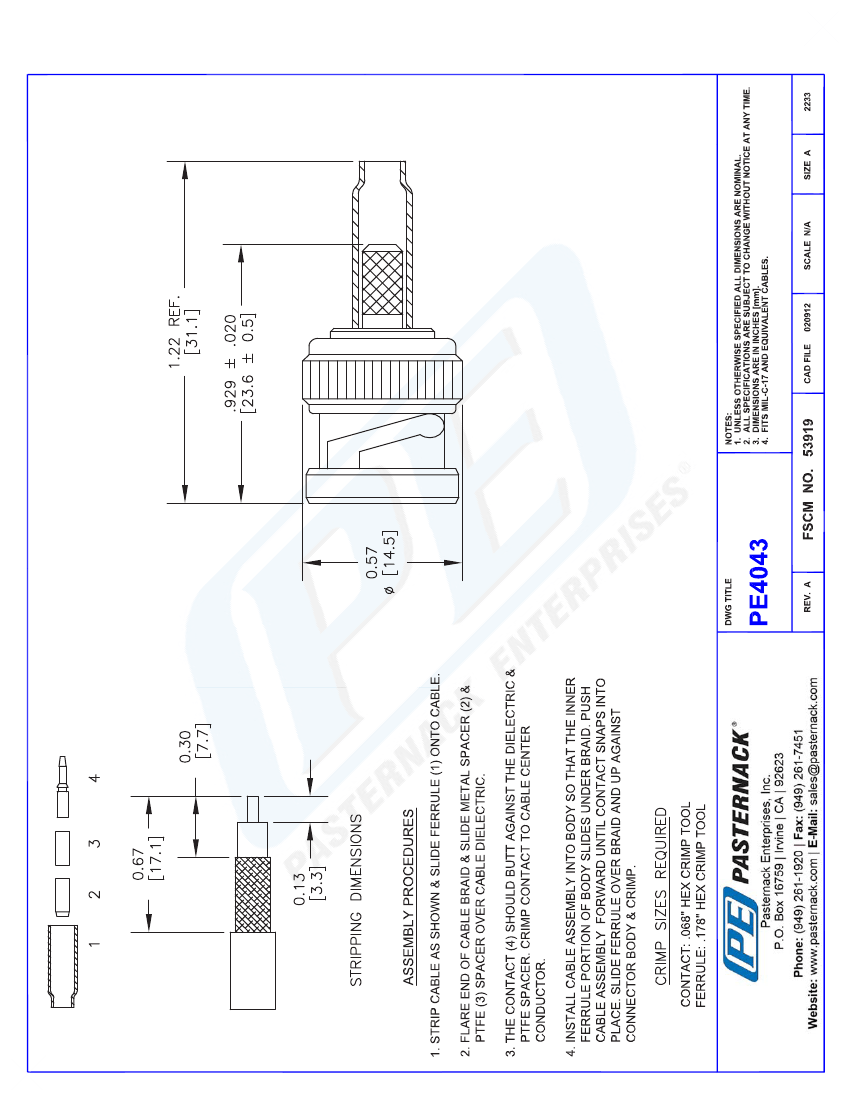

CAD Drawing
BNC Male Connector Crimp/Solder Attachment For RG174, RG316, RG188
© 2012 Pasternack Enterprises All Rights Reserved
PE4043 REV
3
