75 Ohm BNC Female Connector Crimp/
Solder Attachment For RG59
TECHNICAL DATA SHEET
75 Ohm BNC Female Connector Crimp/Solder Attachment For RG59
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Female
RG59
Crimp/Solder
Straight
PE4614
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.426 [36.22]
0.57 [14.48]
0.034 [15.42]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
BNC Female
Brass, Gold
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
75 Ohm BNC Female Connector Crimp/Solder Attachment For RG59 from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm BNC Female Connector Crimp/Solder Attachment For RG59 PE4614
URL:
http://www.pasternack.com/bnc-female-standard-rg59-connector-pe4614-p.aspx
PE4614 REV
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE4614

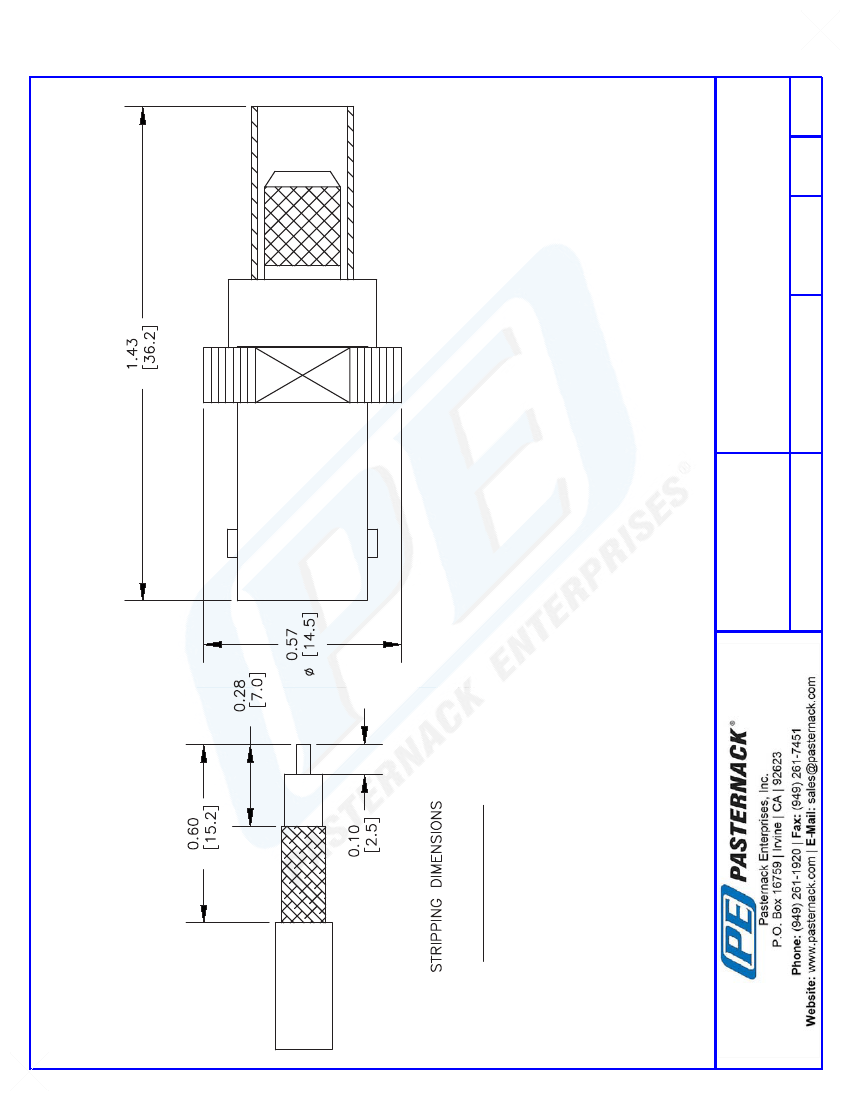

CAD Drawing
75 Ohm BNC Female Connector Crimp/Solder Attachment For RG59
PE4614 REV
CRIMP SIZE REQUIRED
CONTACT: .068" HEX CRIMP TOOL
FERRULE: .255" HEX CRIMP TOOL
PE4614
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
062902
SCALE N/A
SIZE A
XXXX
2
