UT54ACS244-PQCR datasheet, PDF

UT54ACS244-PQCR: DescriptionBus Driver, 2-Func, 4-Bit, True Output, CMOS, CDIP20,; Categorylogic logic; File Size258KB，6 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/

Download Datasheet Parametric View All

UT54ACS244-PQCR Overview

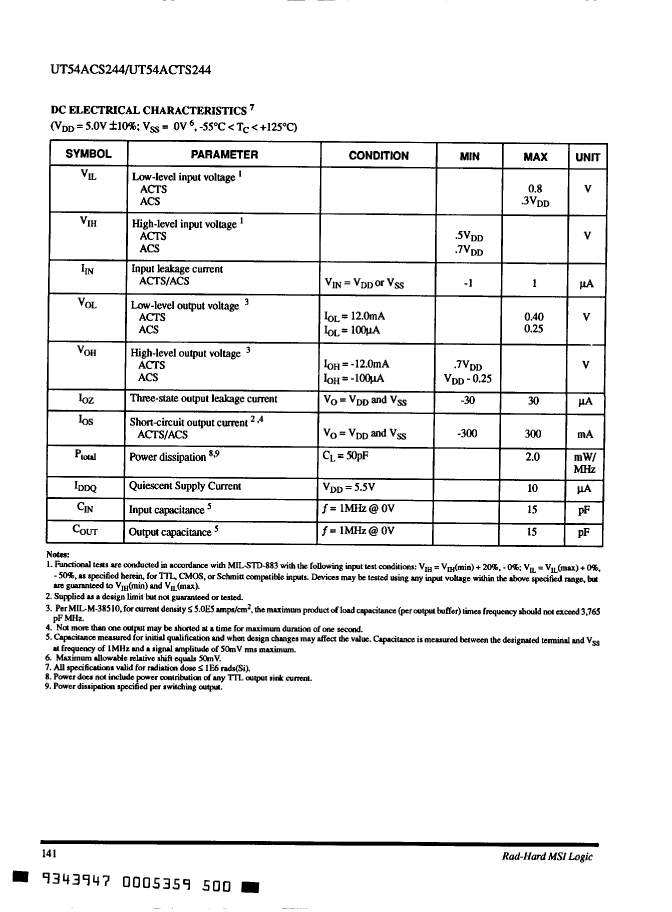

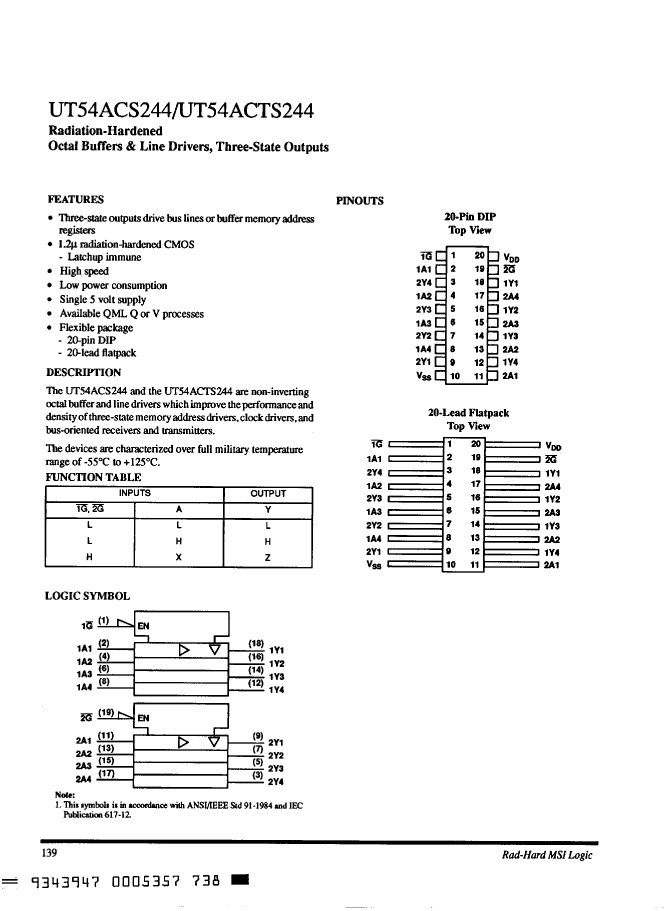

Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CDIP20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Aeroflex
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.0001 A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE

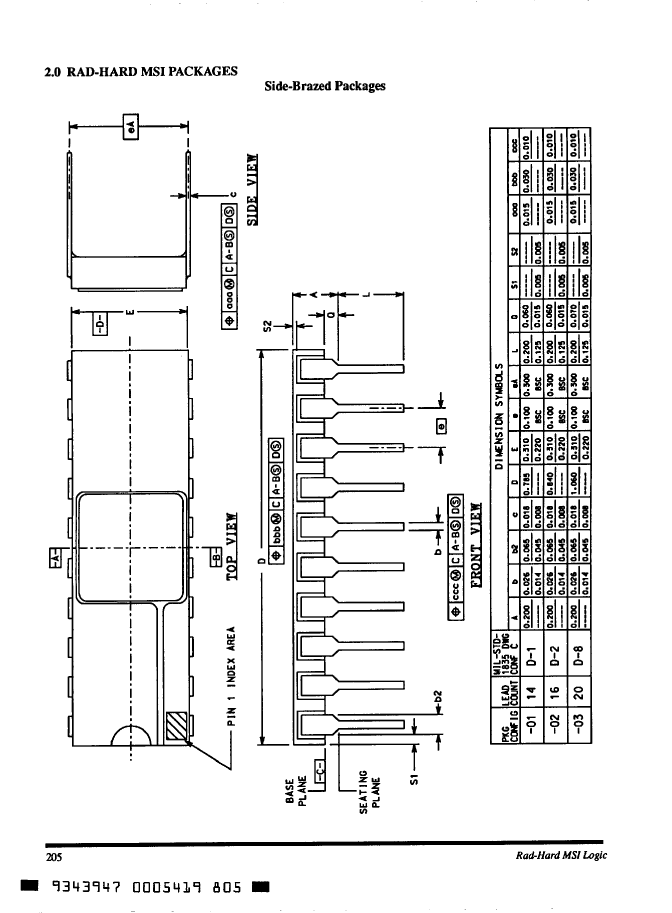

Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V

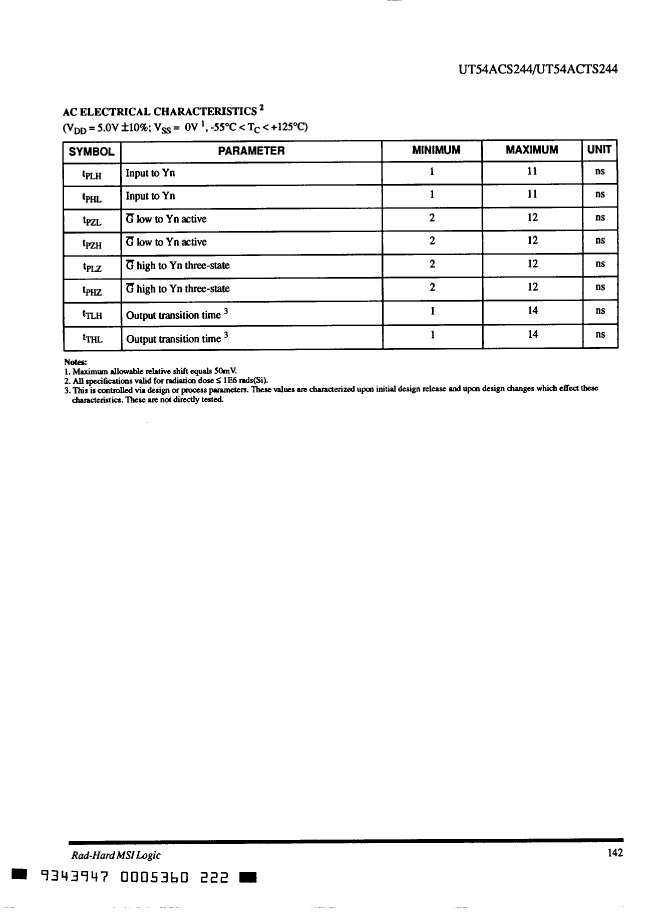

Prop。Delay @ Nom-Sup	11 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

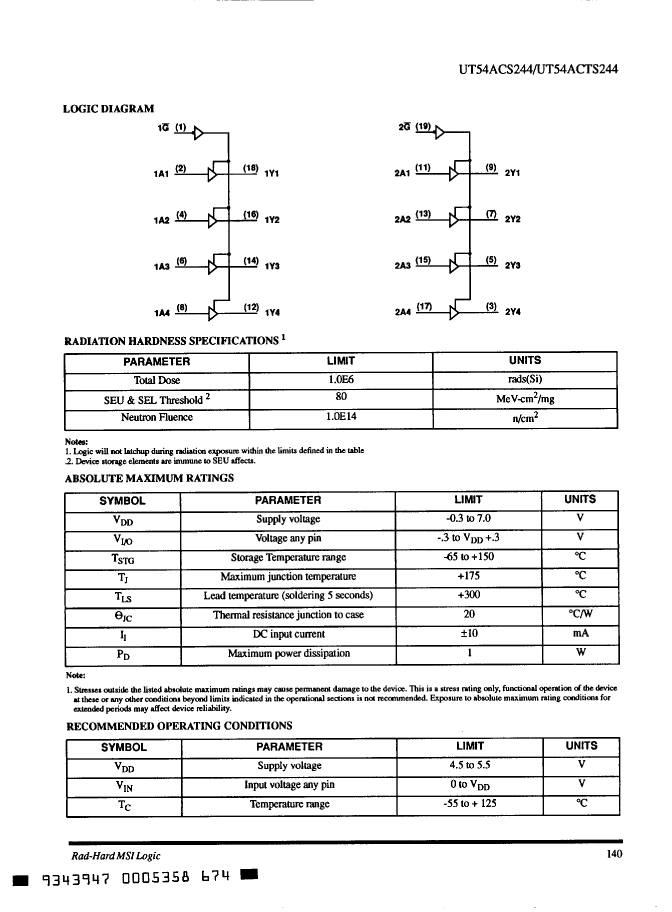

total dose	100k Rad(Si) V
