PE4004: DescriptionSMA Female Connector Solder Attachment 2 Hole Flange Solder Cup Terminal, .481 inch Hole Spacing; CategoryThe connector The connector; File Size247KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet Parametric View All

PE4004 Overview

SMA Female Connector Solder Attachment 2 Hole Flange Solder Cup Terminal, .481 inch Hole Spacing

PE4004 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	RF SMA CONNECTOR
Manufacturer's serial number	PE4004
Base Number Matches	1

Preview

Download Datasheet

View All

SMA Female Connector Solder Attachment 2 Hole

Flange Solder Cup Terminal, .481 inch Hole Spacing

TECHNICAL DATA SHEET

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

Mount Method

SMA Female

MIL-STD-348

Solder Cup

Solder

Straight

2 Hole Flange

PE4004

SMA Female Connector Solder Attachment 2 Hole Flange Solder Cup Terminal, .481 inch Hole Spacing

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum VSWR

DC to 18

1.25:1

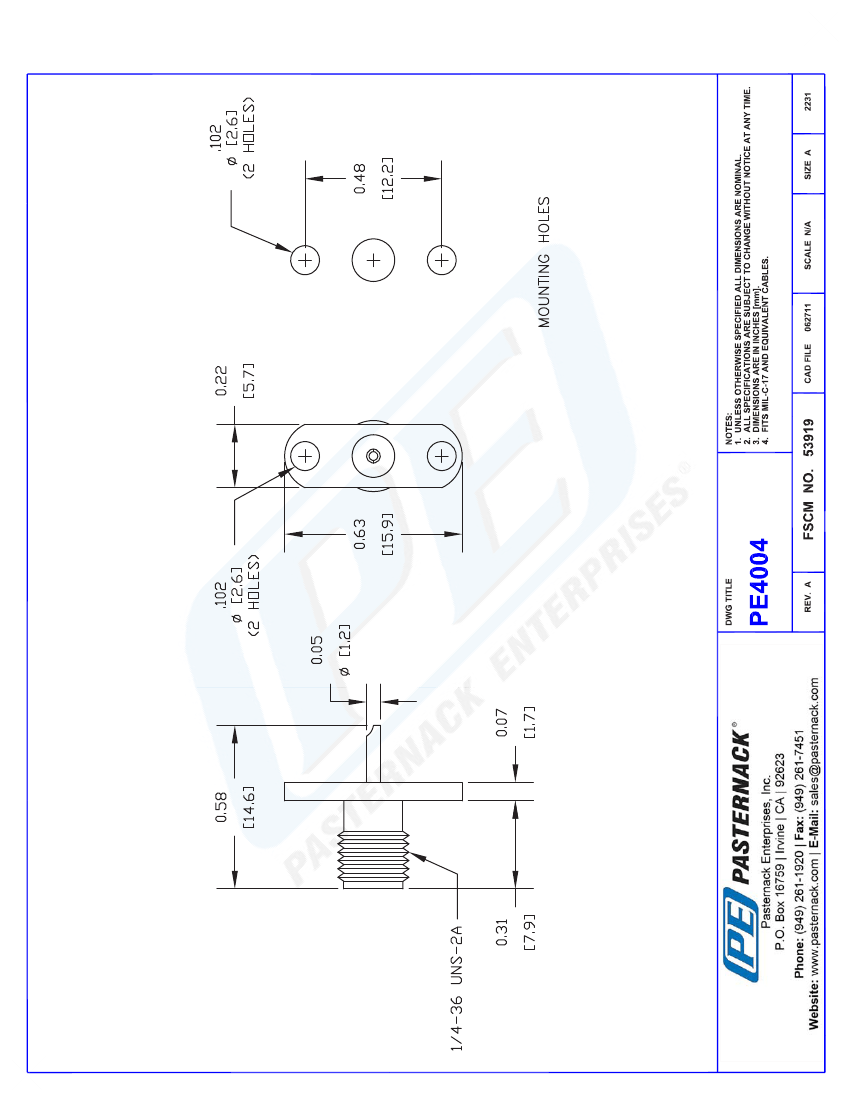

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

Height, in [mm]

0.575 [14.61]

0.233 [6]

0.625 [15.88]

0.005 [2.27]

SMA Female

Beryllium Copper, Gold

MIL-G-45204, Type II, Class 2

Stainless Steel, Gold

MIL-G-45204

Teflon

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/sma-female-standard-solder-cup-terminal-connector-pe4004-p.aspx

SMA Female Connector Solder Attachment 2 Hole Flange Solder Cup Terminal, .481 inch Hole Spacing from Pasternack

Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s

broadest selection of RF, microwave and fiber optic products.

PE4004 REV
