GXR2W472YE16T: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 4700uF, CHASSIS MOUNT, CAN; CategoryPassive components capacitor; File Size99KB，1 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

GXR2W472YE16T Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 4700uF, CHASSIS MOUNT, CAN

GXR2W472YE16T Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	16 mΩ
Manufacturer's serial number	GXR
Installation features	CHASSIS MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	17000 mA
surface mount	NO
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

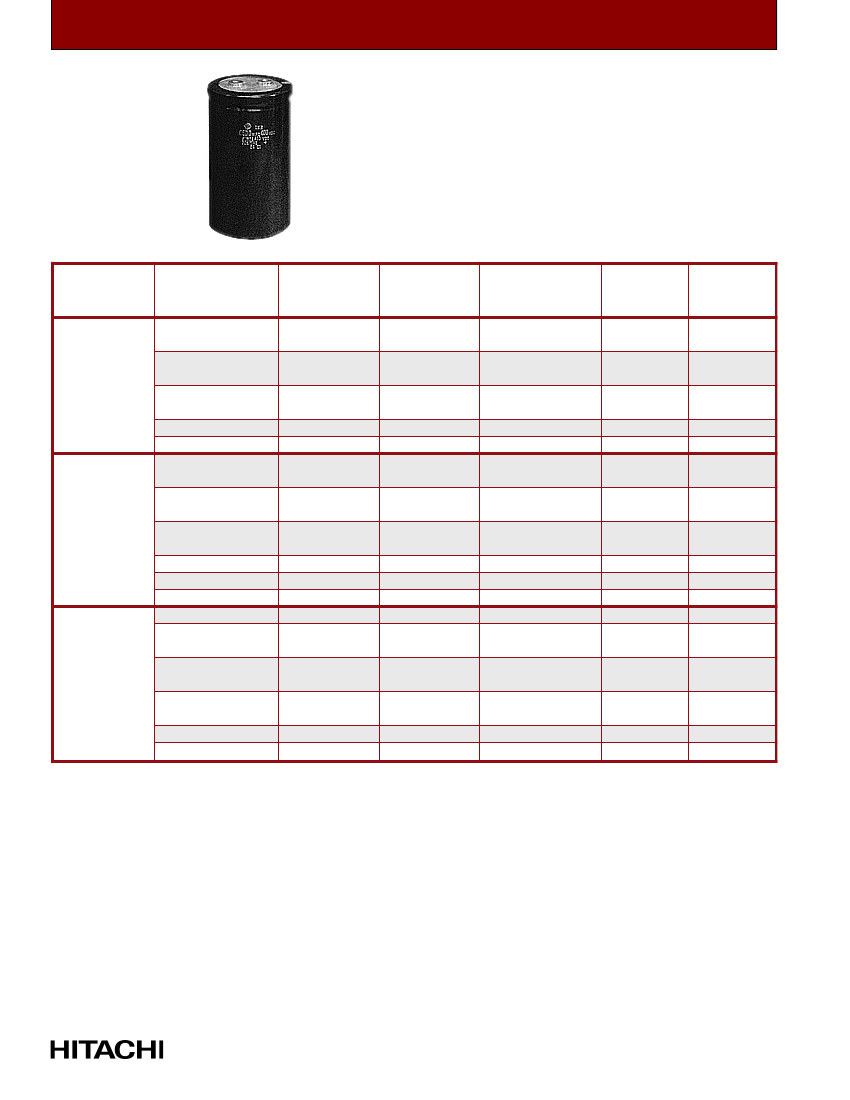

ALUMINUM ELECTROLYTIC CAPACITORS

GXR Series

•Life rating to 5,000 hours at 85°C

•Temperature range –40°C to +105°C

Rated

Voltage

(WVDC)

Part

Number

GXR2V472YE12T

GXR2V472YF11T

GXR2V562YE13T

GXR2V562YF12T

GXR2V682YE16T

GXR2V682YF14T

GXR2V822YF16T

GXR2V103YF16T

GXR2G392YE12T

GXR2G392YF11T

GXR2G472YE13T

GXR2G472YF12T

GXR2G562Y E 1 6 T

GXR2G562YF14T

GXR2G682YF16T

GXR2G822YF16T

GXR2G103YF18T

GXR2W272YE12T

GXR2W332YE13T

GXR2W332YF11T

GXR2W392YE16T

GXR2W392YF12T

GXR2W472YE16T

GXR2W472YF14T

GXR2W562YF16T

GXR2W682YF18T

Capacitance

4,700

5,600

6,800

8,200

10,000

3,900

4,700

5,600

6,800

8,200

10,000

2,700

3,300

3,900

4,700

5,600

6,800

Case Size

ØD x L (mm)

77

90

77

90

77

90

77

90

77

90

77

90

77

90

77

90

77

90

X

121

106

137

121

161

137

161

121

106

137

121

161

137

161

178

121

137

106

161

121

161

137

161

178

Maximum Ripple

Current (A rms)

@105° C,120Hz

15.2

15.7

17.4

18.2

20.5

21.0

24.8

27.4

13.8

14.8

15.9

16.7

18.6

19.1

22.6

24.8

28.3

11.5

13.4

13.1

15.5

15.2

17.0

17.5

20.5

23.3

Maximum

ESR (m

Ω)

15

16

15

13

14

8

17

18

16

17

15

16

13

8

7

26

21

22

19

20

16

18

17

14

Typical

ESL (nH)

35

45

40

50

40

50

35

45

40

45

40

45

50

25

35

45

40

50

40

50

350 Volts

(Code: 2V)

400 Volts

(Code: 2G)

450 Volts

(Code: 2W)

AIC

42

HITACHI AIC / BOSTON AIC • 69 Milk Street • Westborough, MA 01581 • Phone: 508-366-4092 • Fax: 508-366-9164

GXR2W472YE16T Related Products

	GXR2W472YE16T	GXR2G103YF18T	GXR2G562YE16T	GXR2G822YF16T	GXR2G562YF14T	GXR2W272YE12T
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 4700uF, CHASSIS MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 10000uF, CHASSIS MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 5600uF, CHASSIS MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 8200uF, CHASSIS MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 5600uF, CHASSIS MOUNT, CAN	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 2700uF, CHASSIS MOUNT, CAN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	4700 µF	10000 µF	5600 µF	8200 µF	5600 µF	2700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	16 mΩ	7 mΩ	15 mΩ	8 mΩ	16 mΩ	26 mΩ
Manufacturer's serial number	GXR	GXR	GXR	GXR	GXR	GXR
Installation features	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	450 V	400 V	400 V	400 V	400 V	450 V
ripple current	17000 mA	28300 mA	18600 mA	24800 mA	19100 mA	11500 mA
surface mount	NO	NO	NO	NO	NO	NO
Terminal shape	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST
