SMA Female Connector Solder Attachment 4 Hole Flange For
PE-SR405AL, PE-SR405FL, RG405, .340 inch Hole Spacing
TECHNICAL DATA SHEET
PE4122
SMA Female Connector Solder Attachment 4 Hole Flange For PE-SR405AL, PE-SR405FL, RG405,
.340 inch Hole Spacing
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMA Female
MIL-STD-348
PE-SR405AL,PE-SR405FL,RG405
Solder/Solder
Straight
4 Hole Flange
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
DC to 18
50
1.25:1
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.5 [12.7]
0.5 [13]
0.5 [12.7]
0.006 [2.72]
SMA Female
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 2
Stainless Steel, Gold
MIL-G-45204
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female Connector Solder Attachment 4 Hole Flange For PE-SR405AL, PE-SR405FL,
RG405, .340 inch Hole Spacing PE4122
PE4122 REV
1
SMA Female Connector Solder Attachment 4 Hole Flange For
PE-SR405AL, PE-SR405FL, RG405, .340 inch Hole Spacing
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4122
SMA Female Connector Solder Attachment 4 Hole Flange For PE-SR405AL, PE-SR405FL, RG405, .340 inch Hole Spacing
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber
optic products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female Connector Solder Attachment 4 Hole Flange For PE-SR405AL, PE-SR405FL,
RG405, .340 inch Hole Spacing PE4122
URL:
http://www.pasternack.com/sma-female-standard-pe-sr405al-pe-sr405fl-rg405-connector-pe4122-p.aspx
PE4122 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE4122

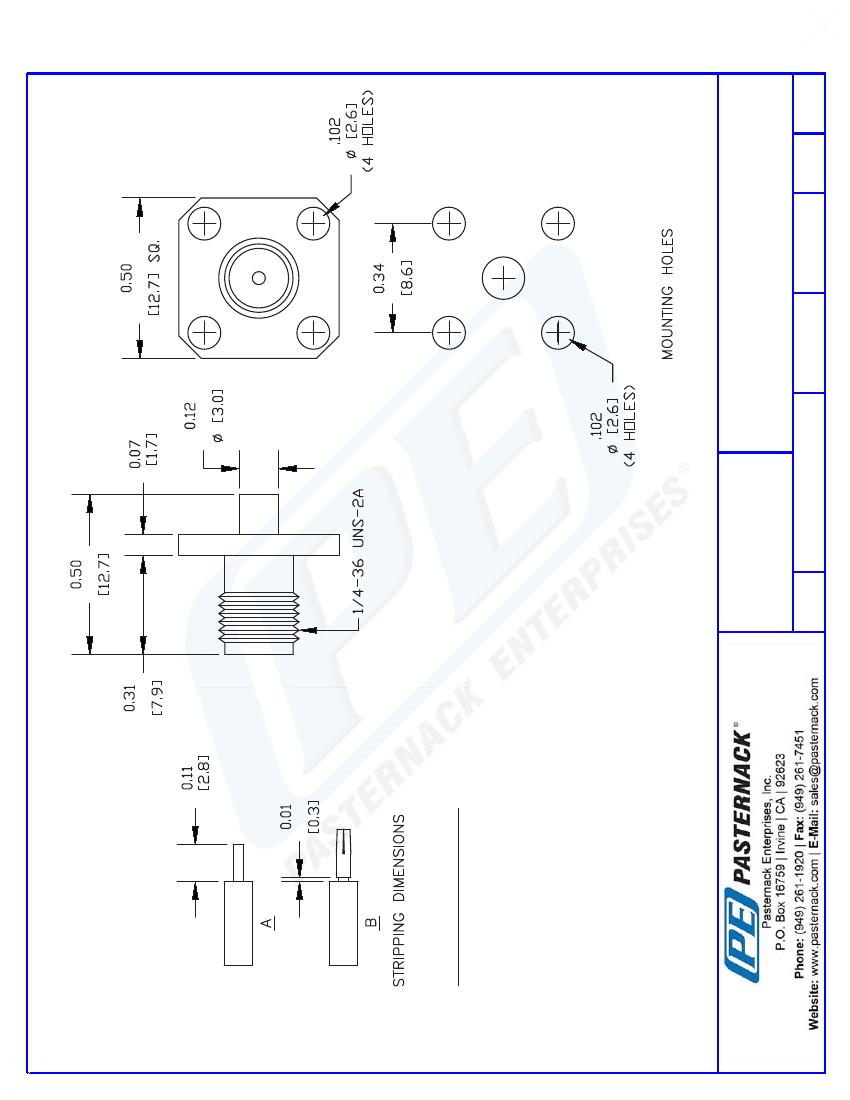

CAD Drawing
SMA Female Connector Solder Attachment 4 Hole Flange For
PE-SR405AL, PE-SR405FL, RG405, .340 inch Hole Spacing
PE4122 REV
ASSEMBLY PROCEDURES
1. STRIP CABLE AS SHOWN IN (A). DO NOT NICK CENTER
CONDUCTOR.
2. SHIM CONTACT AS SHOWN IN (B) & SOLDER CONTACT TO
CENTER CONDUCTOR.
3. INSERT CABLE INTO BODY UNTIL OUTER CONDUCTOR
BOTTOMS OUT. SOLDER OUTER CONDUCTOR TO BODY.
PE4122
REV. A
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
083111
SCALE N/A
SIZE A
2231
3
