TNC Male Connector Clamp/Solder Attachment For RG59, RG62
TECHNICAL DATA SHEET
TNC Male Connector Clamp/Solder Attachment For RG59, RG62
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
TNC Male
MIL-STD-348A
RG59,RG62
Clamp/Solder
Straight
PE4154
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 11
50
500
1,500
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.05 [26.67]
0.591 [15.01]
0.041 [18.6]
TNC Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
TNC Male Connector Clamp/Solder Attachment For RG59, RG62 PE4154
PE4154 REV 01
1
TNC Male Connector Clamp/Solder Attachment For RG59, RG62
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4154
TNC Male Connector Clamp/Solder Attachment For RG59, RG62 from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
TNC Male Connector Clamp/Solder Attachment For RG59, RG62 PE4154
URL:
http://www.pasternack.com/tnc-male-standard-rg59-rg62-connector-pe4154-p.aspx
PE4154 REV 01
2
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
1.
SLIDE CLAMP NUT (1), WASHER (2) & GASKET (3) OVER
CABLE. STRIP CABLE AS SHOWN. DO NOT NICK BRAID
WHILE CUTTING JACKET. TAPER END OF BRAID TO
PERMIT ASSEMBLY OF BRAID CLAMP (4). SLIDE BRAID
CLAMP (4) OVER BRAID & SEAT AGAINST CABLE.
2.
TNC Male Connector Clamp/Solder Attachment For RG59, RG62
PE4154

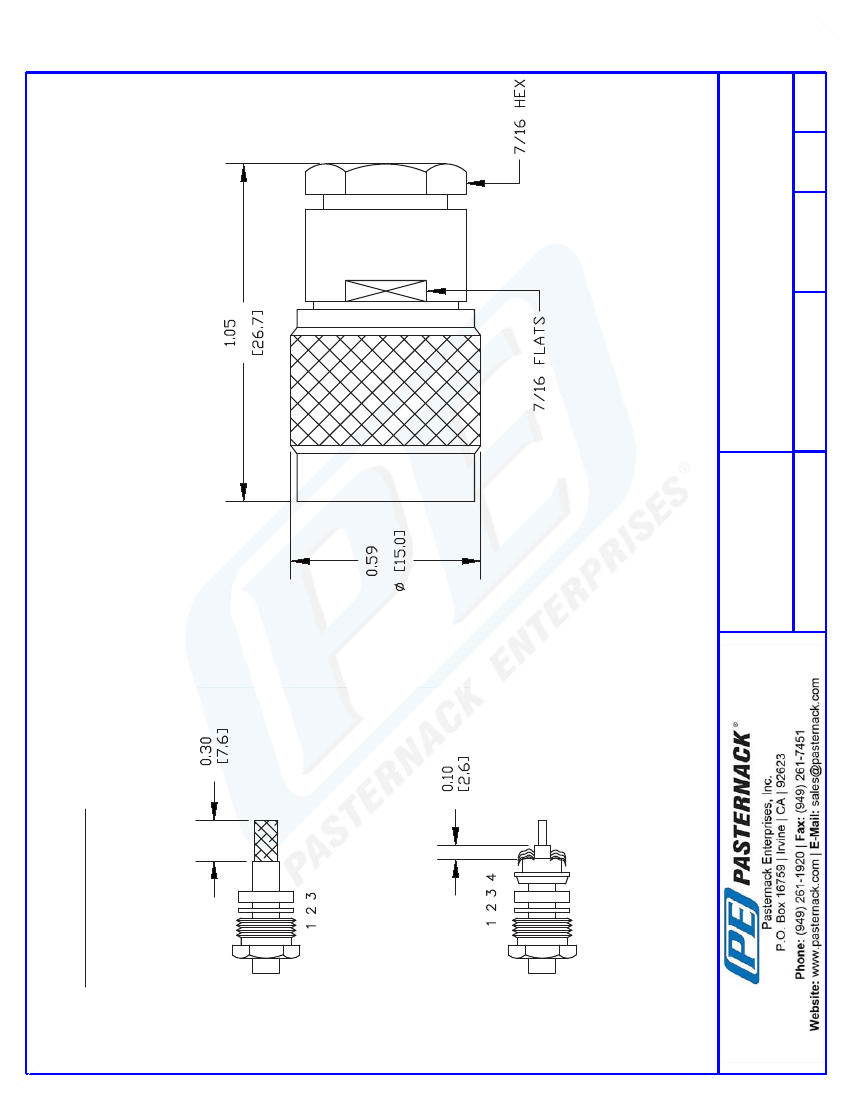

CAD Drawing
FORM BRAID OVER CLAMP NUT (4). TRIM BRAID BACK TO
SHOULDER. CUT DIELECTRIC & CENTER CONDUCTOR TO
DIMENSION SHOWN. DO NOT NICK CENTER CONDUCTOR.
SOLDER CONTACT TO CENTER CONDUCTOR. REMOVE
EXCESS SOLDER. DO NOT OVER HEAT DIELECTRIC.
INSERT CABLE ASSEMBLY INTO BODY & TIGHTEN.
PE4154 REV 01
NOTE: RG62 USES PTFE INSERT.
INSERT PTFE BEFORE CONTACT.
TAPER END FIRST.
PE4154
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
040413-A
SCALE N/A
SIZE A
2233
3
