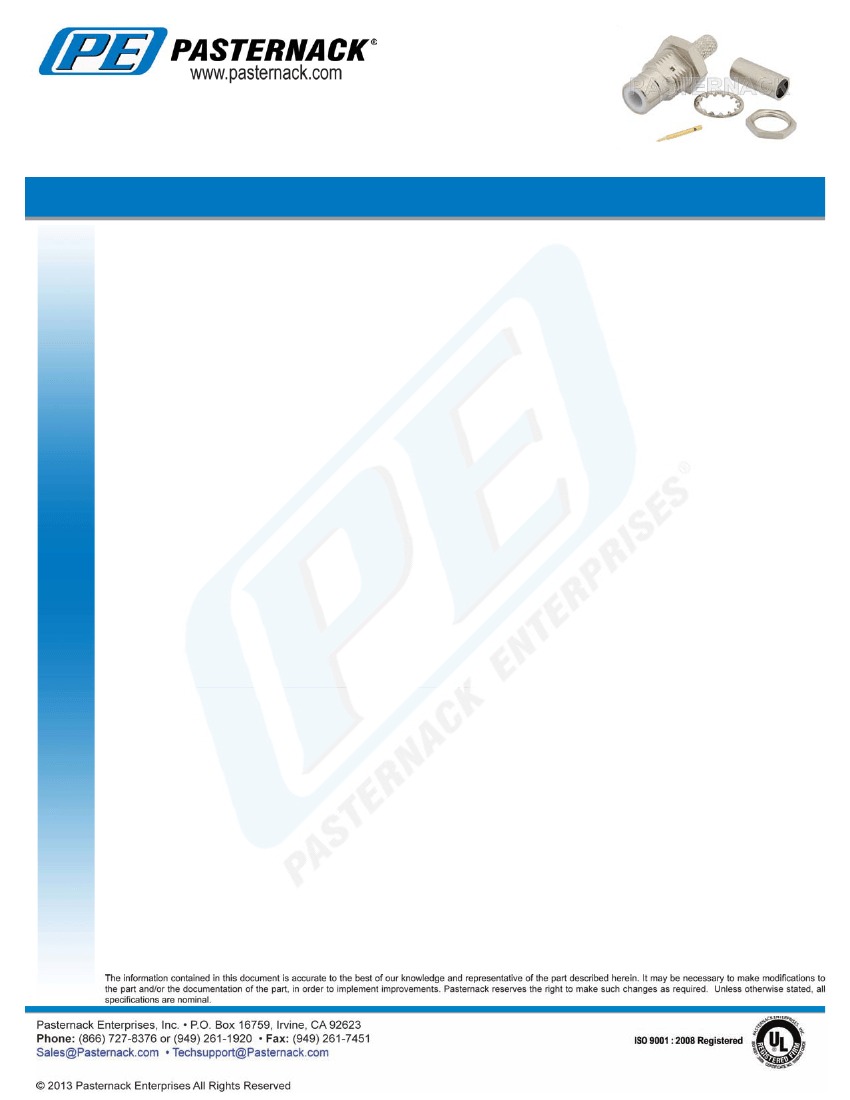

75 Ohm SMB Jack Bulkhead Connector Crimp/Solder
Attachment For RG180, RG195, .285 inch D Hole
TECHNICAL DATA SHEET
PE4165
75 Ohm SMB Jack Bulkhead Connector Crimp/Solder Attachment For RG180, RG195, .285 inch D Hole
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMB Jack
RG180,RG195
Crimp/Solder
Straight
Bulkhead
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.152 [29.26]
0.344 [8.74]
0.013 [5.9]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
SMB Jack
Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
75 Ohm SMB Jack Bulkhead Connector Crimp/Solder Attachment For RG180, RG195, .285 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm SMB Jack Bulkhead Connector Crimp/Solder Attachment For RG180, RG195, .285 inch
D Hole PE4165
URL:
http://www.pasternack.com/smb-jack-standard-rg180-rg195-connector-pe4165-p.aspx
PE4165 REV 01
1
© 2013 Pasternack Enterprises All Rights Reserved

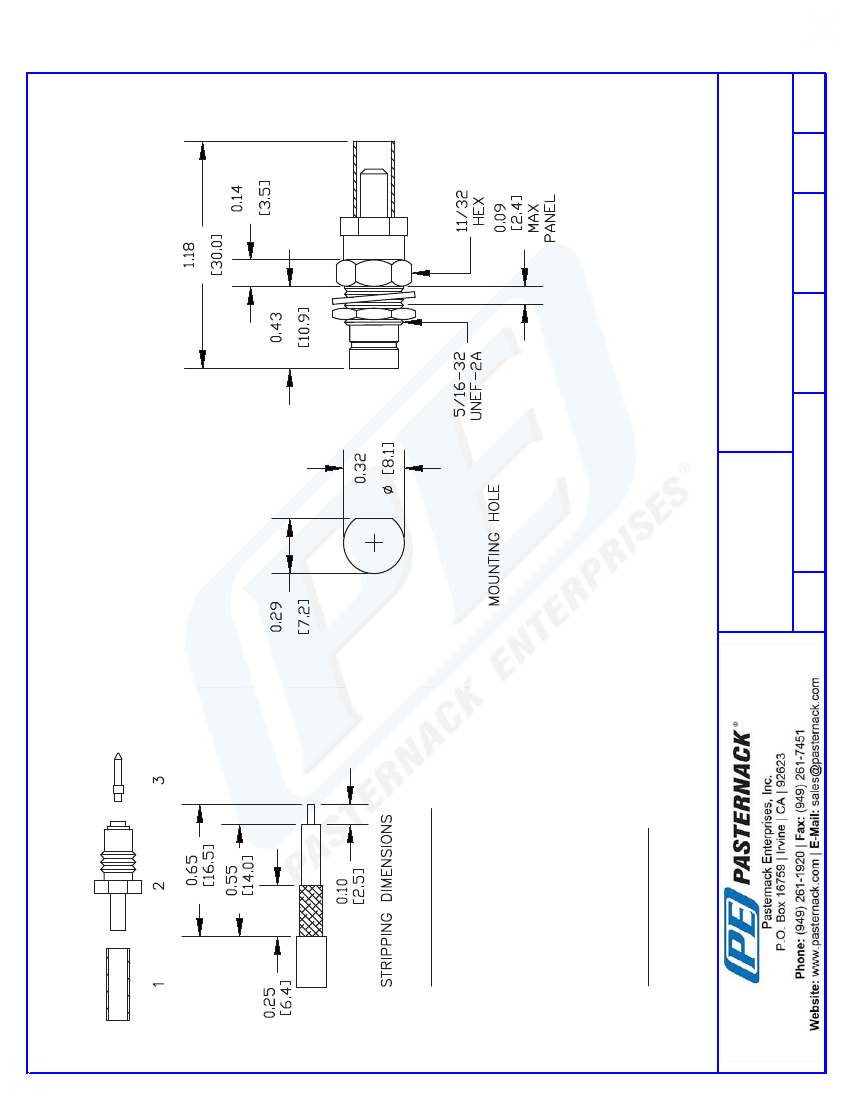

DWG TITLE
PE4165
CAD Drawing
75 Ohm SMB Jack Bulkhead Connector Crimp/Solder
Attachment For RG180, RG195, .285 inch D Hole
PE4165 REV 01
ASSEMBLY PROCEDURES
1. STRIP CABLE AS SHOWN & SLIDE FERRULE (1) ONTO CABLE.
TIN CENTER CONDUCTOR.
2. ADD CRIMP NUT (2) SLIDING EXTENSION BETWEEN BRAID &
DIELECTRIC. SLIDE FERRULE (1) OVER BRAID & AGAINST
CRIMP NUT (2).
3. SOLDER CONTACT (3) TO CENTER CONDUCTOR.
4. THREAD CRIMP NUT (2) INTO BODY & TIGHTEN.
CRIMP FERRULE (1).
CRIMP SIZE REQUIRED
CONTACT: SOLDER
FERRULE: .178" HEX CRIMP TOOL
PE4165
REV. -
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
042309
SCALE N/A
SIZE A
147
2
