SMB Jack Bulkhead Connector Solder Attachment
Solder Cup Terminal, .177 inch D Hole, Front Mount
TECHNICAL DATA SHEET
Configuration
PE4170
SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .177 inch D Hole, Front Mount
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMB Jack
MIL-STD-348A
Solder Cup
Solder
Straight
Bulkhead
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 4
50
1.3:1
335
1,000
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
0.606 [15.39]
0.25 [6]
0.004 [1.81]
SMB Jack
Brass, Gold
30µ in. minimum
Brass, Gold
30µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/smb-jack-standard-solder-cup-terminal-connector-pe4170-p.aspx
SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .177 inch D Hole, Front Mount from Pasternack
Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s
broadest selection of RF, microwave and fiber optic products.
PE4170 REV
1
SMB Jack Bulkhead Connector Solder Attachment Solder
Cup Terminal, .177 inch D Hole, Front Mount
PE4170

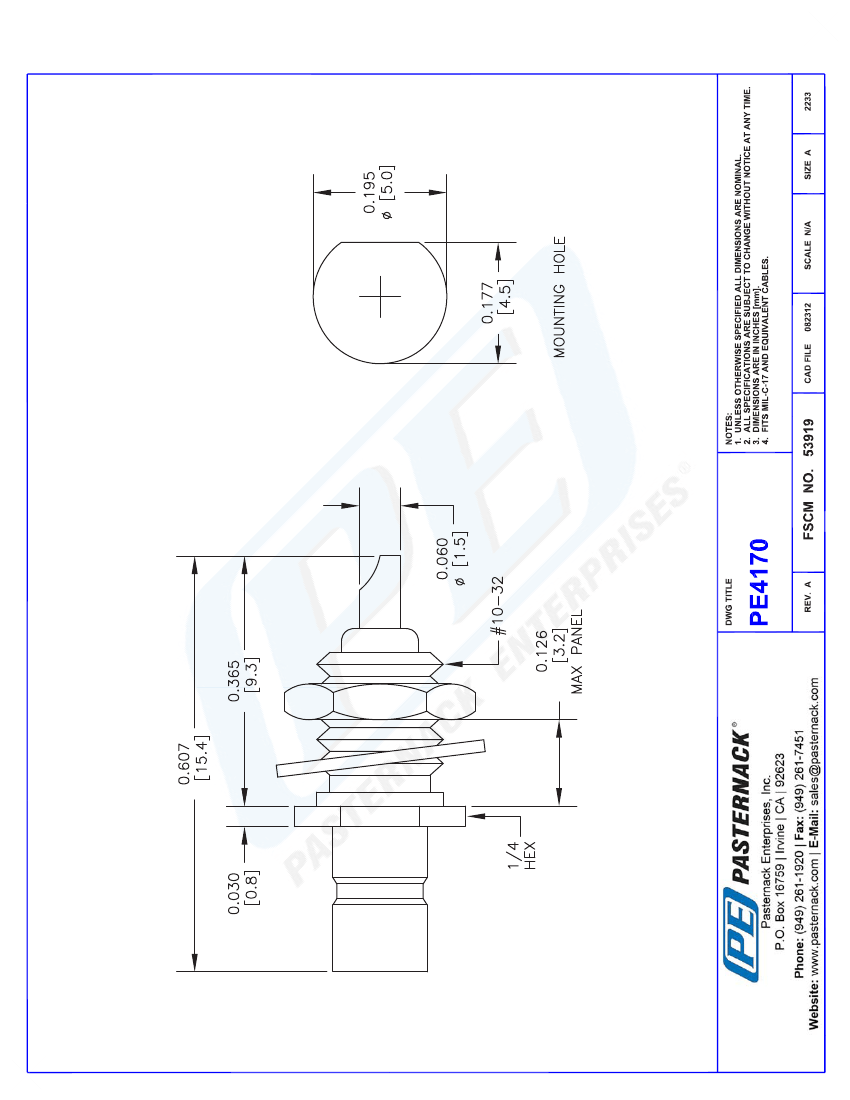

CAD Drawing
© 2012 Pasternack Enterprises All Rights Reserved
PE4170 REV
2
